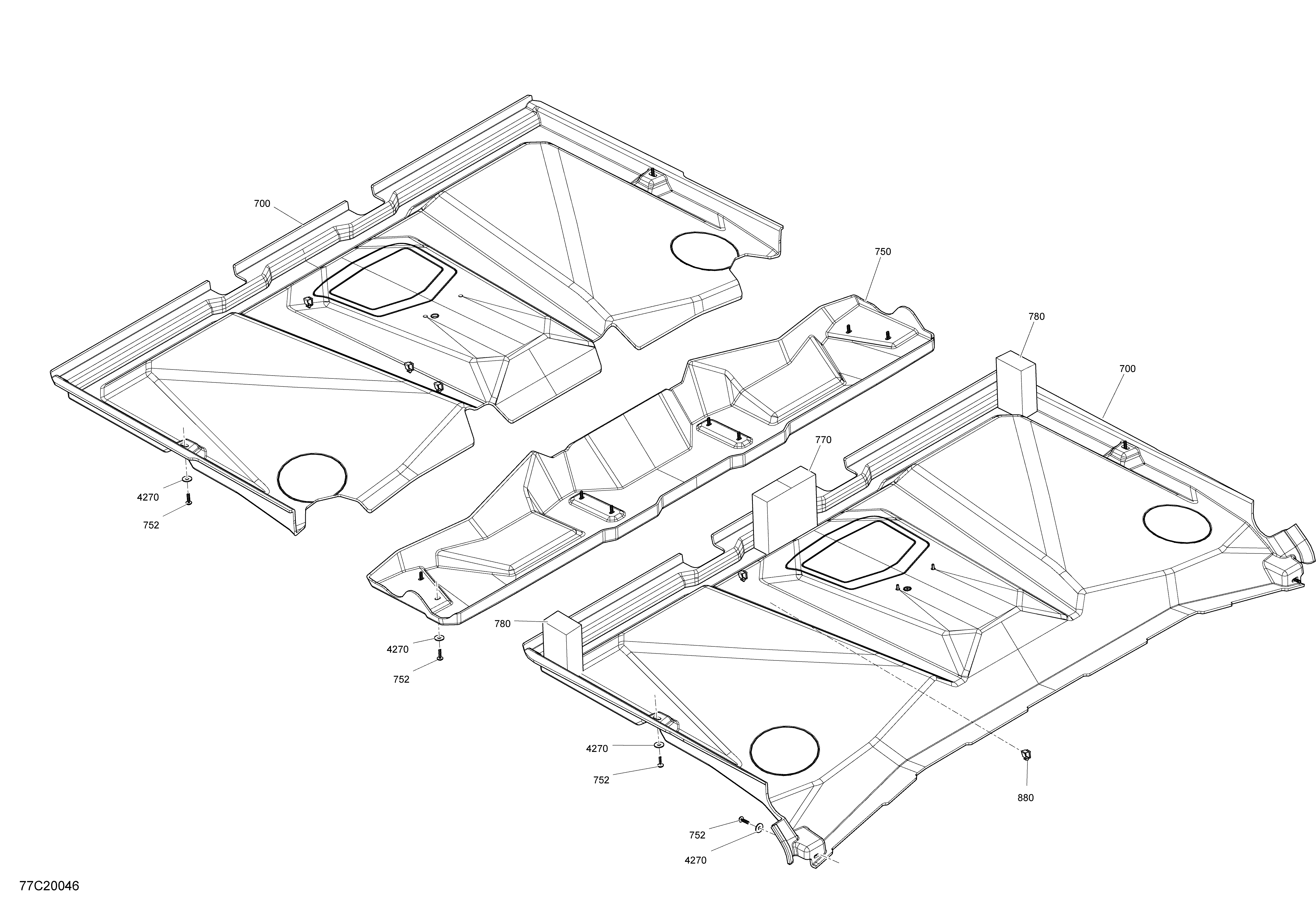

09- Cab - Roof Liner - MAX для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
700715006391 Roof Liner KitRoof Liner Kit
-
750705800132 Roof Liner SupportRoof Liner Support
-
752250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
770705800221 Roof Liner SpacerRoof Liner Spacer
-
780705800255 Roof Liner SpacerRoof Liner Spacer
-
880414227300 ClipClip
-
4270234062670 Flat Washer, StainlessFlat Washer, Stainless
