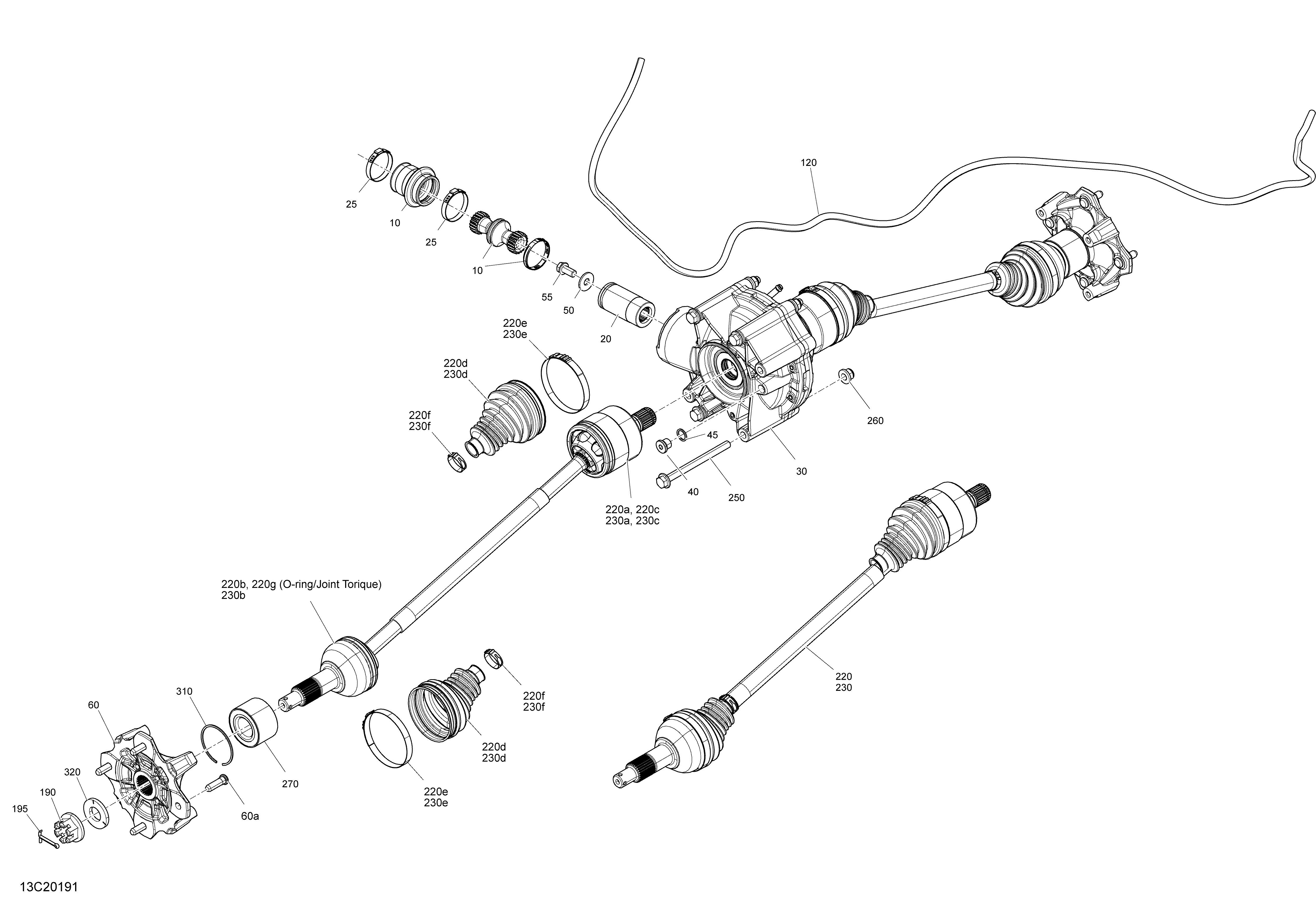

08- Rear Drive - Common Parts для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
10705401950 Drive Axle Ass'yDrive Axle Ass'y
-
20705401969 Coupling SleeveCoupling Sleeve
-
25293650138 Oetiker Gear ClampOetiker Gear Clamp
-
30703501019 Final Drive UnitFinal Drive Unit
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50250200014 Flat Washer M10Flat Washer M10
-
55250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
60705502338 Wheel Hub. Includes 60 to 60aWheel Hub. Includes 60 to 60a
-
60a250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
120293830193 Polyurethane HosePolyurethane Hose
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
220705502642 Half Shaft. Includes 220 to 220gHalf Shaft. Includes 220 to 220g
-
220a715900429 CV JointCV Joint
-
220b715900444 Plunging JointPlunging Joint
-
220c705501781 CirclipCirclip
-
220d705501864 Boot Kit. Includes 220d to 220fBoot Kit. Includes 220d to 220f
-
220e715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
220f715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
220g715900579 O-RingO-Ring
-
250230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
260233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
