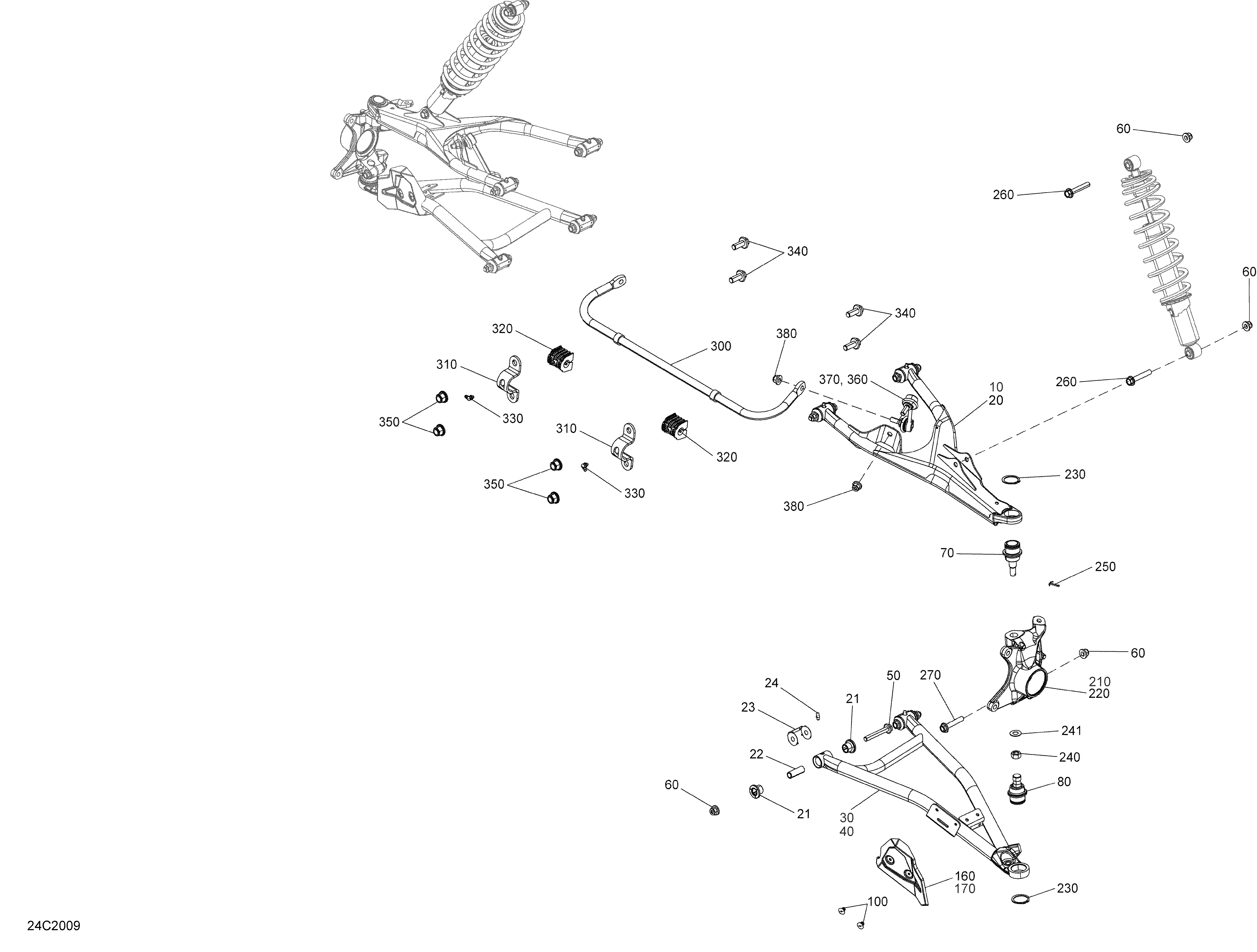

07- Suspension, Front - System - CAB для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
10706202977 LH Front Upper Suspension ArmLH Front Upper Suspension Arm
-
20706202978 RH Front Upper Suspension ArmRH Front Upper Suspension Arm
-
21703500875 Bushing KitBushing Kit
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
30706202979 LH Front Lower Suspension ArmLH Front Lower Suspension Arm
-
40706202980 RH Front Lower Suspension ArmRH Front Lower Suspension Arm
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706203096 LH Front KnuckleLH Front Knuckle
-
220706203097 RH Front KnuckleRH Front Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
300706203167 Sway-BarSway-Bar
-
310706203437 ClampClamp
-
320706002535 CushionCushion
-
330293550056 Grease Fitting 90°Grease Fitting 90°
-
340250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
350233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
360706202538 LH Stabilizer Bar LinkLH Stabilizer Bar Link
-
370706202539 RH Stabilizer Bar LinkRH Stabilizer Bar Link
-
380233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
