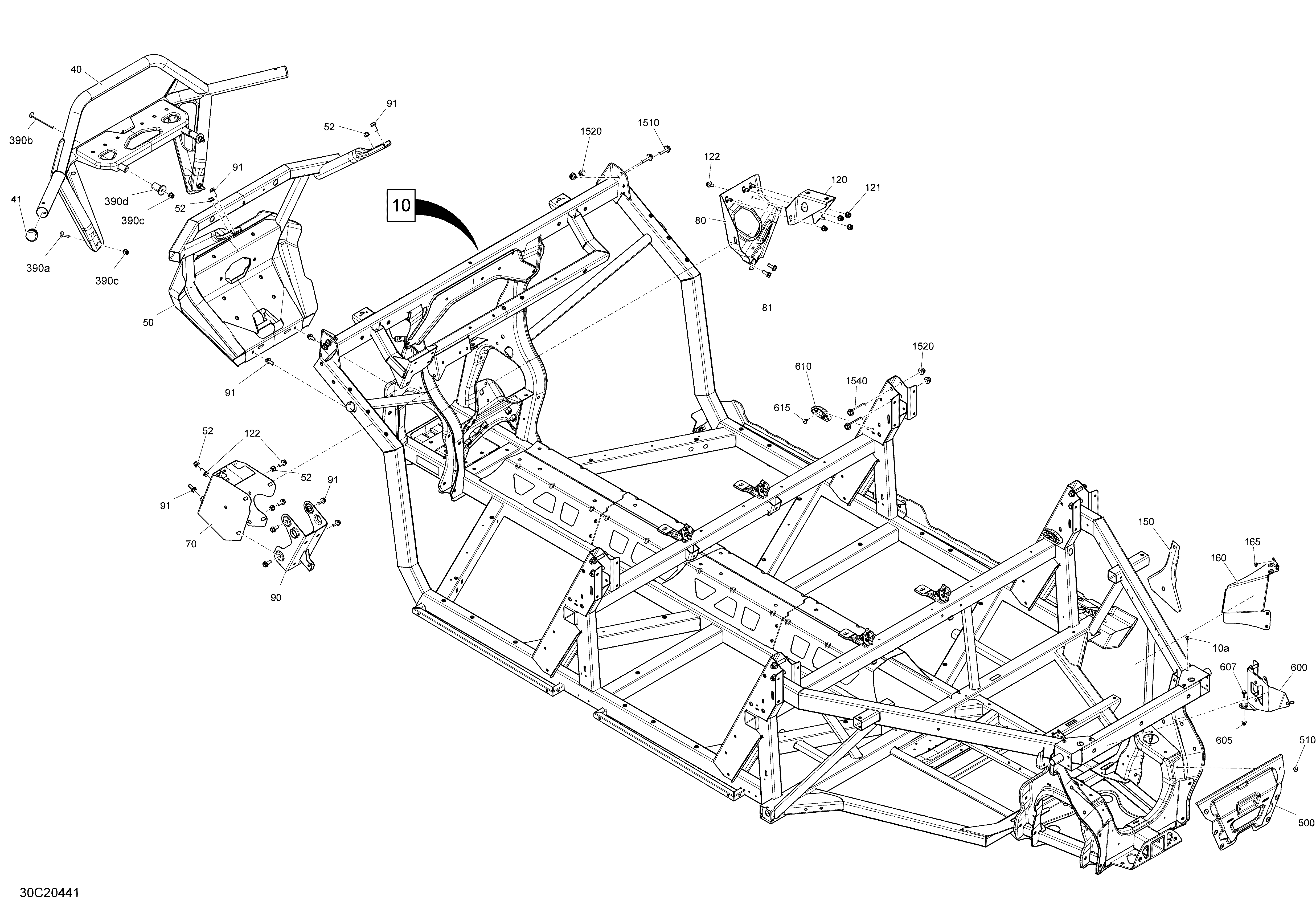

09- Frame - CAB для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
10715006682 Black, Frame KitBlack, Frame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40715005754 Deep Black, Front BumperDeep Black, Front Bumper
-
41705202455 CapCap
-
50705207588 Deep Black, Front BumperDeep Black, Front Bumper
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705208747 Module SupportModule Support
-
80705208741 Power Steering SupportPower Steering Support
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
120705208742 SupportSupport
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150705014849 Heat ShieldHeat Shield
-
160707002709 Heat ShieldHeat Shield
-
165293150092 Pop Rivet 3/16”Pop Rivet 3/16”
-
390a250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
390b250001106 Torx Truss M/S M8 x X 100Torx Truss M/S M8 x X 100
-
390c233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
390d705206398 Bumper SpacerBumper Spacer
-
500705207753 Rear Chassis ReinforcementRear Chassis Reinforcement
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600710006644 Voltage Regulator SupportVoltage Regulator Support
-
605233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
607207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
610705208203 SpacerSpacer
-
615293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1540207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
