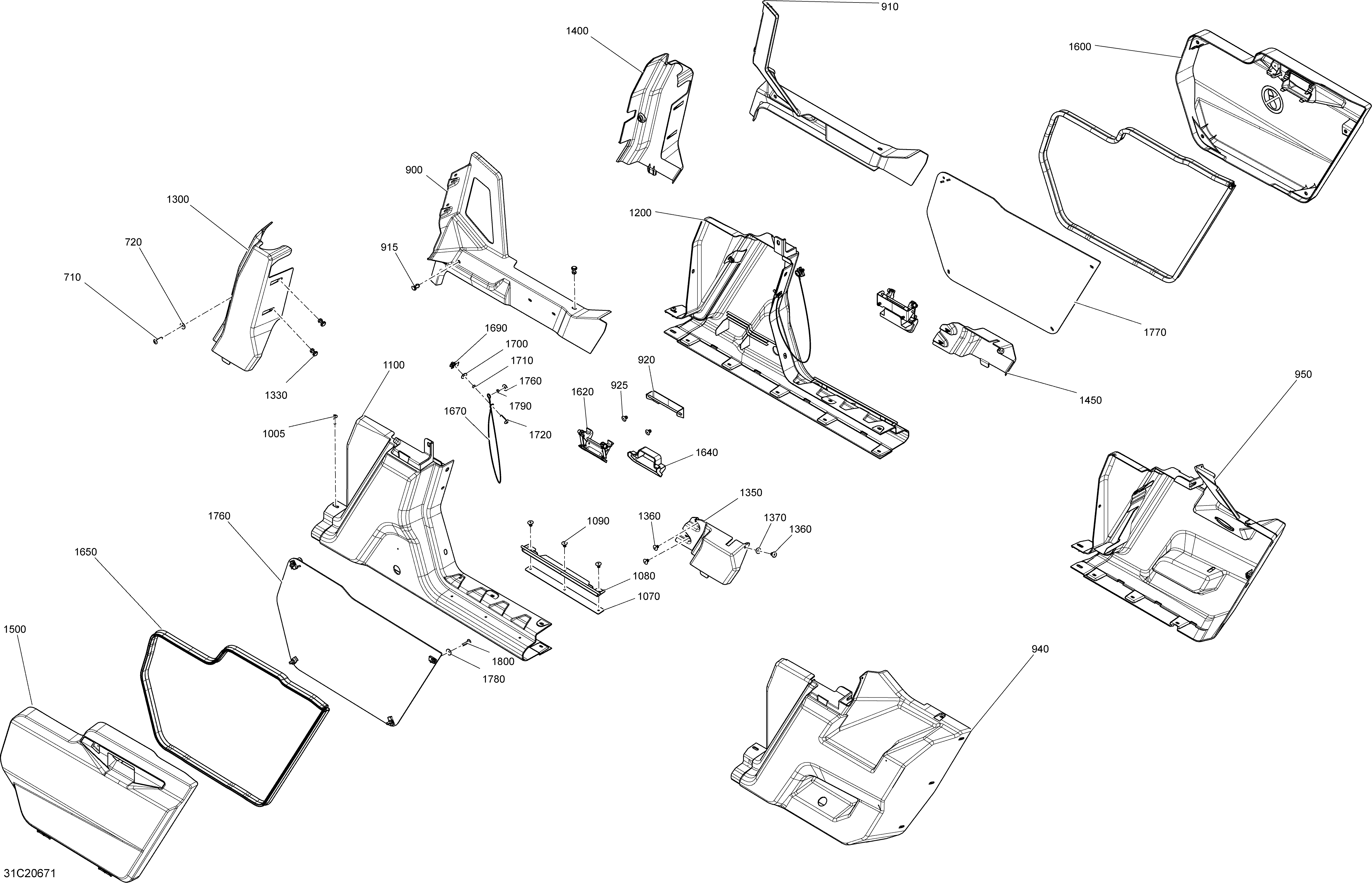

09- Body - Doors Section для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
710250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
900705014160 LH Central Body PanelLH Central Body Panel
-
910705014161 RH Central Body PanelRH Central Body Panel
-
915293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
920705014757 Support PivotSupport Pivot
-
925293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
940705014158 Deep Black, LH Rear Body PanelDeep Black, LH Rear Body Panel
-
950705014159 Deep Black, RH Rear Body PanelDeep Black, RH Rear Body Panel
-
1005250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1070705014755 Reinforcement PanelReinforcement Panel
-
1080705014759 Support PivotSupport Pivot
-
1090293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1100705014750 LH Middle Side PanelLH Middle Side Panel
-
1200705014751 RH Middle Side PanelRH Middle Side Panel
-
1300705008156 LH Rear Cage CoverLH Rear Cage Cover
-
1330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1350705014748 Deep Black, LH Rear Body PanelDeep Black, LH Rear Body Panel
-
1360293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
1370250200025 Washer M5Washer M5
-
1400715003565 RH Rear Cage Cover KitRH Rear Cage Cover Kit
-
1450705014749 Deep Black, RH Rear Body PanelDeep Black, RH Rear Body Panel
-
1500705014162 Deep Black, LH Rear Door PanelDeep Black, LH Rear Door Panel
-
1600705014163 Deep Black, RH Rear Door PanelDeep Black, RH Rear Door Panel
-
1620269003103 Seat LatchSeat Latch
-
1640705014752 Latch TrimLatch Trim
-
1650705014164 GasketGasket
-
1670705014763 Cable RetainingCable Retaining
-
1690250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1700234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1710708300737 BushingBushing
-
1720250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
1750250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1755705014804 Panel ReinforcementPanel Reinforcement
-
1760234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1770708300737 BushingBushing
-
1780250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
