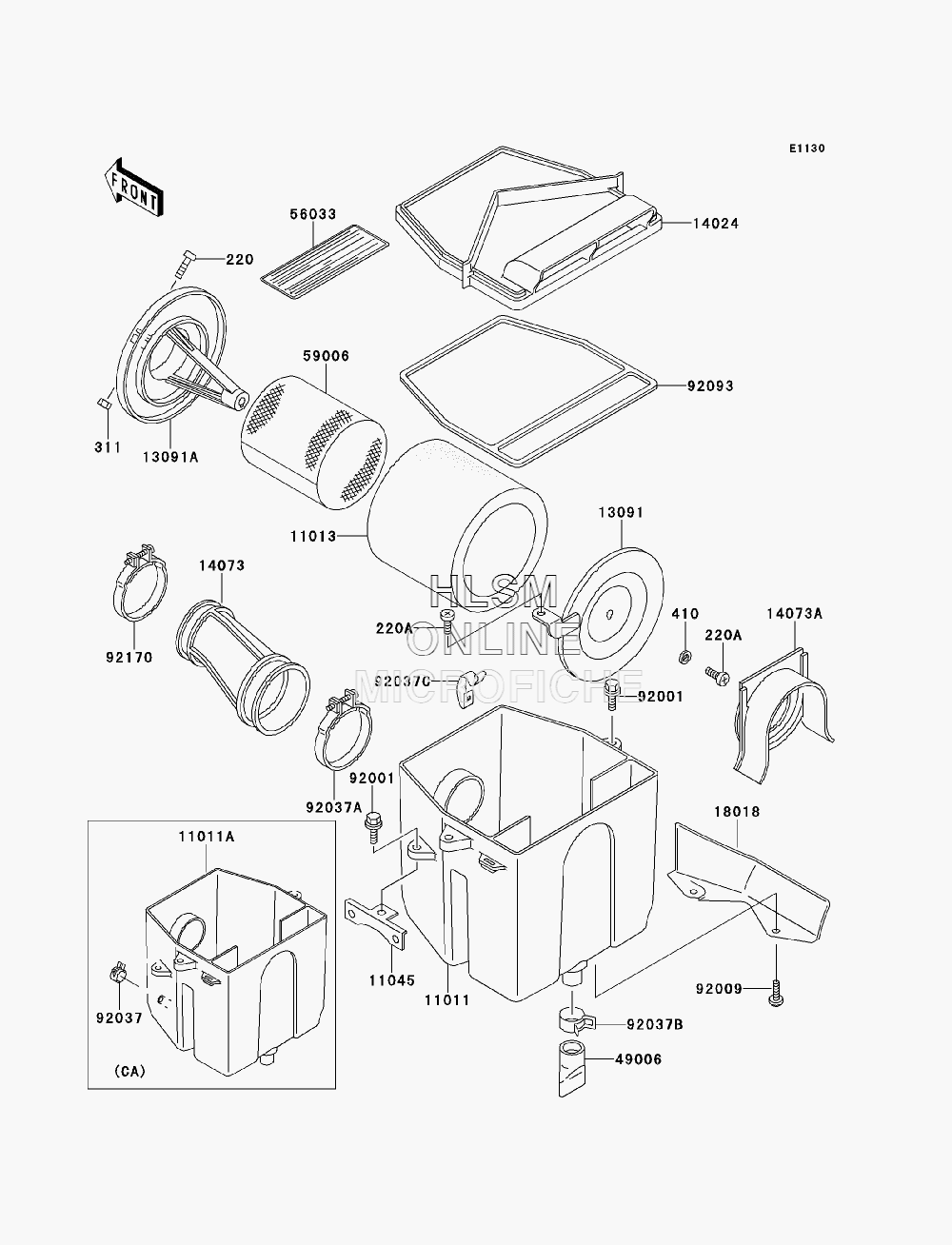

AIR CLEANER для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
220220B0516 SCREW-PAN-CROSSCREW-PAN-CROS
-
220A220B0614 SCREW-PAN-CROS, 6X14SCREW-PAN-CROS, 6X14
-
311311B0500 NUT-HEXNUT-HEX
-
410410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
1101111011-1260 CASE-AIR FILTER (EXCEPT CALIF.)CASE-AIR FILTER (EXCEPT CALIF.)
-
11011A11011-1521 CASE-AIR FILTER (CALIF. ONLY)CASE-AIR FILTER (CALIF. ONLY)
-
1101311013-1275 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1104511045-1786 BRACKET, REGULATORBRACKET, REGULATOR
-
1309113091-1488 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1510 HOLDER, ELEMENTHOLDER, ELEMENT
-
1402414024-1489 COVER, AIR FILTERCOVER, AIR FILTER
-
1407314073-1312 DUCT, CARBURETORDUCT, CARBURETOR
-
14073A14073-1313 DUCT, AIR FILTERDUCT, AIR FILTER
-
1801818018-1077 PLATE-HEAT GUARDPLATE-HEAT GUARD
-
4900649006-1199 BOOTBOOT
-
5603356033-1079 LABEL-MANUAL, MAINTENANCELABEL-MANUAL, MAINTENANCE
-
5900659006-1052 ARRESTER-FLAMEARRESTER-FLAME
-
9200192001-1460 BOLT, 6X20BOLT, 6X20
-
9200992009-1332 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9203792037-1181 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92037A92037-1452 CLAMP, 57MM, BLACKCLAMP, 57MM, BLACK
-
92037B92037-1460 CLAMPCLAMP
-
92037C92037-1783 CLAMP, AIR FILTERCLAMP, AIR FILTER
-
9209392093-1241 SEAL, AIR FILTERSEAL, AIR FILTER
-
9217092170-1006 CLAMPCLAMP
