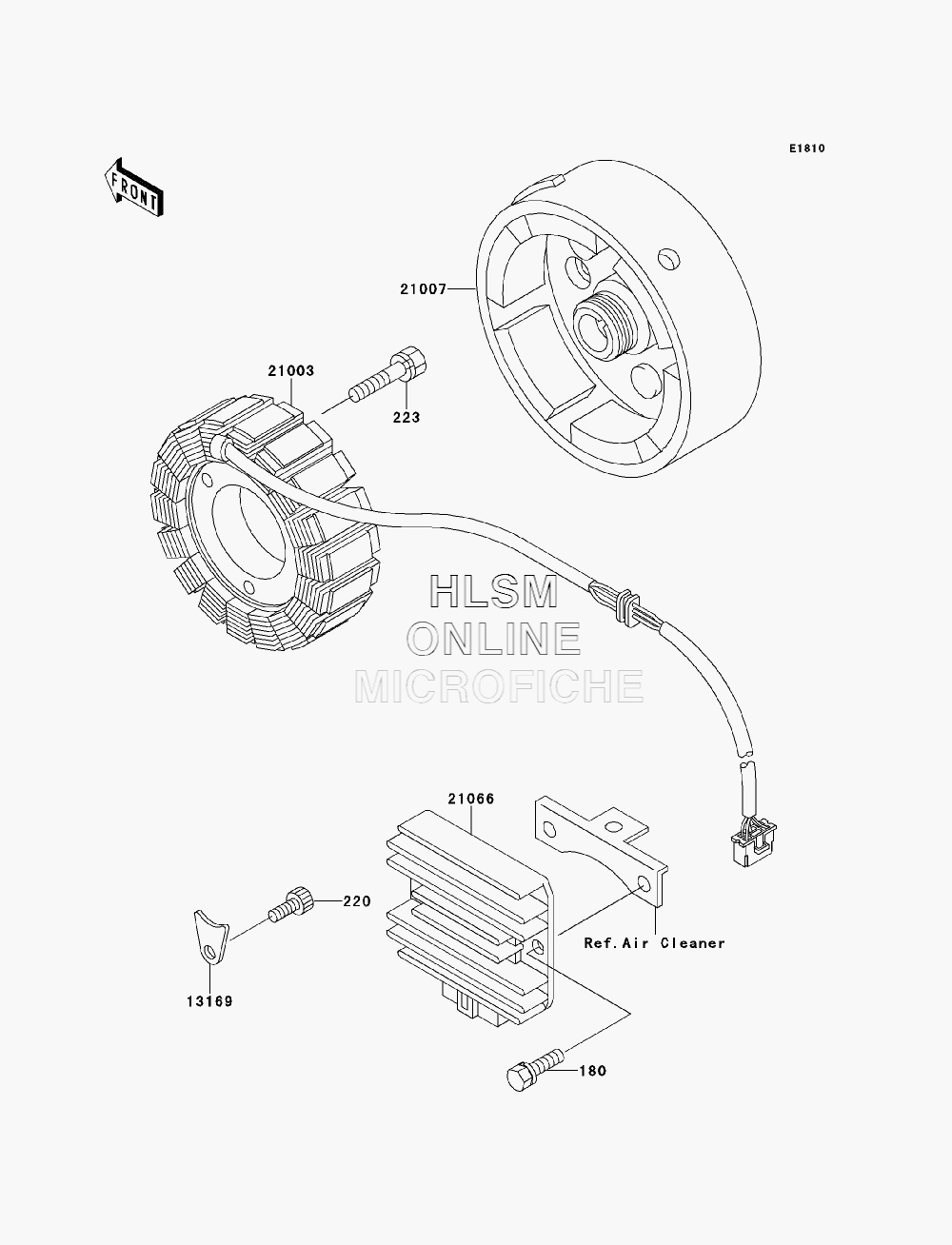

GENERATOR для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
180180B0622 BOLT-UPSET-WSBOLT-UPSET-WS
-
220220B0610 SCREW-PAN-CROS, 6X10SCREW-PAN-CROS, 6X10
-
223223B0530 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1316913169-1788 PLATE, HARNESSPLATE, HARNESS
-
2100321003-1287 STATORSTATOR
-
2100721007-1286 ROTOR, GENERATORROTOR, GENERATOR
-
2106621066-1038 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
