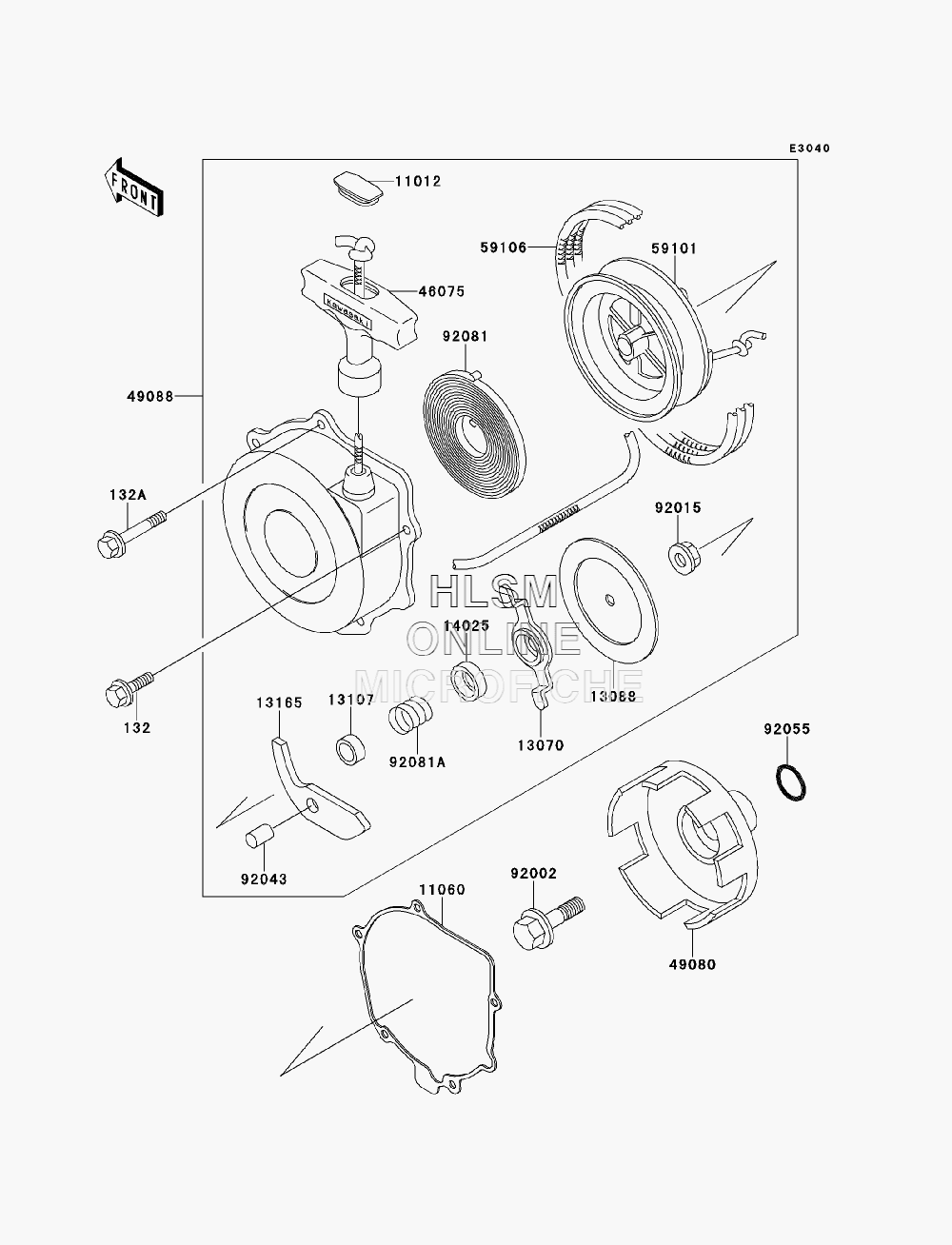

STARTER - RECOIL для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
132132J0614 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0680 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1101211012-1420 CAP, RECOIL GRIPCAP, RECOIL GRIP
-
1106011060-1650 GASKET, RECOIL STARTERGASKET, RECOIL STARTER
-
1307013070-1123 GUIDE, RECOILGUIDE, RECOIL
-
1308813088-1059 PLATE-FRICTION, RECOILPLATE-FRICTION, RECOIL
-
1310713107-1129 SHAFT, RECOILSHAFT, RECOIL
-
1316513165-1110 PAWL, RECOILPAWL, RECOIL
-
1402514025-1966 COVER, RECOILCOVER, RECOIL
-
4607546075-1073 GRIP, RECOILGRIP, RECOIL
-
4908049080-1051 PULLEY-STARTINGPULLEY-STARTING
-
4908849088-1054 STARTER-RECOILSTARTER-RECOIL
-
5910159101-1105 REELREEL
-
5910659106-1102 ROPE, RECOILROPE, RECOIL
-
9200292002-1296 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
9201592015-1464 NUT, 6MMNUT, 6MM
-
9204392043-1259 PIN, RECOILPIN, RECOIL
-
9205592055-1235 RING-O, 16.8MMRING-O, 16.8MM
-
9208192081-1772 SPRING, RECOILSPRING, RECOIL
-
92081A92081-1773 SPRINGSPRING
