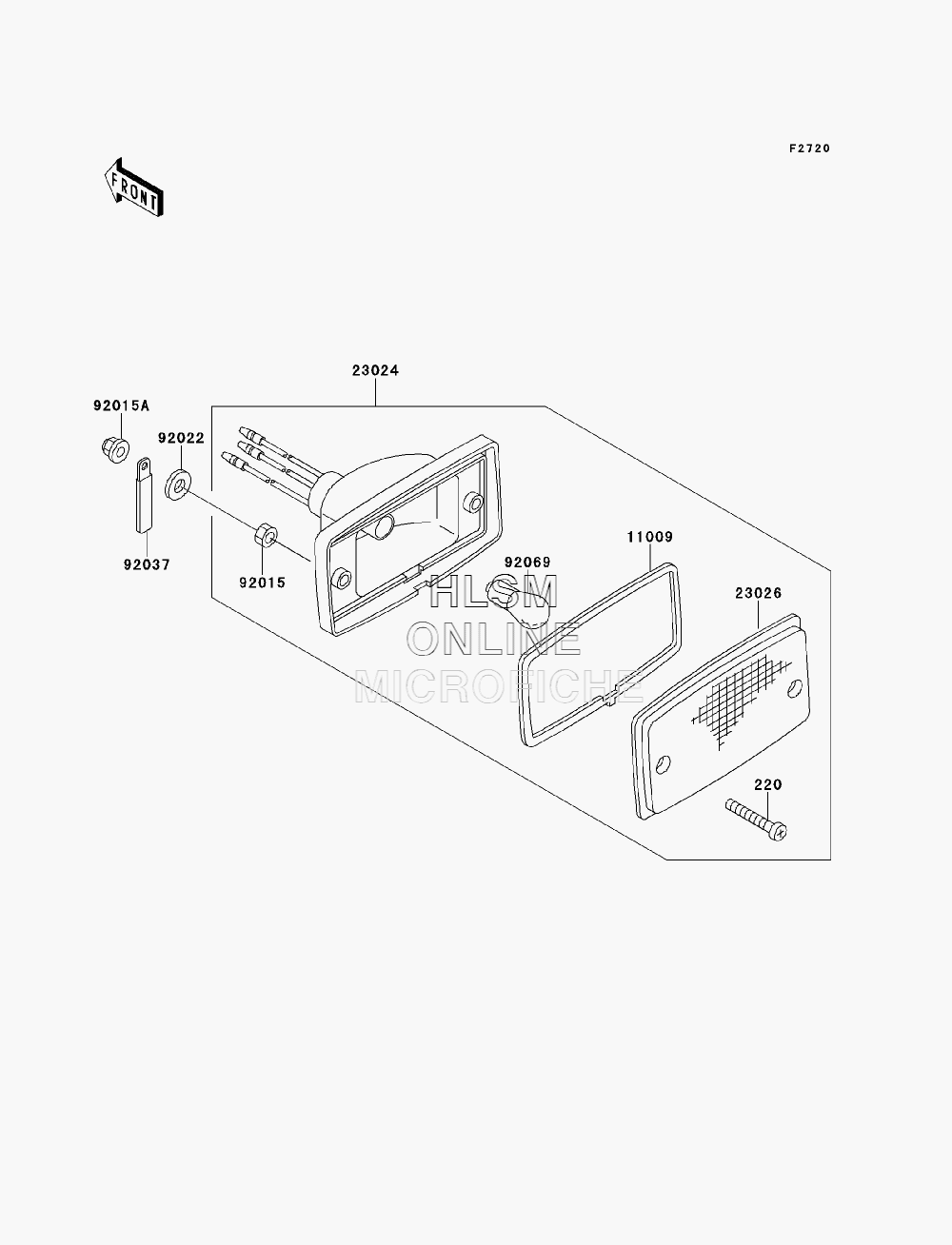

TAILLIGHT(S) для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
220220B0425 SCREW-PAN-CROS, 4X25SCREW-PAN-CROS, 4X25
-
1100911009-4004 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
2302423024-1133 LAMP-ASSY-TAILLAMP-ASSY-TAIL
-
2302623026-1239 LENS, TAIL LAMPLENS, TAIL LAMP
-
9201592015-1550 NUT, 4MMNUT, 4MM
-
92015A92015-1695 NUTNUT
-
9202292022-1681 WASHER, 4.5X14X0.6WASHER, 4.5X14X0.6
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9206992069-059 BULB, 12V 27/8WBULB, 12V 27/8W
