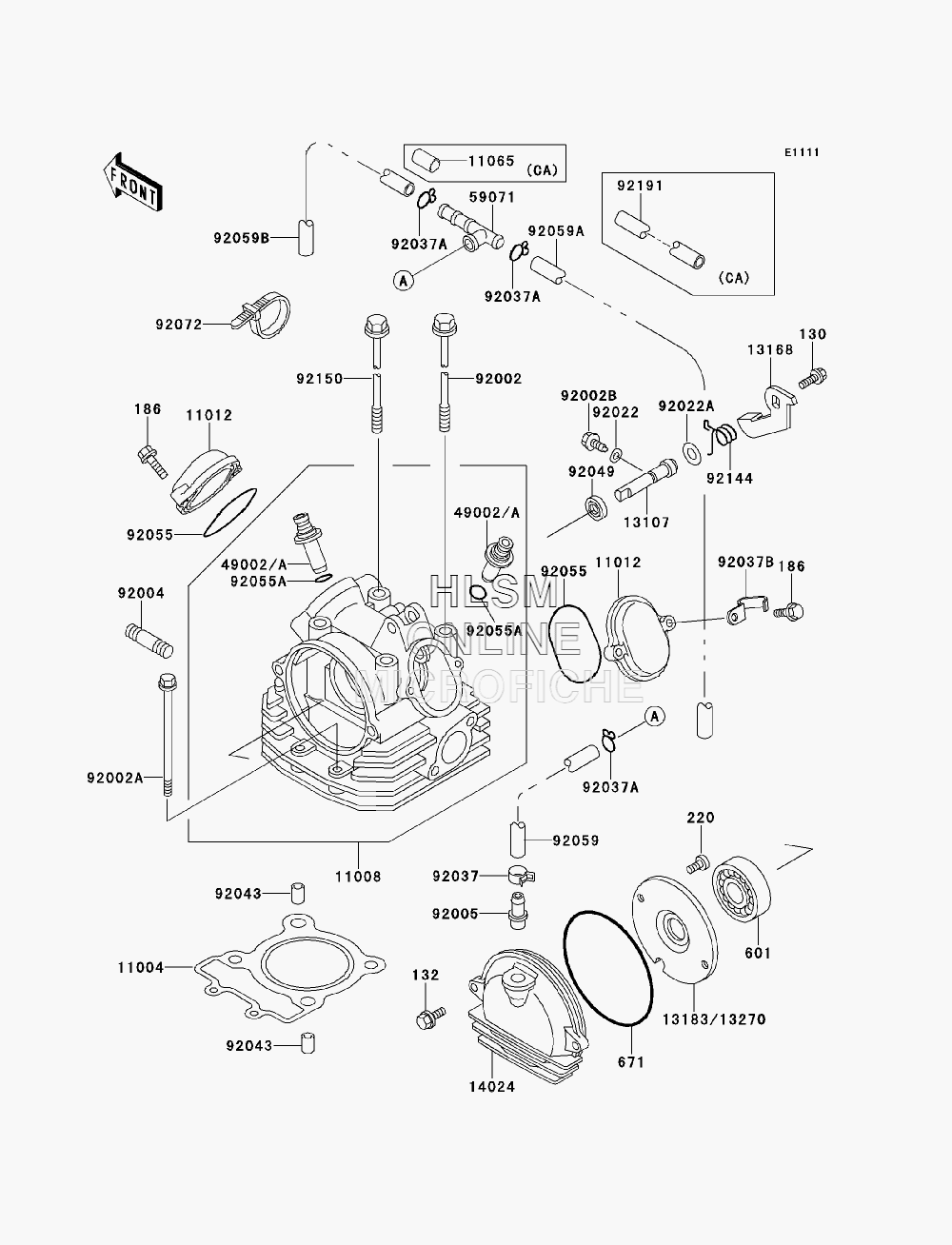

CYLINDER HEAD для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
1100411004-1167 GASKET-HEADGASKET-HEAD
-
1100811008-1197 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
1101211012-1486 CAP, ROCKER ARMCAP, ROCKER ARM
-
1106511065-1075 CAP (CALIF. ONLY)CAP (CALIF. ONLY)
-
1310713107-1209 SHAFT, DECOMPRESSORSHAFT, DECOMPRESSOR
-
1316813168-1353 LEVER, DECOMPRESSORLEVER, DECOMPRESSOR
-
1318313183-1139 PLATE, CAM CHAIN (EXCEPT CALIF.)PLATE, CAM CHAIN (EXCEPT CALIF.)
-
1327013270-1960 PLATE (CALIF. ONLY)PLATE (CALIF. ONLY)
-
1402414024-1485 COVER, CAMSHAFTCOVER, CAMSHAFT
-
4900249002-1079 GUIDE-VALVE (CALIF. ONLY)GUIDE-VALVE (CALIF. ONLY)
-
49002A49002-1079 GUIDE-VALVE (EXCEPT CALIF.)GUIDE-VALVE (EXCEPT CALIF.)
-
5907159071-1124 JOINTJOINT
-
9200292002-1960 BOLT, 10X228BOLT, 10X228
-
92002A92002-1961 BOLT, 6X113BOLT, 6X113
-
92002B92002-1962 BOLT, DECOMPRESSORBOLT, DECOMPRESSOR
-
9200492004-1128 STUD, 6X30STUD, 6X30
-
9200592005-1161 FITTING, BREATHER PIPEFITTING, BREATHER PIPE
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1649 WASHER, 10.2X20X0.5WASHER, 10.2X20X0.5
-
9203792037-1181 CLAMPCLAMP
-
92037A92037-1271 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037B92037-1939 CLAMPCLAMP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9204992049-1542 SEAL-OILSEAL-OIL
-
9205592055-112 RING-O, 53.5X2.6RING-O, 53.5X2.6
-
92055A92055-1177 RING-O, 10.3X1.2RING-O, 10.3X1.2
-
9205992059-1848 TUBE, 9X12X148TUBE, 9X12X148
-
92059A92059-1849 TUBE, 9X12X600 (EXCEPT CALIF.)TUBE, 9X12X600 (EXCEPT CALIF.)
-
92059B92059-1900 TUBE (EXCEPT CALIF.)TUBE (EXCEPT CALIF.)
-
9207292072-031 BAND, L=149BAND, L=149
-
9214492144-1154 SPRING, DECOMPRESSORSPRING, DECOMPRESSOR
-
9215092150-1107 BOLTBOLT
-
9219192191-1169 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
130130Y0610 BOLT-FLANGEDBOLT-FLANGED
-
132132Y0616 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
186186G0625 BOLT-UPSET-WPBOLT-UPSET-WP
-
220220B0608 SCREW-PAN-CROS, 6X8SCREW-PAN-CROS, 6X8
-
601601A6004ZZ BEARING-BALLBEARING-BALL
-
671671B2595 O RING, 95MMO RING, 95MM
