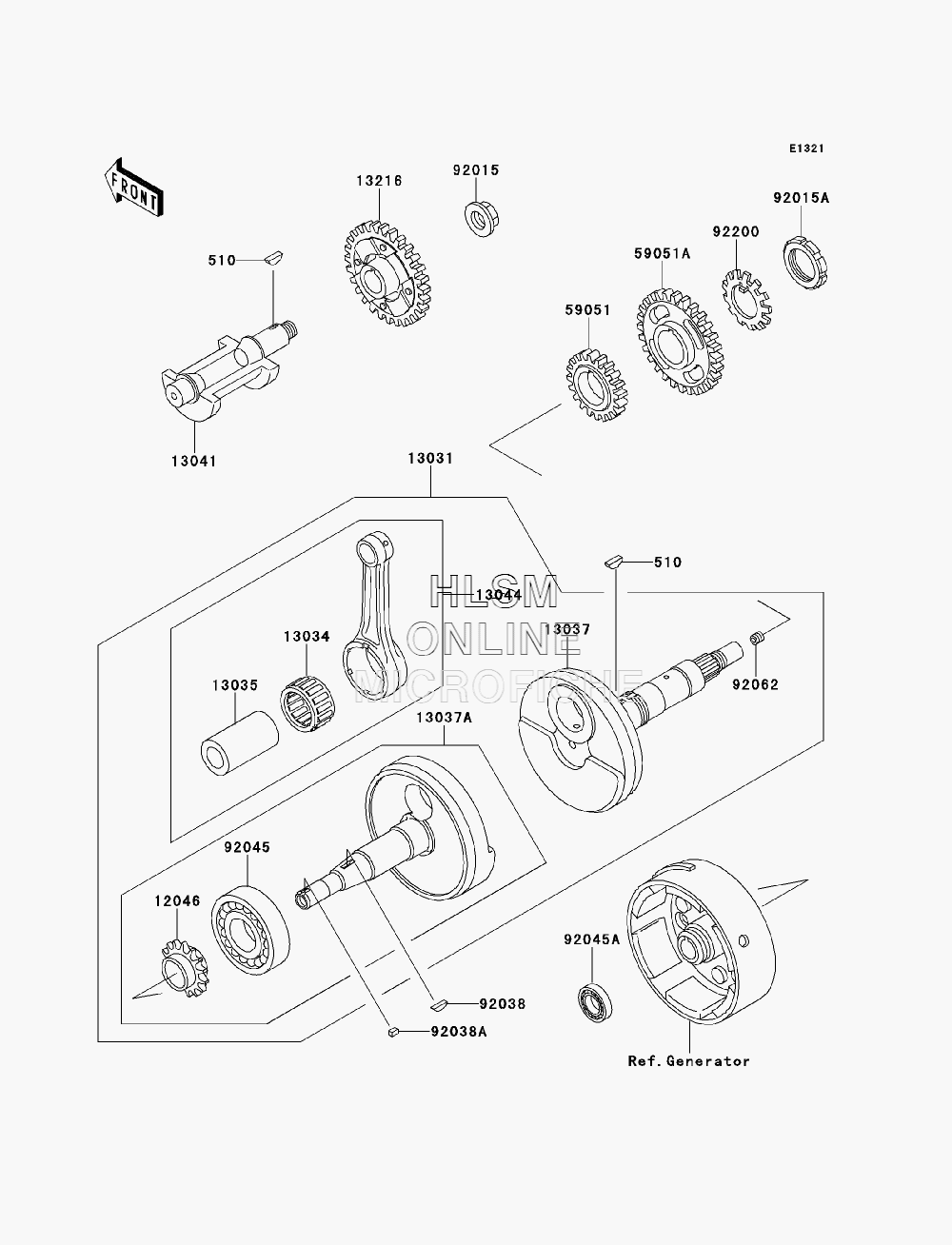

CRANKSHAFT для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
510510A5100 KEY-WOODRUFFKEY-WOODRUFF
-
1204612046-1152 SPROCKET, CAM CHAIN, 19TSPROCKET, CAM CHAIN, 19T
-
1303113031-1373 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303413034-1098 BEARING-BIG ENDBEARING-BIG END
-
1303513035-1063 PIN-CRANKPIN-CRANK
-
1303713037-1478 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
13037A13037-5085 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
1304113041-1127 BALANCERBALANCER
-
1304413044-5086 SET-CONNECTING RODSET-CONNECTING ROD
-
1321613216-1184 GEAR-COMP, BALANCERGEAR-COMP, BALANCER
-
5905159051-1187 GEAR, OIL PUMP, 30TGEAR, OIL PUMP, 30T
-
59051A59051-1188 GEAR-SPUR, 39TGEAR-SPUR, 39T
-
9201592015-1465 NUT, 16MMNUT, 16MM
-
92015A92015-1511 NUT, PUMP GEAR, 30MMNUT, PUMP GEAR, 30MM
-
9203892038-001 KEY, WOODRUFFKEY, WOODRUFF
-
92038A92038-1051 KEY, SUNKKEY, SUNK
-
9204592045-1172 BEARING-BALLBEARING-BALL
-
92045A92045-1266 BEARING-BALL, 6903C3BEARING-BALL, 6903C3
-
9206292062-1082 NOZZLE, 8X8, SILVERNOZZLE, 8X8, SILVER
-
9220092200-1203 WASHER, PUMP GEARWASHER, PUMP GEAR
