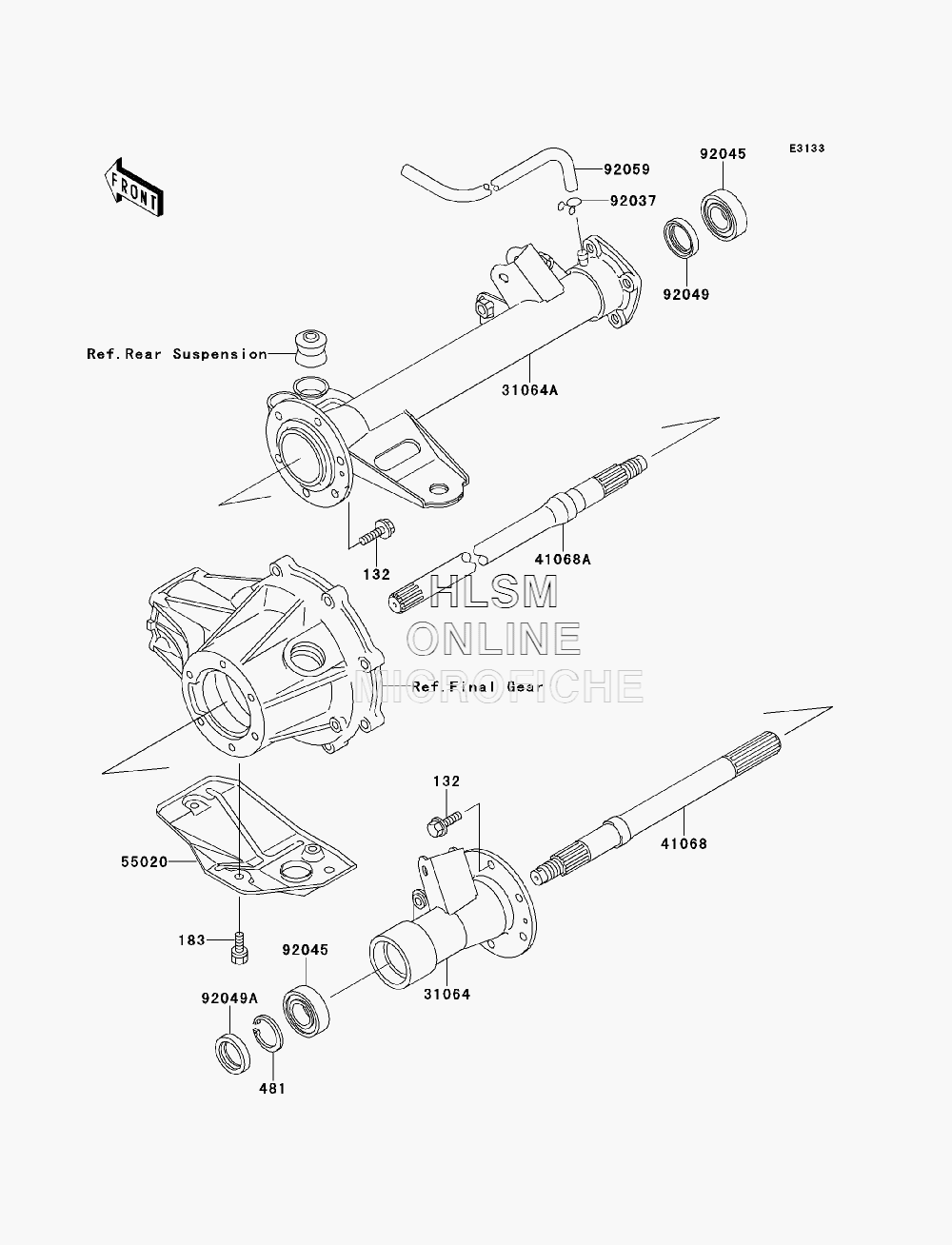

REAR AXLE для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
132132J0820 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
183183H0814 BOLT-UPSET-WS-SMALLBOLT-UPSET-WS-SMALL
-
481481J5200 CIRCLIPCIRCLIP
-
3106431064-1088 PIPE-COMP, LEFT HANDPIPE-COMP, LEFT HAND
-
31064A31064-1089 PIPE-COMP, RIGHT HANDPIPE-COMP, RIGHT HAND
-
4106841068-1244 AXLE, LEFT HANDAXLE, LEFT HAND
-
41068A41068-1245 AXLE, RIGHT HANDAXLE, RIGHT HAND
-
5502055020-1276 GUARDGUARD
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9204592045-1229 BEARING-BALL, 6205DDUBEARING-BALL, 6205DDU
-
9204992049-1236 SEAL-OIL, SO30428SEAL-OIL, SO30428
-
92049A92049-1287 SEAL-OILSEAL-OIL
-
9205992059-1968 TUBE, 4.7X9.5X1240TUBE, 4.7X9.5X1240
