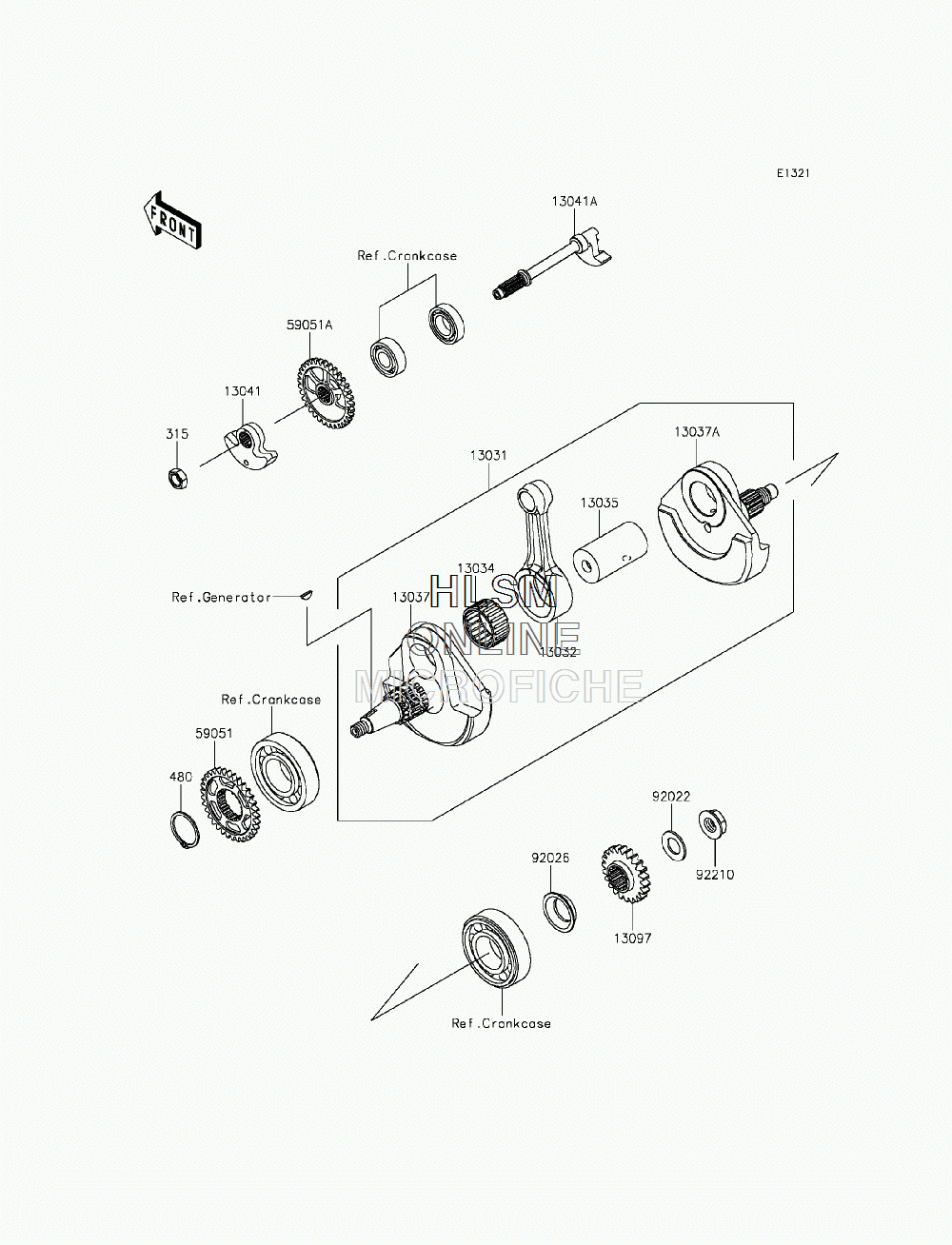

CRANKSHAFT для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
315315BA1200 NUT-HEX-FINE,12MMNUT-HEX-FINE,12MM
-
480480J3200 CIRCLIP-TYPE-C,32MMCIRCLIP-TYPE-C,32MM
-
1303113031-0839 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-0067 ROD-CONNECTING, REDROD-CONNECTING, RED
-
1303413034-0017 BEARING-BIG END,B4(BLUE)BEARING-BIG END,B4(BLUE)
-
1303513035-0018 PIN-CRANKPIN-CRANK
-
1303713037-0874 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
13037A13037-0875 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
1304113041-0023 BALANCER,WEIGHTBALANCER,WEIGHT
-
13041A13041-0046 BALANCER,SHAFTBALANCER,SHAFT
-
1309713097-0013 GEAR-PRIMARY SPUR,22TGEAR-PRIMARY SPUR,22T
-
5905159051-0768 GEAR-SPUR,BALANCER DRIVE,33TGEAR-SPUR,BALANCER DRIVE,33T
-
59051A59051-0769 GEAR-SPUR,BALANCER DRIVEN,33TGEAR-SPUR,BALANCER DRIVEN,33T
-
9202292022-1356 WASHER,16.3X29X1.75WASHER,16.3X29X1.75
-
9202692026-0806 SPACERSPACER
-
9221092210-0490 NUT,16MMNUT,16MM
