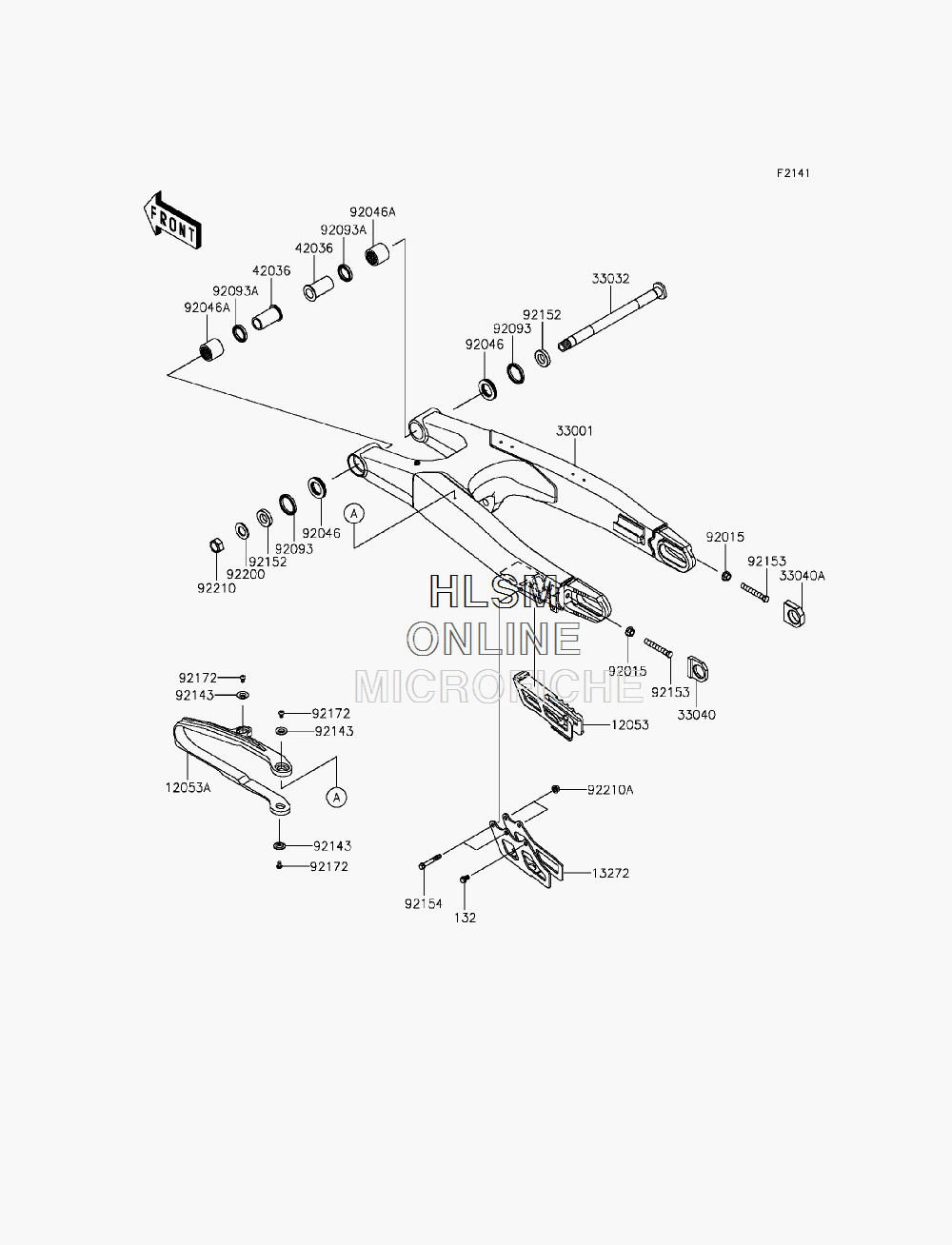

SUSPENSION - SWINGARM для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
132132BA0610 BOLT-FLANGED-SMALL,6X10BOLT-FLANGED-SMALL,6X10
-
1205312053-0125 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-0223 GUIDE-CHAINGUIDE-CHAIN
-
1327213272-1169 PLATE,CHAIN GUIDEPLATE,CHAIN GUIDE
-
3300133001-0646 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-0012 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0050 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
33040A33040-0080 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
4203642036-0780 SLEEVE,17X24X47.3SLEEVE,17X24X47.3
-
9201592015-1014 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9204692046-0625 BEARING-NEEDLEBEARING-NEEDLE
-
92046A92046-1041 BEARING-NEEDLE,TA2428ZBEARING-NEEDLE,TA2428Z
-
9209392093-0684 SEAL,31X38X4.5SEAL,31X38X4.5
-
92093A92093-0685 SEAL,24X31X5SEAL,24X31X5
-
9214392143-1676 COLLARCOLLAR
-
9215292152-2154 COLLAR,17.1X31X6.7COLLAR,17.1X31X6.7
-
9215392153-0620 BOLT,8X56BOLT,8X56
-
9215492154-0511 BOLT,FLANGED,6X42BOLT,FLANGED,6X42
-
9217292172-0119 SCREW,5X8SCREW,5X8
-
9220092200-0285 WASHER,17.2X30X2.3WASHER,17.2X30X2.3
-
9221092210-0285 NUT,LOCK,16MMNUT,LOCK,16MM
-
92210A92210-0630 NUT,FLANGED,6MMNUT,FLANGED,6MM
