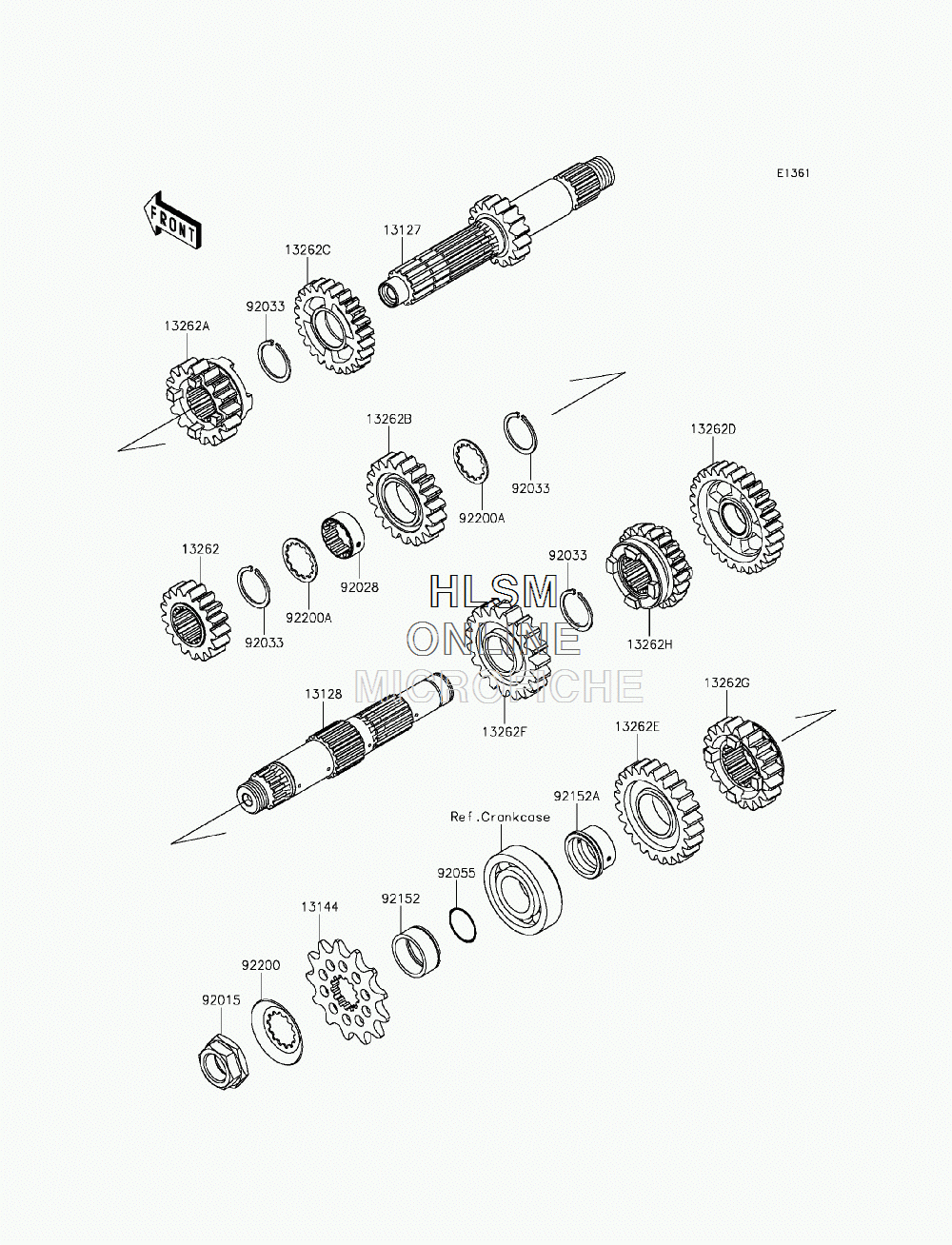

TRANSMISSION для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
1312713127-0664 SHAFT-TRANSMISSION INPUT,16TSHAFT-TRANSMISSION INPUT,16T
-
1312813128-0688 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0063 SPROCKET-OUTPUT,13TSPROCKET-OUTPUT,13T
-
1326213262-1170 GEAR,INPUT 2ND,17TGEAR,INPUT 2ND,17T
-
13262A13262-1171 GEAR,INPUT 3RD,16TGEAR,INPUT 3RD,16T
-
13262B13262-1172 GEAR,INPUT 4TH,19TGEAR,INPUT 4TH,19T
-
13262C13262-1173 GEAR,INPUT 5TH,24TGEAR,INPUT 5TH,24T
-
13262D13262-1174 GEAR,OUTPUT LOW,28TGEAR,OUTPUT LOW,28T
-
13262E13262-1175 GEAR,OUTPUT 2ND,24TGEAR,OUTPUT 2ND,24T
-
13262F13262-1176 GEAR,OUTPUT 3RD,19TGEAR,OUTPUT 3RD,19T
-
13262G13262-1177 GEAR,OUTPUT 4TH,19TGEAR,OUTPUT 4TH,19T
-
13262H13262-1178 GEAR,OUTPUT 5TH,21TGEAR,OUTPUT 5TH,21T
-
9201592015-1963 NUT,20MMNUT,20MM
-
9202892028-1857 BUSHING,INPUT TOP GEARBUSHING,INPUT TOP GEAR
-
9203392033-1172 RING-SNAP,25MMRING-SNAP,25MM
-
9205592055-1293 RING-O,21.5X1.5RING-O,21.5X1.5
-
9215292152-0150 COLLAR,25X30X13.2COLLAR,25X30X13.2
-
92152A92152-0540 COLLARCOLLAR
-
9220092200-0390 WASHERWASHER
-
92200A92200-1389 WASHERWASHER
