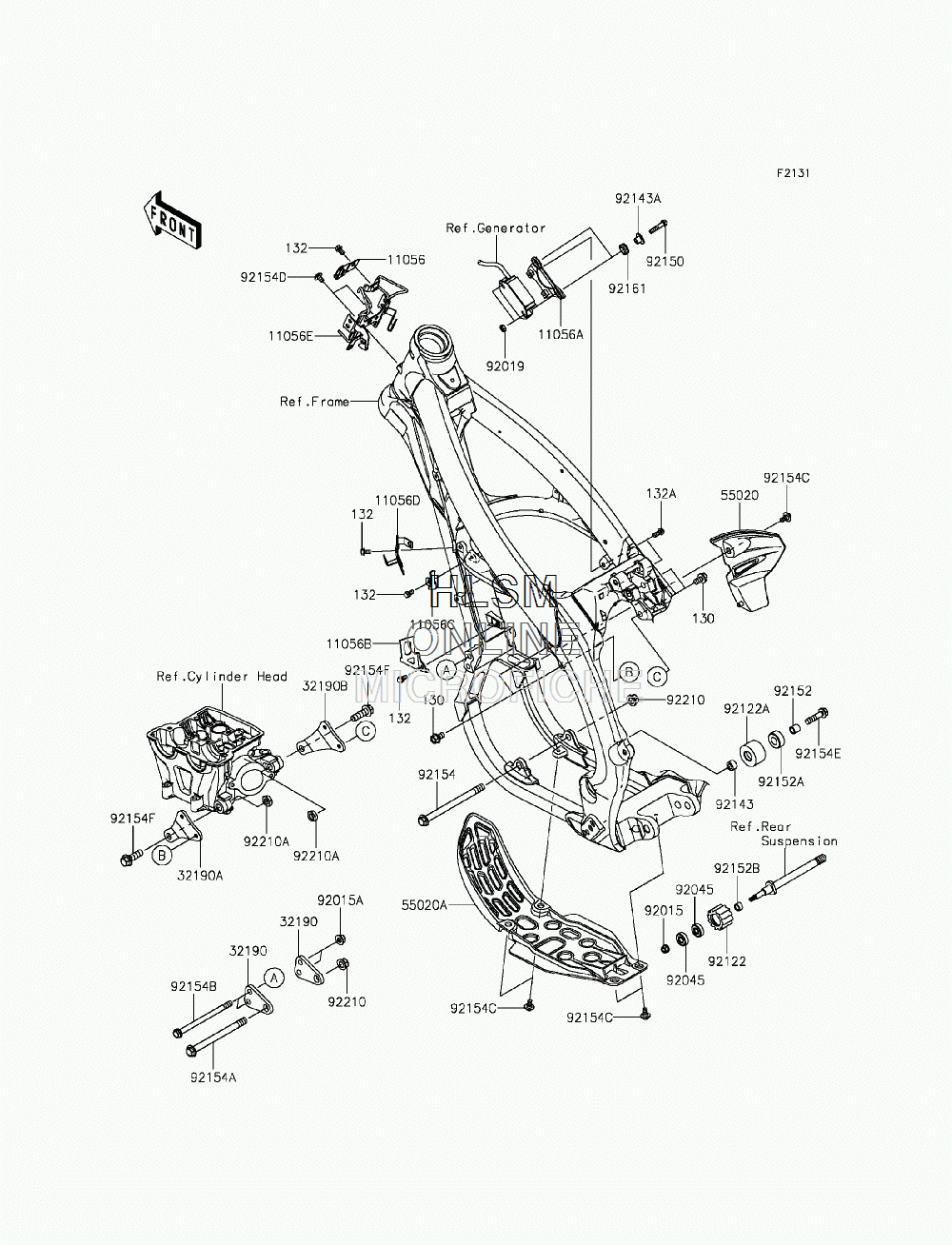

FRAME FITTING(S) для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130CA0814 BOLT-FLANGED,8X14BOLT-FLANGED,8X14
-
132132BA0610 BOLT-FLANGED-SMALL,6X10BOLT-FLANGED-SMALL,6X10
-
132A132BA0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
1105611056-0070 BRACKET,DIAG CONNECTORBRACKET,DIAG CONNECTOR
-
11056A11056-7457 BRACKET, REGULATORBRACKET, REGULATOR
-
11056B11056-7458 BRACKET,CONDENSORBRACKET,CONDENSOR
-
11056C11056-7459 BRACKET,BANK SENSORBRACKET,BANK SENSOR
-
11056D11056-7460 BRACKET,COUPLERBRACKET,COUPLER
-
11056E11056-7494 BRACKET,ECUBRACKET,ECU
-
3219032190-0698 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
32190A32190-0699 BRACKET-ENGINE,UPP, LEFT HANDBRACKET-ENGINE,UPP, LEFT HAND
-
32190B32190-0700 BRACKET-ENGINE,UPP, RIGHT HANDBRACKET-ENGINE,UPP, RIGHT HAND
-
5502055020-1892 GUARD,ENGINE,SIDE, RIGHT HANDGUARD,ENGINE,SIDE, RIGHT HAND
-
55020A55020-1893 GUARD,ENGINE,LOWERGUARD,ENGINE,LOWER
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015A92015-1432 NUT,8MMNUT,8MM
-
9201992019-008 NUT,LOCK,6MMNUT,LOCK,6MM
-
9204592045-0060 BEARING-BALL,608LLU/2ABEARING-BALL,608LLU/2A
-
9212292122-0016 ROLLER,CHAIN GUIDEROLLER,CHAIN GUIDE
-
92122A92122-0042 ROLLER,CHAINROLLER,CHAIN
-
9214392143-1642 COLLAR,8.5X15X9COLLAR,8.5X15X9
-
92143A92143-1962 COLLARCOLLAR
-
9215092150-1124 BOLT,FLANGED,6X27BOLT,FLANGED,6X27
-
9215292152-0944 COLLAR,8.5X12.5X12.5COLLAR,8.5X12.5X12.5
-
92152A92152-0945 COLLAR,12.7X27.2X12COLLAR,12.7X27.2X12
-
92152B92152-1624 COLLAR,8.1X12.5X7.5COLLAR,8.1X12.5X7.5
-
9215492154-0522 BOLT,FLANGED,10X137BOLT,FLANGED,10X137
-
92154A92154-0523 BOLT,FLANGED,10X124BOLT,FLANGED,10X124
-
92154B92154-0524 BOLT,FLANGED,8X122BOLT,FLANGED,8X122
-
92154C92154-0546 BOLT,FLANGED,6X9BOLT,FLANGED,6X9
-
92154D92154-0774 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
92154E92154-1746 BOLT,FLANGED,8X35BOLT,FLANGED,8X35
-
92154F92154-1747 BOLT,FLANGED,10X32BOLT,FLANGED,10X32
-
9216192161-0266 DAMPERDAMPER
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1184 NUT,LOCK,10MMNUT,LOCK,10MM
