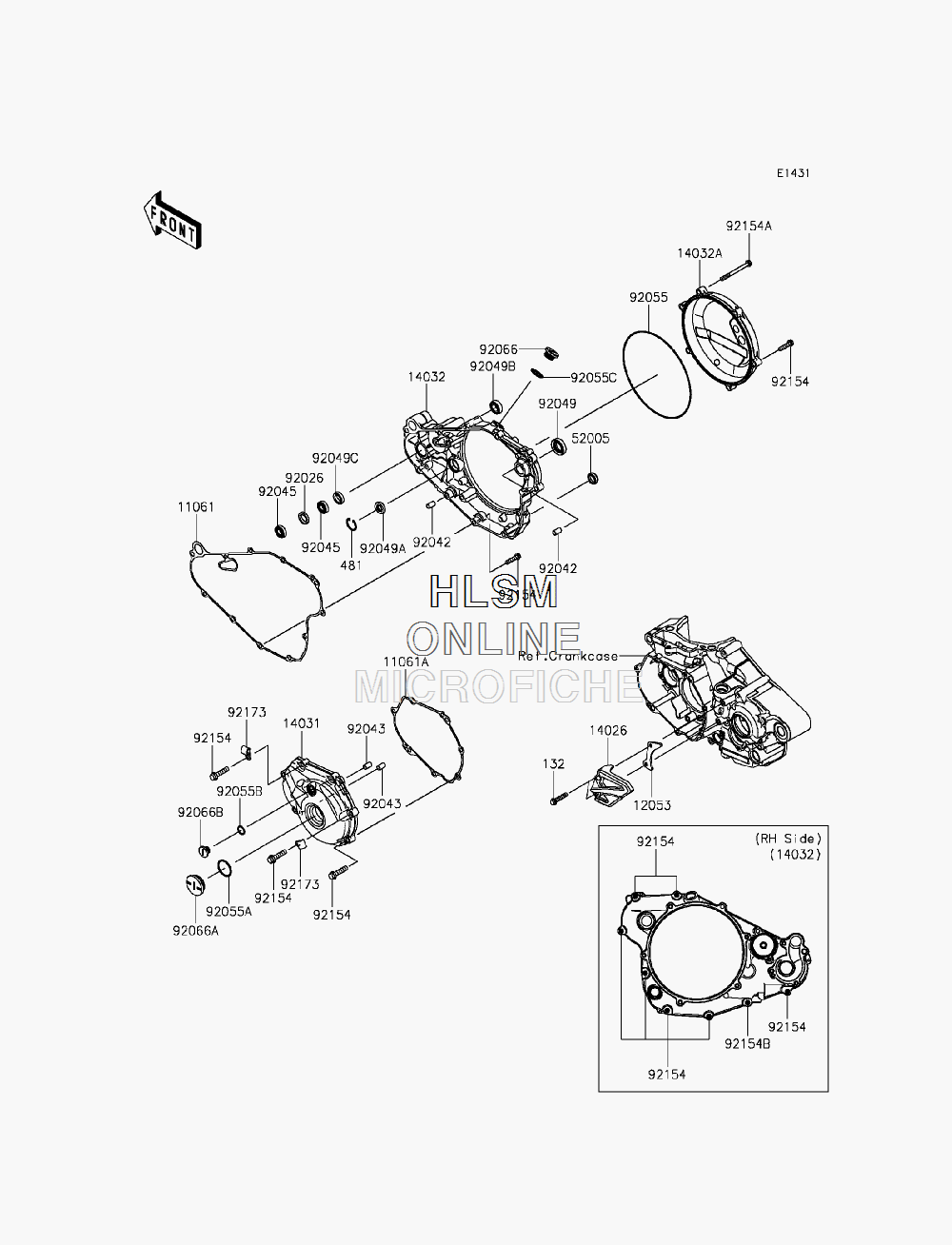

ENGINE COVER для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
132132BA0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
481481J2200 CIRCLIP-TYPE-C,22MMCIRCLIP-TYPE-C,22MM
-
1106111061-0981 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
11061A11061-0982 GASKET,GENERATORGASKET,GENERATOR
-
1205312053-0227 GUIDE-CHAINGUIDE-CHAIN
-
1402614026-0120 COVER-CHAINCOVER-CHAIN
-
1403114031-0604 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0612 COVER-CLUTCH,INNERCOVER-CLUTCH,INNER
-
14032A14032-0613 COVER-CLUTCH,OUTERCOVER-CLUTCH,OUTER
-
5200552005-0019 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
9202692026-0064 SPACER,16X22X4.3SPACER,16X22X4.3
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204392043-1567 PIN,8X14PIN,8X14
-
9204592045-0039 BEARING-BALL,6900C3BEARING-BALL,6900C3
-
9204992049-013 SEAL-OIL,SB18307SEAL-OIL,SB18307
-
92049A92049-0762 SEAL-OIL,TVCX13X22X5.5SEAL-OIL,TVCX13X22X5.5
-
92049B92049-0782 SEAL-OIL,12X24X7SEAL-OIL,12X24X7
-
92049C92049-0783 SEAL-OIL,12X22X5SEAL-OIL,12X22X5
-
9205592055-0833 RING-O,163X1.9RING-O,163X1.9
-
92055A92055-091 RING-O,27.7X2.4RING-O,27.7X2.4
-
92055B92055-1011 RING-O,13.0X1.9RING-O,13.0X1.9
-
92055C92055-1146 RING-O,20X2RING-O,20X2
-
9206692066-0833 PLUG,18X9PLUG,18X9
-
92066A92066-0834 PLUG,30X8PLUG,30X8
-
92066B92066-0835 PLUG,12X9.1PLUG,12X9.1
-
9215492154-0520 BOLT,FLANGED,6X25BOLT,FLANGED,6X25
-
92154A92154-1929 BOLT,FLANGED,6X65BOLT,FLANGED,6X65
-
92154B92154-1980 BOLT,FLANGED,6X30BOLT,FLANGED,6X30
-
9217392173-1368 CLAMP,HARNESSCLAMP,HARNESS
