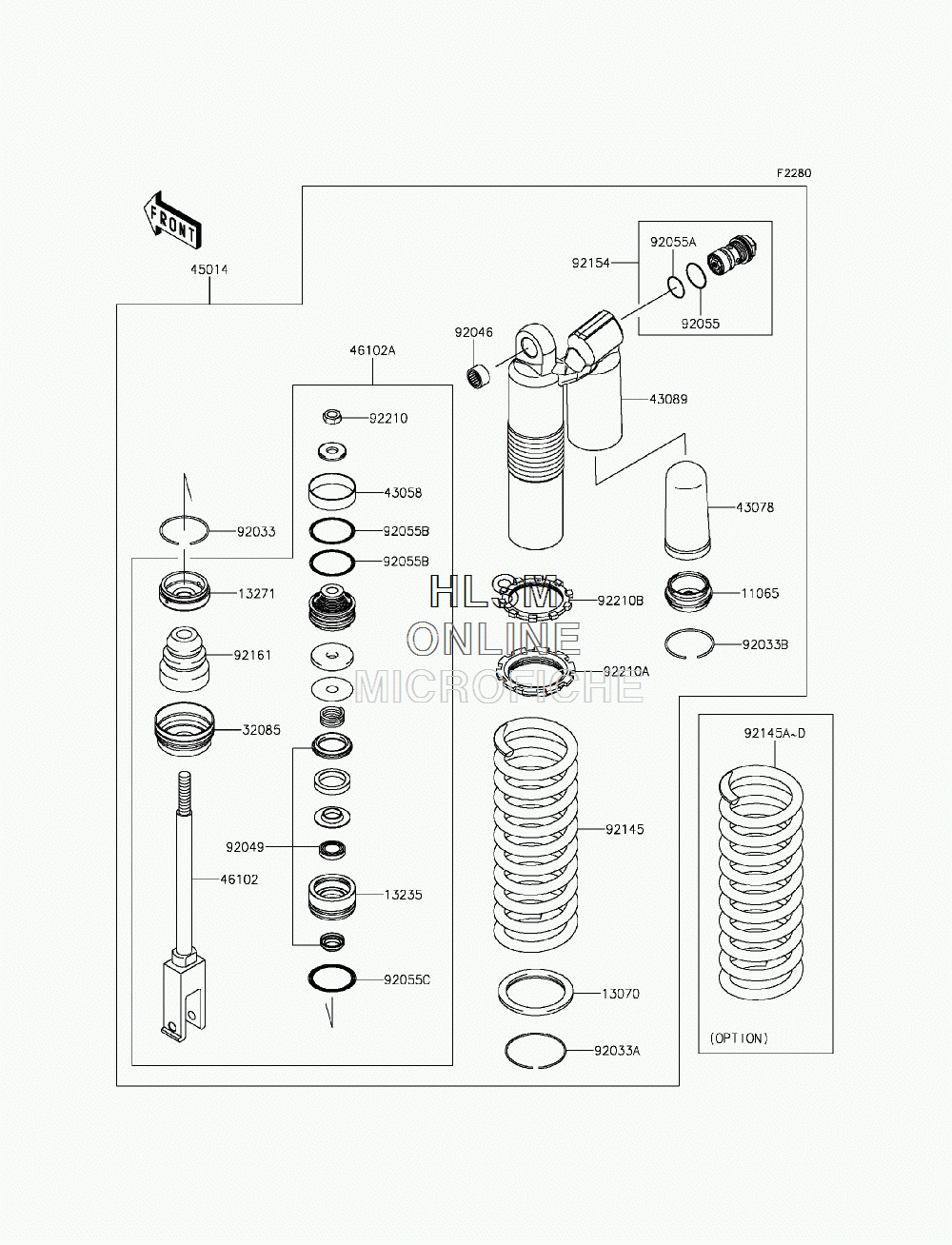

SUSPENSION - SHOCK ABSORBER для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
1106511065-0340 CAP,CHAMBERCAP,CHAMBER
-
1307013070-0057 GUIDE,SPRING SEATGUIDE,SPRING SEAT
-
1323513235-0012 GUIDE-COMP,RODGUIDE-COMP,ROD
-
1327113271-0858 PLATE,ENDPLATE,END
-
3208532085-0077 STOPPER,SPRING SEATSTOPPER,SPRING SEAT
-
4305843058-0012 RING,PISTONRING,PISTON
-
4307843078-0030 RESERVOIRRESERVOIR
-
4308943089-0032 CYLINDER-SHOCKABSORBERCYLINDER-SHOCKABSORBER
-
4501445014-0516-52C SHOCKABSORBER,SPG (GREEN+AJ GREEN) (FOR 777)SHOCKABSORBER,SPG (GREEN+AJ GREEN) (FOR 777)
-
4610246102-0610 ROD,PISTONROD,PISTON
-
46102A46102-0612 ROD,PISTON COMPROD,PISTON COMP
-
9203392033-0040 RING-SNAPRING-SNAP
-
92033A92033-0042 RING-SNAPRING-SNAP
-
92033B92033-0076 RING-SNAPRING-SNAP
-
9204692046-1301 BEARING-NEEDLE,7E-HVS16X22X12BEARING-NEEDLE,7E-HVS16X22X12
-
9204992049-0151 SEAL-OILSEAL-OIL
-
9205592055-0098 RING-O,PLUG BOLTRING-O,PLUG BOLT
-
92055A92055-0099 RING-O,PLUG BOLTRING-O,PLUG BOLT
-
92055B92055-0100 RING-ORING-O
-
92055C92055-0101 RING-ORING-O
-
9214592145-0321-710 SPRING, REAR SHOCK,K=52N/MM,(GREEN) (FOR 777)SPRING, REAR SHOCK,K=52N/MM,(GREEN) (FOR 777)
-
92145A92145-0465-710 SPRING, REAR SHOCK,K=49N/MM,(GREEN) (OPTION) (FOR 777)SPRING, REAR SHOCK,K=49N/MM,(GREEN) (OPTION) (FOR 777)
-
92145B92145-0887-710 SPRING, REAR SHOCK,K=53N/MM,(GREEN) (OPTION) (FOR 777)SPRING, REAR SHOCK,K=53N/MM,(GREEN) (OPTION) (FOR 777)
-
92145C92145-0888-710 SPRING, REAR SHOCK,K=51N/MM,(GREEN) (OPTION) (FOR 777)SPRING, REAR SHOCK,K=51N/MM,(GREEN) (OPTION) (FOR 777)
-
92145D92145-0889-710 SPRING, REAR SHOCK,K=55N/MM,(GREEN) (OPTION) (FOR 777)SPRING, REAR SHOCK,K=55N/MM,(GREEN) (OPTION) (FOR 777)
-
9215492154-1906 BOLT,PLUGBOLT,PLUG
-
9216192161-0329 DAMPER,STOPPERDAMPER,STOPPER
-
9221092210-0270 NUT,PISTONNUT,PISTON
-
92210A92210-0814 NUT,SPRING ADJUSTERNUT,SPRING ADJUSTER
-
92210B92210-0815 NUT,SPRING ADJUST NUTNUT,SPRING ADJUST NUT
