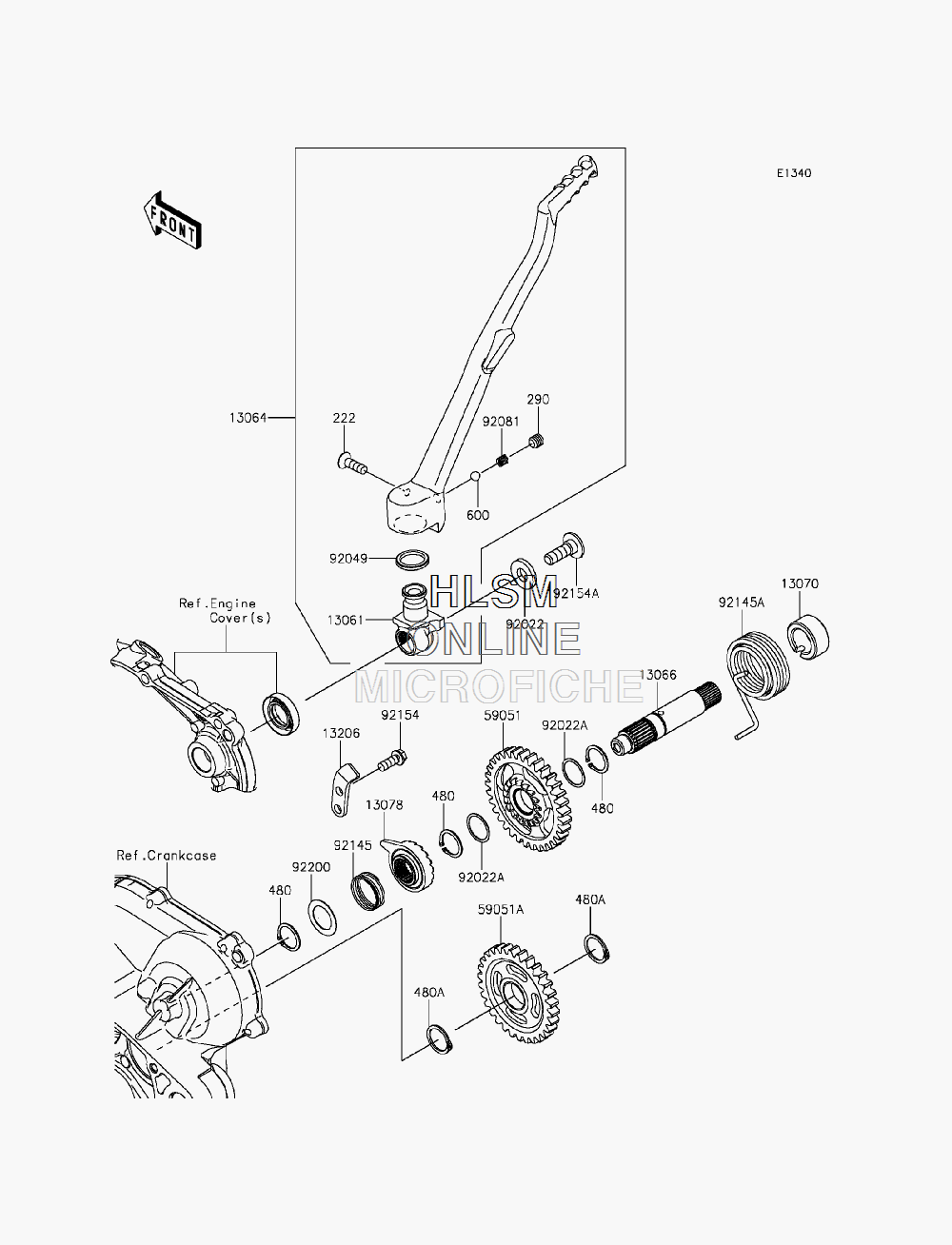

KICKSTARTER MECHANISM для Kawasaki KX450F (KX450HGF) - 2016 года выпуска
-
№АртикулНазвание
-
222222AA0620 SCREW-CSK-RD-CROS,6X20SCREW-CSK-RD-CROS,6X20
-
290290CA0808 SCREW-SET-SOCKET,8X8SCREW-SET-SOCKET,8X8
-
480480J1800 CIRCLIP-TYPE-C,18MMCIRCLIP-TYPE-C,18MM
-
480A480J1900 CIRCLIP-TYPE-C,19MMCIRCLIP-TYPE-C,19MM
-
600600A0800 BALL-STEEL,1/4BALL-STEEL,1/4
-
1306113061-0780 BOSSBOSS
-
1306413064-0075 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-0017 SHAFT-KICKSHAFT-KICK
-
1307013070-0815 GUIDEGUIDE
-
1307813078-0031 RATCHETRATCHET
-
1320613206-0007 GUIDE-KICKGUIDE-KICK
-
5905159051-0046 GEAR-SPUR,33TGEAR-SPUR,33T
-
59051A59051-0776 GEAR-SPUR,KICK IDLER,30TGEAR-SPUR,KICK IDLER,30T
-
9202292022-1944 WASHER,10X22X3.2WASHER,10X22X3.2
-
92022A92022-271 WASHER,18.3X22X0.5WASHER,18.3X22X0.5
-
9204992049-1387 SEAL-OIL,KICK PEDALSEAL-OIL,KICK PEDAL
-
9208192081-020 SPRING,KICK PEDALSPRING,KICK PEDAL
-
9214592145-0499 SPRINGSPRING
-
92145A92145-1668 SPRING, RETURNSPRING, RETURN
-
9215492154-1926 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
-
92154A92154-1943 BOLT,SOCKET,8X25BOLT,SOCKET,8X25
-
9220092200-0378 WASHER,18.3X27.5X0.5WASHER,18.3X27.5X0.5
