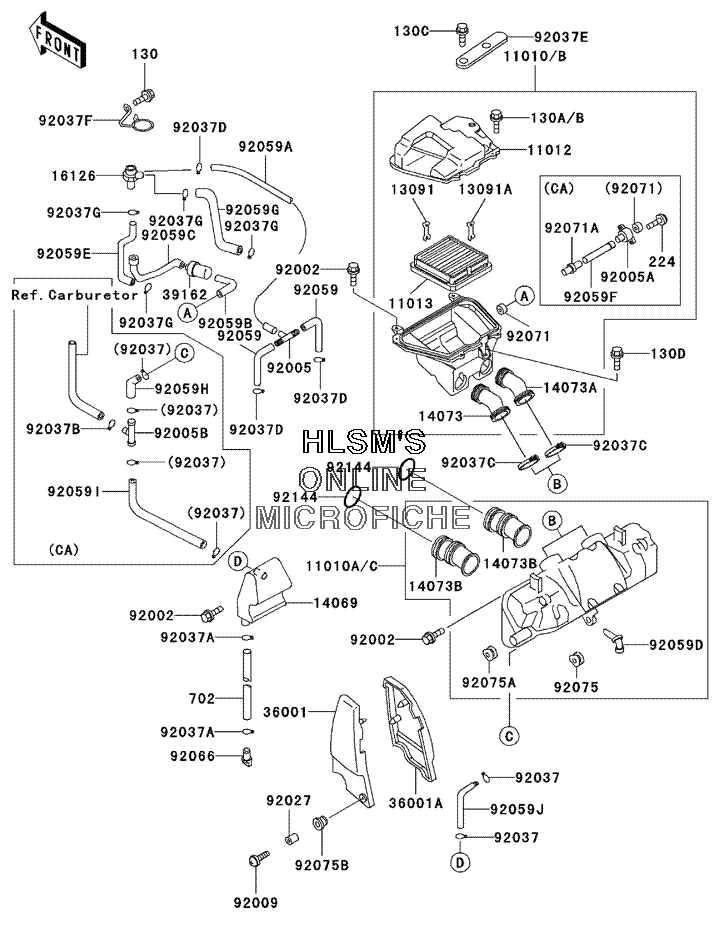

AIR CLEANER для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
1101011010-1273 FILTER, ASSY., AIR, UPPER (EXCEPT CALIF.)FILTER, ASSY., AIR, UPPER (EXCEPT CALIF.)
-
11010A11010-1274 FILTER, ASSY., AIR, LOWER (EXCEPT CALIF.)FILTER, ASSY., AIR, LOWER (EXCEPT CALIF.)
-
11010B11010-1297 FILTER, ASSY., AIR, UPPER (CALIF. ONLY)FILTER, ASSY., AIR, UPPER (CALIF. ONLY)
-
11010C11010-1314 FILTER, ASSY., AIR, LOWER (CALIF. ONLY)FILTER, ASSY., AIR, LOWER (CALIF. ONLY)
-
1101211012-1490 CAP, AIR FILTERCAP, AIR FILTER
-
1101311013-1137 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1309113091-1420 HOLDER, FRONTHOLDER, FRONT
-
13091A13091-1432 HOLDER, REARHOLDER, REAR
-
1406914069-1053 BREATHER, TANKBREATHER, TANK
-
1407314073-1241 DUCT (LEFT)DUCT (LEFT)
-
14073A14073-1242 DUCT (RIGHT)DUCT (RIGHT)
-
14073B14073-1255 DUCT, CARBURETORDUCT, CARBURETOR
-
1612616126-1005 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
3600136001-1334 COVER, SIDE, AIR FILTER (LEFT)COVER, SIDE, AIR FILTER (LEFT)
-
36001A36001-1335 COVER, SIDE, AIR FILTER (RIGHT)COVER, SIDE, AIR FILTER (RIGHT)
-
3916239162-1003 SILENCER, INTAKESILENCER, INTAKE
-
9200292002-1188 BOLT, 6X16BOLT, 6X16
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
92005A92005-1139 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
92005B92005-1149 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9200992009-1441 SCREW, 6X22SCREW, 6X22
-
9202792027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
9203792037-1104 CLAMP, HOSE (EXCEPT CALIF.)CLAMP, HOSE (EXCEPT CALIF.)
-
9203792037-1104 CLAMP, HOSE (CALIF. ONLY)CLAMP, HOSE (CALIF. ONLY)
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1482 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037C92037-1554 CLAMPCLAMP
-
92037D92037-1610 CLAMPCLAMP
-
92037E92037-1768 CLAMPCLAMP
-
92037F92037-1776 CLAMPCLAMP
-
92037G92037-213 CLAMP, TUBECLAMP, TUBE
-
9205992059-1033 TUBE, 4X9X155TUBE, 4X9X155
-
92059A92059-1162 TUBE, VACUUM, LONGTUBE, VACUUM, LONG
-
130130B0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130A130B0616 BOLT, FLANGED, 6X16 (CALIF. ONLY)BOLT, FLANGED, 6X16 (CALIF. ONLY)
-
130B130B0620 BOLT, FLANGED, 6X20 (EXCEPT CALIF.)BOLT, FLANGED, 6X20 (EXCEPT CALIF.)
-
130C130D0610 BOLT, FLANGEDBOLT, FLANGED
-
130D130G0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
224224C0614 SCREW, PAN, WP, CROS (CALIF. ONLY)SCREW, PAN, WP, CROS (CALIF. ONLY)
-
702702A07120 TUBE, RUBBER, 7X10X120TUBE, RUBBER, 7X10X120
-
92059B92059-1657 TUBETUBE
-
92059C92059-1658 TUBETUBE
-
92059D92059-1659 TUBETUBE
-
92059E92059-1668 TUBE, AIR SWITCH VALVE (LEFT)TUBE, AIR SWITCH VALVE (LEFT)
-
92059F92059-1699 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
92059G92059-1703 TUBE, AIR SWITCH VALVE (RIGHT)TUBE, AIR SWITCH VALVE (RIGHT)
-
92059H92059-1742 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
92059I92059-1743 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
92059J92059-1750 TUBE, 7X12X230 (EXCEPT CALIF.)TUBE, 7X12X230 (EXCEPT CALIF.)
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207192071-1028 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
92071A92071-1132 GROMMET (CALIF. ONLY)GROMMET (CALIF. ONLY)
-
9207592075-1126 DAMPER, FILTER COVERDAMPER, FILTER COVER
-
92075A92075-1470 DAMPERDAMPER
-
92075B92075-174 DAMPER, MALEDAMPER, MALE
-
9214492144-1771 SPRING, AIR FILTER DUCTSPRING, AIR FILTER DUCT
