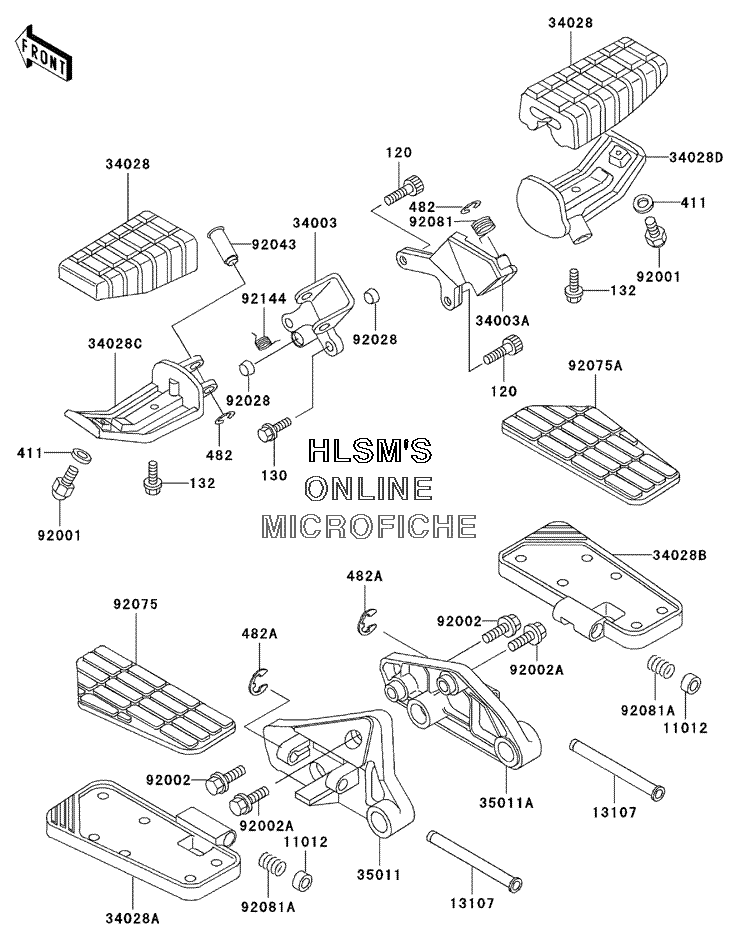

FOOTRESTS для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
120120S0814 BOLT, SOCKETBOLT, SOCKET
-
130130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
411411B0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
482A482L0200 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
1101211012-1498 CAP, MUFFLER STAYCAP, MUFFLER STAY
-
1310713107-1174 SHAFT, REAR STEPSHAFT, REAR STEP
-
3400334003-1253 HOLDER, STEP, FRONT (LEFT)HOLDER, STEP, FRONT (LEFT)
-
34003A34003-1254 HOLDER, STEP, FRONT (RIGHT)HOLDER, STEP, FRONT (RIGHT)
-
3402834028-1205 STEP, FRONT, RUBBERSTEP, FRONT, RUBBER
-
34028A34028-1231 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028B34028-1232 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028C34028-1381 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028D34028-1382 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
3501135011-1672 STAY, MUFFLER (LEFT)STAY, MUFFLER (LEFT)
-
35011A35011-1673 STAY, MUFFLER (RIGHT)STAY, MUFFLER (RIGHT)
-
9200192001-1905 BOLT, BANK SENSORBOLT, BANK SENSOR
-
9200292002-1828 BOLT, FLANGED, 10X25BOLT, FLANGED, 10X25
-
92002A92002-1829 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
9202892028-1251 BUSHING, 13X15X20BUSHING, 13X15X20
-
9204392043-1144 PIN, 12X37PIN, 12X37
-
9207592075-1803 DAMPER, REAR STEP (LEFT) RUBBERDAMPER, REAR STEP (LEFT) RUBBER
-
92075A92075-1804 DAMPER, REAR STEP (RIGHT) RUBBERDAMPER, REAR STEP (RIGHT) RUBBER
-
9208192081-1956 SPRING, STEP RETURNSPRING, STEP RETURN
-
92081A92081-1957 SPRING, REAR STEPSPRING, REAR STEP
-
9214492144-1568 SPRING, STEP RETURNSPRING, STEP RETURN
