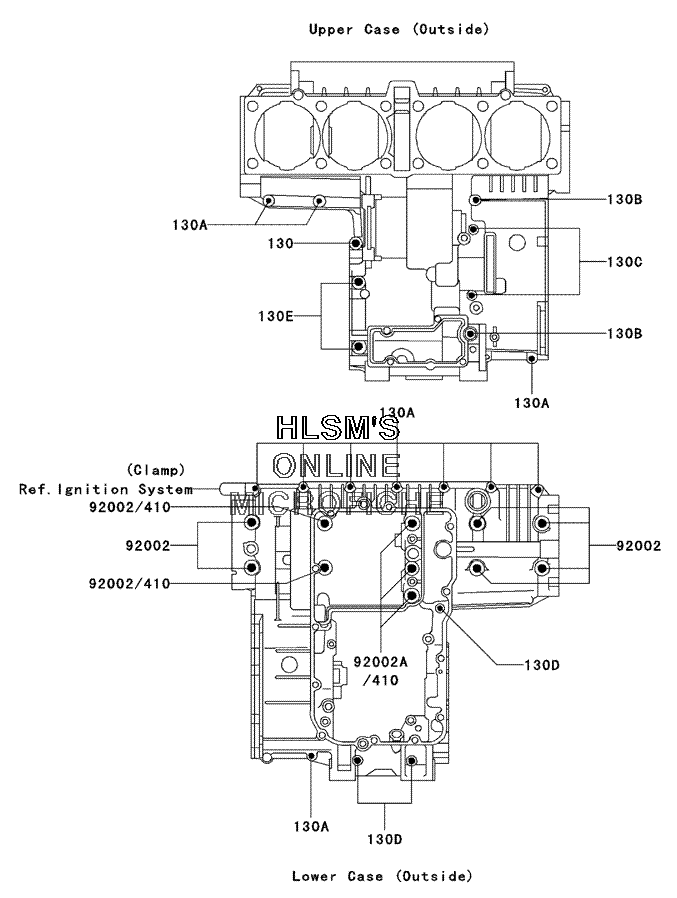

CRANKCASE BOLT PATTERN для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
130130Y0635 BOLT, FLANGEDBOLT, FLANGED
-
130A130Y0640 BOLT, FLANGEDBOLT, FLANGED
-
130B130Y0690 BOLT, FLANGEDBOLT, FLANGED
-
130C130Z06105 BOLT, FLANGEDBOLT, FLANGED
-
130D130Z06120 BOLT, FLANGEDBOLT, FLANGED
-
130E130Z0870 BOLT, FLANGEDBOLT, FLANGED
-
410410B1000 WASHER, PLAIN, SMALL, 10MMWASHER, PLAIN, SMALL, 10MM
-
9200292002-1651 BOLT, 10X95BOLT, 10X95
-
92002A92002-1652 BOLT, 10X145BOLT, 10X145
