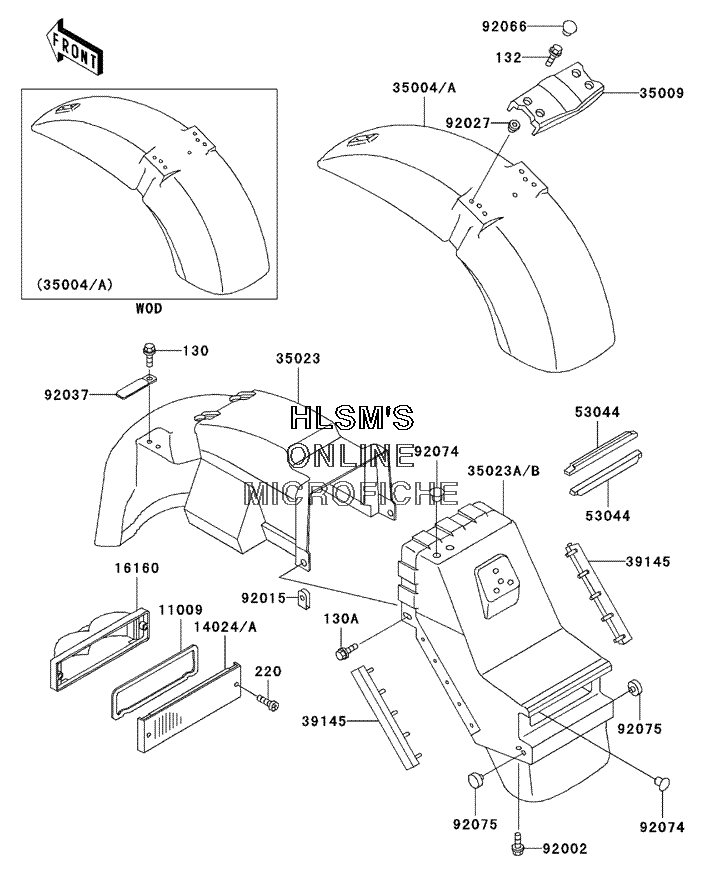

FENDER(S) для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
130130B0614 BOLT, FLANGEDBOLT, FLANGED
-
130A130B0620 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
132132G0835 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0525 SCREW, PAN, CROS, 5X25SCREW, PAN, CROS, 5X25
-
1100911009-1582 GASKET, TAIL LAMP LENSGASKET, TAIL LAMP LENS
-
1402414024-1680-P5 COVER, TAIL ACCESSORY (L.V.RED)COVER, TAIL ACCESSORY (L.V.RED)
-
1616016160-1148 BODY, TAIL ACCESSORYBODY, TAIL ACCESSORY
-
3500435004-1180-2T FENDER, FRONT (L.V.RED)FENDER, FRONT (L.V.RED)
-
3500935009-1103 BRACE, FRONT FENDERBRACE, FRONT FENDER
-
3502335023-1148 FENDER, REAR, FRONTFENDER, REAR, FRONT
-
35023A35023-1149-2T FENDER, REAR, REAR (L.V.RED)FENDER, REAR, REAR (L.V.RED)
-
3914539145-1070 TRIM, SEAL, REAR FENDERTRIM, SEAL, REAR FENDER
-
5304453044-1183 TRIM, REAR FENDERTRIM, REAR FENDER
-
9200292002-1246 BOLT, 6X20BOLT, 6X20
-
9201592015-1248 NUTNUT
-
9202792027-1745 COLLARCOLLAR
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
9206692066-1234 PLUG, 18.3X4.5PLUG, 18.3X4.5
-
9207492074-038 PLUG, 11X3.2PLUG, 11X3.2
-
9207592075-005 DAMPERDAMPER
