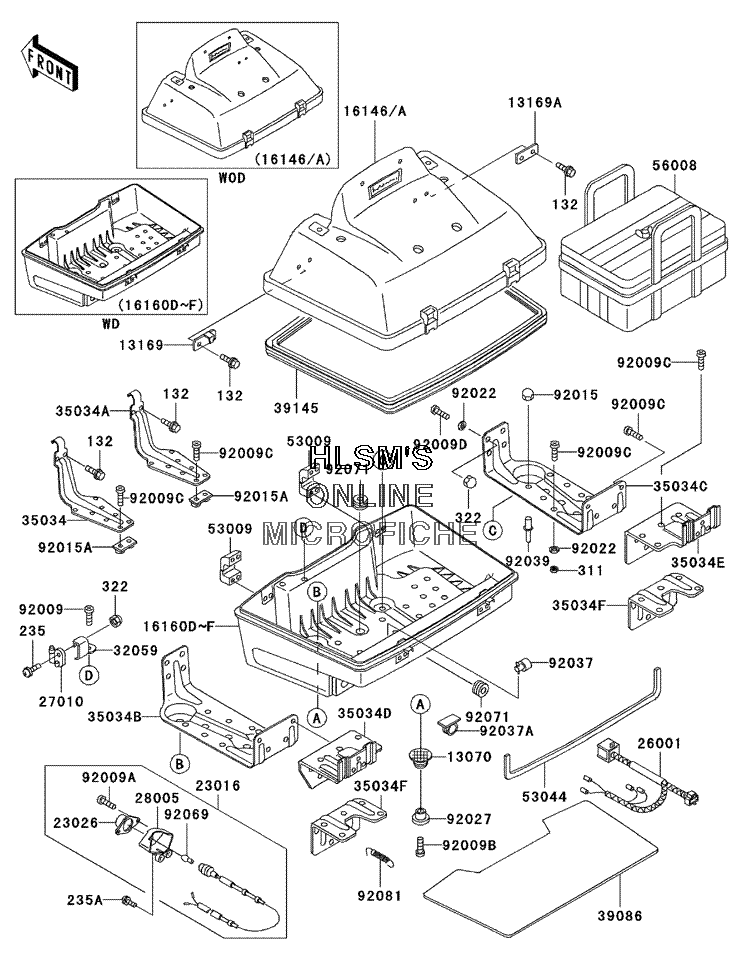

TRUNK для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
1307013070-1149 GUIDEGUIDE
-
1316913169-1635 PLATE, HINGE (LEFT)PLATE, HINGE (LEFT)
-
13169A13169-1636 PLATE, HINGE (RIGHT)PLATE, HINGE (RIGHT)
-
1614616146-1085-P5 COVER, ASSY., TRUNK (L.V.RED)COVER, ASSY., TRUNK (L.V.RED)
-
16160E16160-5037-216 BODY, TRUNK (RED/SILVER)BODY, TRUNK (RED/SILVER)
-
2301623016-1066 LAMP, ASSY., TRUNK ROOMLAMP, ASSY., TRUNK ROOM
-
2302623026-1054 LENS, LAMPLENS, LAMP
-
2600126001-1758 HARNESS, TRUNKHARNESS, TRUNK
-
2701027010-1185 SWITCH, BRAKE/SIDE STANDSWITCH, BRAKE/SIDE STAND
-
2800528005-1054 BODY, LAMP, TRUNK ROOMBODY, LAMP, TRUNK ROOM
-
3205932059-1067 BRACKET, SWITCHBRACKET, SWITCH
-
3503435034-1213 REINFORCE, HINGE (LEFT)REINFORCE, HINGE (LEFT)
-
35034A35034-1214 REINFORCE, HINGE (RIGHT)REINFORCE, HINGE (RIGHT)
-
35034B35034-1215 REINFORCE, BAG (LEFT)REINFORCE, BAG (LEFT)
-
35034C35034-1216 REINFORCE, BAG (RIGHT)REINFORCE, BAG (RIGHT)
-
35034D35034-1217 REINFORCE, TAIL (LEFT)REINFORCE, TAIL (LEFT)
-
35034E35034-1218 REINFORCE, TAIL (RIGHT)REINFORCE, TAIL (RIGHT)
-
35034F35034-1219 REINFORCE, TAIL, LOWERREINFORCE, TAIL, LOWER
-
3908639086-1051 PAD, STORAGE, TRUNKPAD, STORAGE, TRUNK
-
3914539145-1087 TRIM, SEAL, TRUNKTRIM, SEAL, TRUNK
-
5300953009-1071 HINGE, TRUNKHINGE, TRUNK
-
5304453044-1142 TRIM, TAIL LAMPTRIM, TAIL LAMP
-
5600856008-1060 BAG, INNERBAG, INNER
-
9200992009-1332 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
92009A92009-1381 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009B92009-1400 SCREW, 6X28 (BLACK)SCREW, 6X28 (BLACK)
-
92009C92009-1448 SCREW, 4X12SCREW, 4X12
-
92009D92009-1489 SCREW, 4X10SCREW, 4X10
-
9201592015-1262 NUT, LOCK 6MMNUT, LOCK 6MM
-
132132J0512 BOLT, FLANGED, SMALL, 5X12BOLT, FLANGED, SMALL, 5X12
-
235235C0414 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
235A235C0430 SCREW, PAN, WP, CROSSCREW, PAN, WP, CROS
-
311311C0400 NUT, HEXNUT, HEX
-
322322C0400 NUT, CAP, 4MMNUT, CAP, 4MM
-
92015A92015-1620 NUT, PLATE, 4MMNUT, PLATE, 4MM
-
9202292022-1830 WASHER, 4.3X12X0.8WASHER, 4.3X12X0.8
-
9202792027-195 COLLAR, L=21COLLAR, L=21
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
92037A92037-1793 CLAMP, HARNESSCLAMP, HARNESS
-
9203992039-1150 RIVETRIVET
-
9206992069-1066 BULB, 12V 3CPBULB, 12V 3CP
-
9207192071-1136 GROMMETGROMMET
-
9208192081-1954 SPRING, HARNESS GUIDESPRING, HARNESS GUIDE
