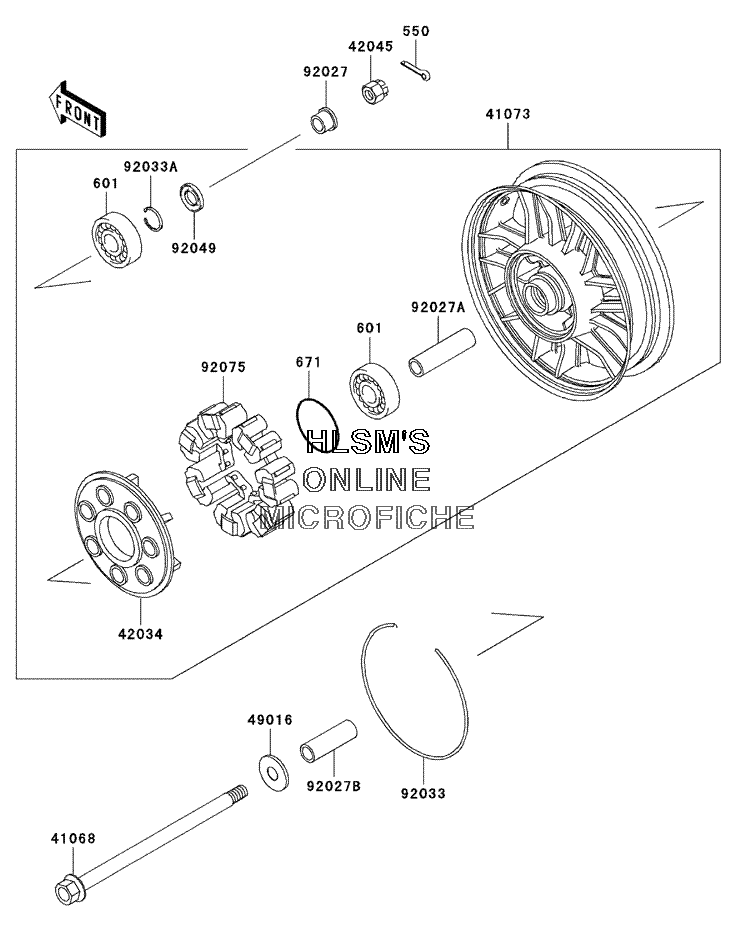

WHEEL - REAR W/ CHAIN для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6304UU BEARING, BALL, #6304UUC3BEARING, BALL, #6304UUC3
-
671671B2580 O-RING, 80MMO-RING, 80MM
-
4106841068-1197 AXLE, REARAXLE, REAR
-
4107341073-1553-V8 WHEEL, ASSY., REAR (GRAY NO.1)WHEEL, ASSY., REAR (GRAY NO.1)
-
4203442034-1011 COUPLING, REAR HUBCOUPLING, REAR HUB
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4901649016-1019 COVER, SEALCOVER, SEAL
-
9202792027-1792 COLLAR, REAR AXLE, L=20COLLAR, REAR AXLE, L=20
-
92027A92027-1901 COLLAR, 20.2X28X105.5COLLAR, 20.2X28X105.5
-
92027B92027-1969 COLLAR, 20.2X28X86COLLAR, 20.2X28X86
-
9203392033-1019 RING, SNAPRING, SNAP
-
92033A92033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1061 SEAL, OIL, 28X52X5SEAL, OIL, 28X52X5
-
9207592075-1121 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
