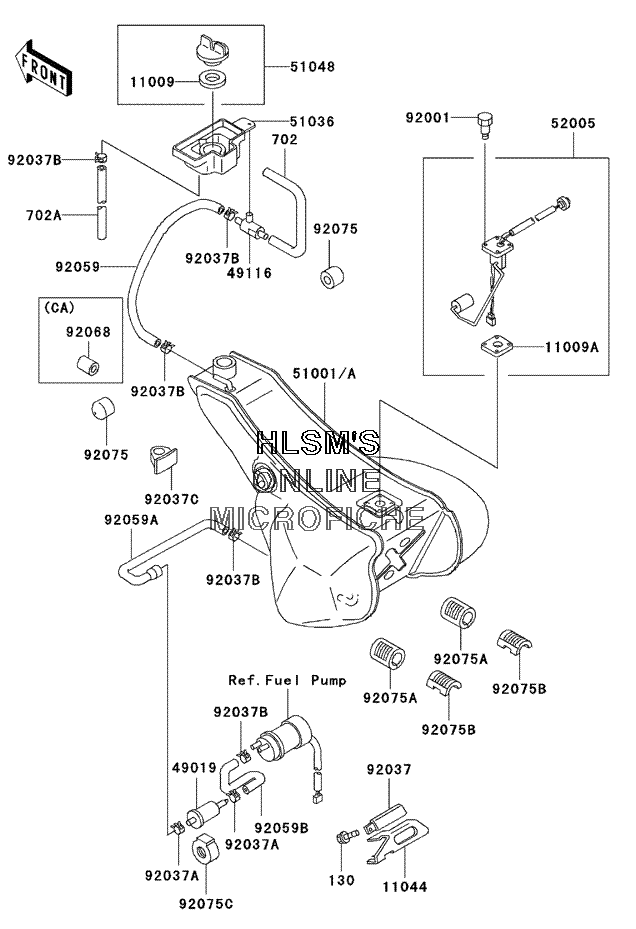

FUEL TANK для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
130130B0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
702702A05170 TUBE, RUBBER, 5X170 (EXCEPT CALIF.)TUBE, RUBBER, 5X170 (EXCEPT CALIF.)
-
702A702A07720 TUBE, RUBBER, 7X720TUBE, RUBBER, 7X720
-
1100911009-1326 GASKET, TANK CAPGASKET, TANK CAP
-
11009A11009-1656 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1104411044-1743 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
4901949019-1055 FILTER, FUELFILTER, FUEL
-
4911649116-1063 VALVE, ASSY., BREATHERVALVE, ASSY., BREATHER
-
5100151001-1444 TANK, COMP, FUEL (EXCEPT CALIF.)TANK, COMP, FUEL (EXCEPT CALIF.)
-
51001A51001-1445 TANK, COMP, FUEL (CALIF. ONLY)TANK, COMP, FUEL (CALIF. ONLY)
-
5103651036-1054 CUP, FUEL TANKCUP, FUEL TANK
-
5104851048-1070 CAP, ASSY., TANK, FUELCAP, ASSY., TANK, FUEL
-
5200552005-1076 GAUGE, FUELGAUGE, FUEL
-
9200192001-1705 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
92037A92037-1181 CLAMPCLAMP
-
92037B92037-1505 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1794 CLAMP, TUBECLAMP, TUBE
-
9205992059-1392 TUBE, 5.8X11.5X260TUBE, 5.8X11.5X260
-
92059A92059-1724 TUBETUBE
-
92059B92059-1725 TUBETUBE
-
9206892068-006 PLUG, 12X25 (CALIF. ONLY)PLUG, 12X25 (CALIF. ONLY)
-
9207592075-044 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-084 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075B92075-1806 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075C92075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
