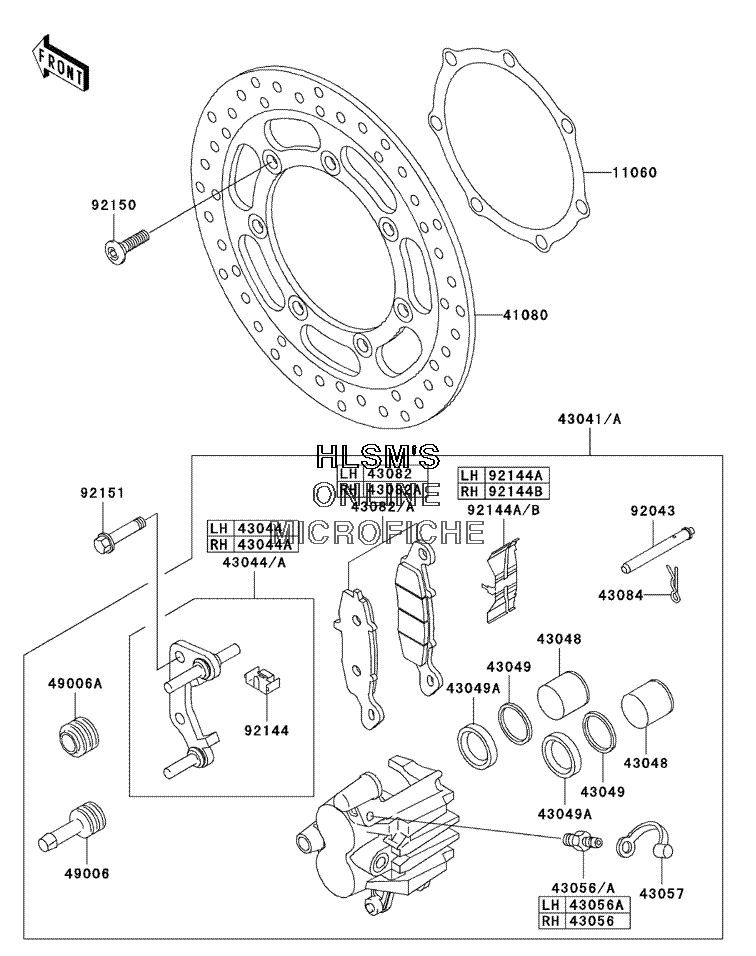

BRAKE - FRONT для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
1106011060-1865 GASKET, DISCGASKET, DISC
-
4108041080-1447-CM DISC, FRONT (SILVER)DISC, FRONT (SILVER)
-
4304143041-1715-GN CALIPER, ASSY., FRONT (LEFT) (SILVER)CALIPER, ASSY., FRONT (LEFT) (SILVER)
-
43041A43041-1716-GN CALIPER, ASSY., FRONT (RIGHT) (SILVER)CALIPER, ASSY., FRONT (RIGHT) (SILVER)
-
4304443044-1117 HOLDER, COMP, CALIPER, FRONT (LEFT)HOLDER, COMP, CALIPER, FRONT (LEFT)
-
43044A43044-1129 HOLDER, COMP, CALIPERHOLDER, COMP, CALIPER
-
4304843048-1052 PISTON, CALIPERPISTON, CALIPER
-
4304943049-1055 PACKING, PISTONPACKING, PISTON
-
43049A43049-1096 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-003 BREATHERBREATHER
-
43056A43056-1054 BREATHER, BRAKEBREATHER, BRAKE
-
4305743057-003 CAP, BREATHERCAP, BREATHER
-
4308243082-1245 PAD, ASSY., BRAKEPAD, ASSY., BRAKE
-
43082A43082-1246 PAD, ASSY., BRAKEPAD, ASSY., BRAKE
-
4308443084-003 CLAMP, PADCLAMP, PAD
-
4900649006-1054 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1095 BOOT, CALIPERBOOT, CALIPER
-
9204392043-1489 PIN, PADPIN, PAD
-
9214492144-1831 SPRING, STOPPERSPRING, STOPPER
-
92144A92144-1832 SPRING, PAD (LEFT)SPRING, PAD (LEFT)
-
92144B92144-1844 SPRING, PAD (RIGHT)SPRING, PAD (RIGHT)
-
9215092150-1771 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215192151-1321 BOLT, FLANGED, 10X47BOLT, FLANGED, 10X47
