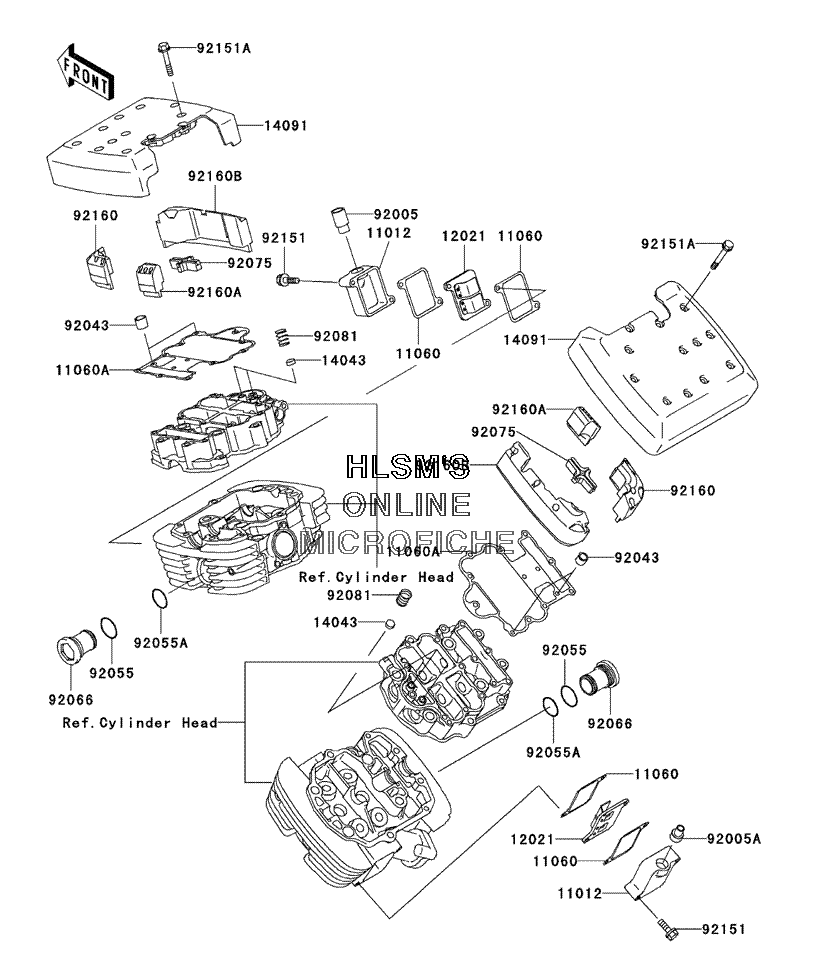

CYLINDER HEAD COVER для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
1101211012-1953 CAP, REED VALVECAP, REED VALVE
-
1106011060-1733 GASKET, REED VALVE CAPGASKET, REED VALVE CAP
-
11060A11060-1917 GASKET, ROCKER CASE COVERGASKET, ROCKER CASE COVER
-
1202112021-1108 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1404314043-1056 FILTER, OILFILTER, OIL
-
1409114091-1167 COVER, ROCKER CASECOVER, ROCKER CASE
-
9200592005-1006 FITTING, REED VALVEFITTING, REED VALVE
-
92005A92005-1363 FITTINGFITTING
-
9204392043-1262 PIN, 4.2X6X12PIN, 4.2X6X12
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1272 O-RING, 27.7X1.9O-RING, 27.7X1.9
-
9206692066-1445 PLUG, SLEEVEPLUG, SLEEVE
-
9207592075-1998 DAMPERDAMPER
-
9208192081-1776 SPO-RINGIL FILTERSPO-RINGIL FILTER
-
9215192151-1059 BOLT, 6X45BOLT, 6X45
-
92151A92151-1252 BOLT, 6X20BOLT, 6X20
-
9216092160-1698 DAMPERDAMPER
-
92160A92160-1699 DAMPERDAMPER
-
92160B92160-1711 DAMPERDAMPER
