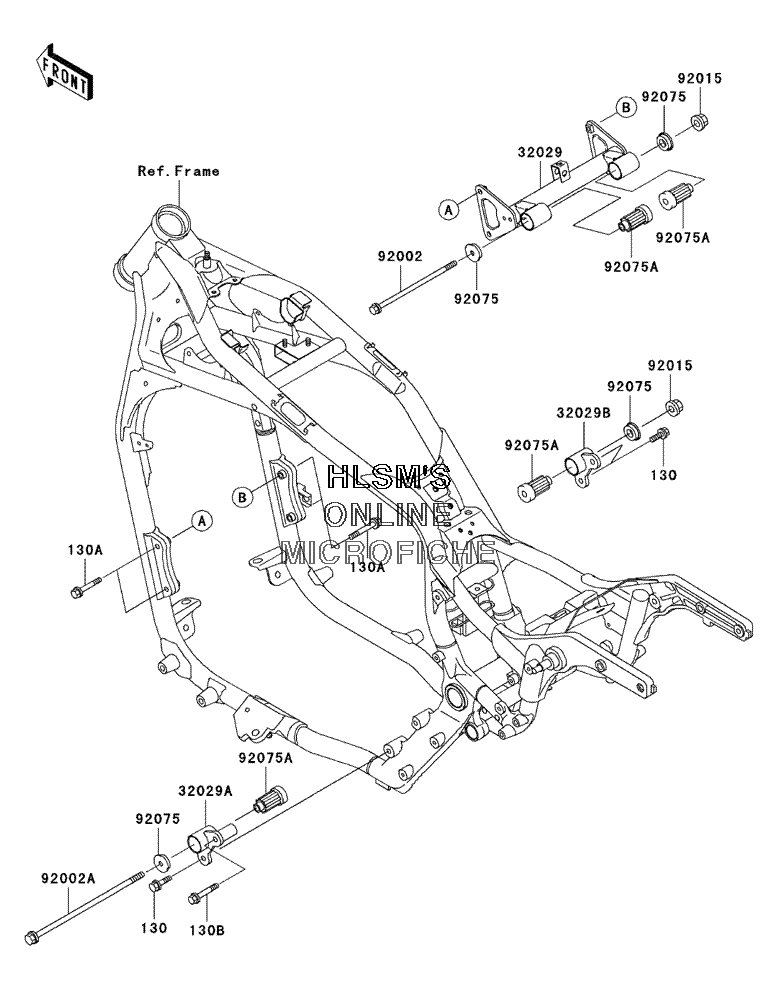

ENGINE MOUNT для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
130130J0825 BOLT, FLANGED, 8X25 (BLACK)BOLT, FLANGED, 8X25 (BLACK)
-
130A130J0840 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
130B130J0860 BOLT, FLANGEDBOLT, FLANGED
-
3202932029-1985 BRACKET, ENGINE, FRONTBRACKET, ENGINE, FRONT
-
32029A32029-1986 BRACKET, ENGINE, REAR (LEFT)BRACKET, ENGINE, REAR (LEFT)
-
32029B32029-1987 BRACKET, ENGINE, REAR (RIGHT)BRACKET, ENGINE, REAR (RIGHT)
-
9200292002-1206 BOLT, FLANGED, 10X285BOLT, FLANGED, 10X285
-
92002A92002-1540 BOLT, FLANGED, 10X330BOLT, FLANGED, 10X330
-
9201592015-1180 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9207592075-1738 DAMPER, ENGINE BRACKETDAMPER, ENGINE BRACKET
-
92075A92075-1739 DAMPER, ENGINE MOUNT, MAINDAMPER, ENGINE MOUNT, MAIN
