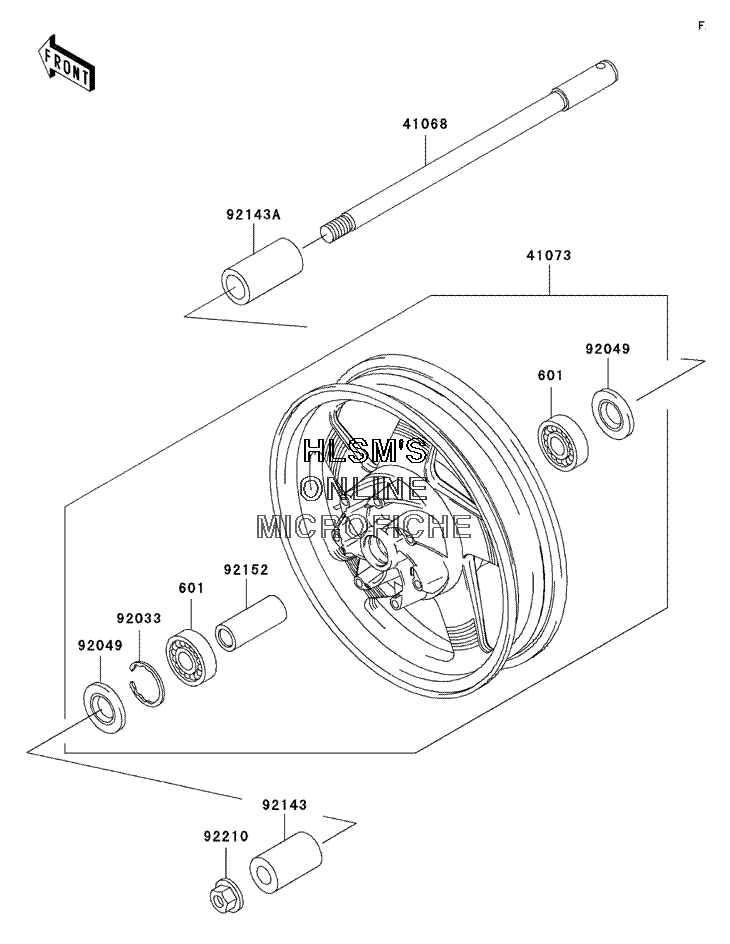

WHEEL - FRONT для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
601601B6004UU BEARING, BALL, #6004UUC3BEARING, BALL, #6004UUC3
-
4106841068-1411 AXLE, FRONTAXLE, FRONT
-
4107341073-1666-CX WHEEL, ASSY., FRONT (SILVER)WHEEL, ASSY., FRONT (SILVER)
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204992049-1057 SEAL, OIL, BJN30427, C3SEAL, OIL, BJN30427, C3
-
9214392143-1837 COLLAR, FRONT AXLE (LEFT) L=48.5COLLAR, FRONT AXLE (LEFT) L=48.5
-
92143A92143-1854 COLLAR, FRONT AXLE (RIGHT) L=57.5COLLAR, FRONT AXLE (RIGHT) L=57.5
-
9215292152-1057 COLLAR, FRONT HUB, L=100COLLAR, FRONT HUB, L=100
-
9221092210-1158 NUT, FLANGED, 18MMNUT, FLANGED, 18MM
