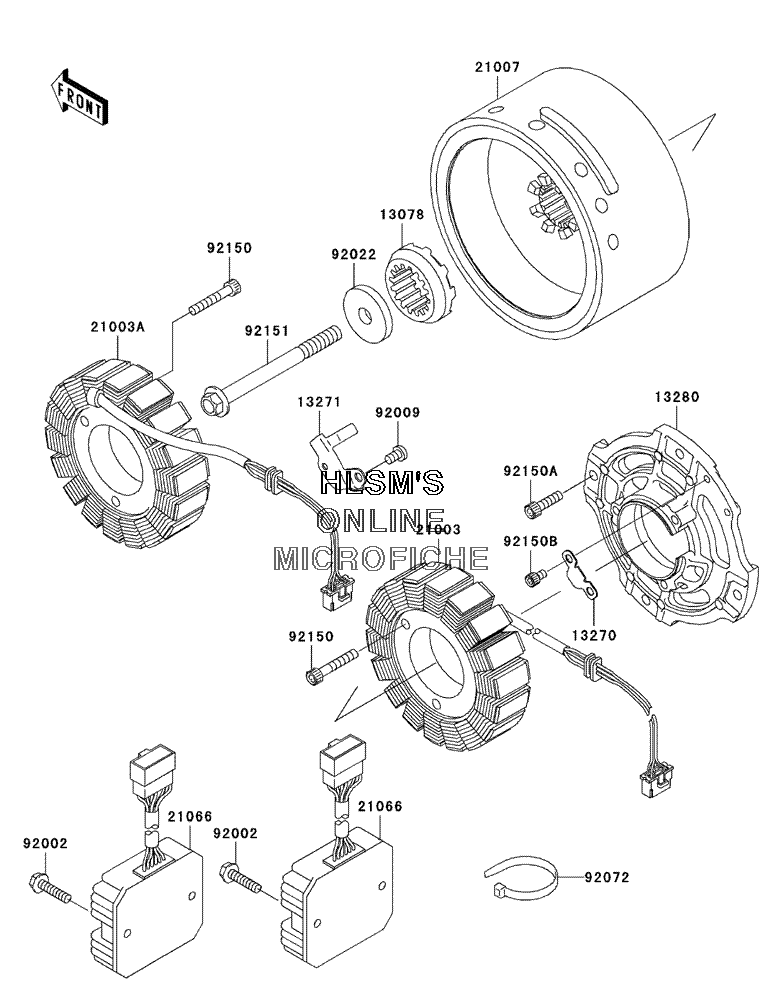

GENERATOR для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
1307813078-1066 RATCHETRATCHET
-
1327013270-1925 PLATEPLATE
-
1327113271-1325 PLATEPLATE
-
1328013280-1069 HOLDERHOLDER
-
2100321003-1372 STATOR, INNERSTATOR, INNER
-
21003A21003-1373 STATOR, OUTERSTATOR, OUTER
-
2100721007-1369 ROTORROTOR
-
2106621066-1106 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
9200292002-1086 BOLT, 6X25BOLT, 6X25
-
9200992009-1768 SCREWSCREW
-
9202292022-1904 WASHER, GENERATORWASHER, GENERATOR
-
9207292072-1195 BAND, L=202BAND, L=202
-
9215092150-1484 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
92150A92150-1654 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
92150B92150-1955 BOLT, 5X8BOLT, 5X8
-
9215192151-1386 BOLT, 12X120BOLT, 12X120
