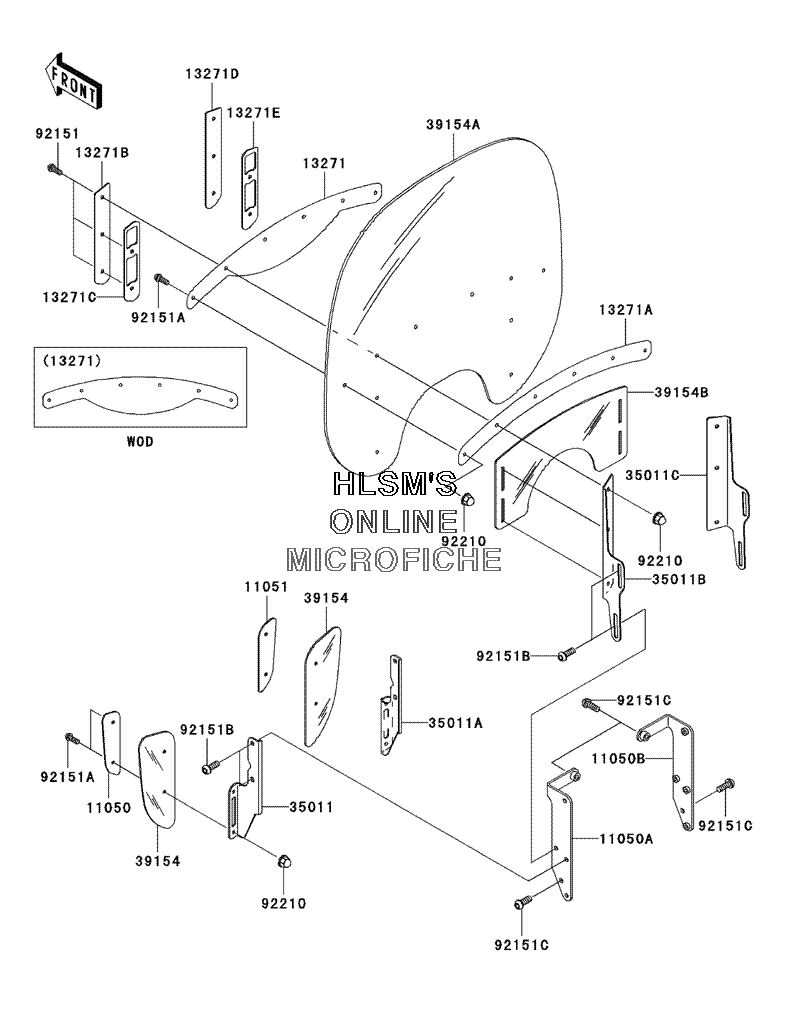

COWLING для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
1105011050-1750 BRACKET, DEFLECTOR (LEFT)BRACKET, DEFLECTOR (LEFT)
-
11050A11050-1891 BRACKET, WINDSHIELD (LEFT)BRACKET, WINDSHIELD (LEFT)
-
11050B11050-1892 BRACKET, WINDSHIELD (RIGHT)BRACKET, WINDSHIELD (RIGHT)
-
1105111051-1061 BRACKT, DEFRECTOR (RIGHT)BRACKT, DEFRECTOR (RIGHT)
-
1327113271-1089 PLATE, WINDSHIELD, CENTER, OUTERPLATE, WINDSHIELD, CENTER, OUTER
-
13271A13271-1090 PLATE, WINDSHIELD, CENTER, INNERPLATE, WINDSHIELD, CENTER, INNER
-
13271B13271-1093 PLATE, WINDSHIELD, OUTER (LEFT)PLATE, WINDSHIELD, OUTER (LEFT)
-
13271C13271-1094 PLATE, WINDSHIELD, INNER (LEFT)PLATE, WINDSHIELD, INNER (LEFT)
-
13271D13271-1095 PLATE, WINDSHIELD, OUTER (RIGHT)PLATE, WINDSHIELD, OUTER (RIGHT)
-
13271E13271-1096 PLATE, WINDSHIELD, INNER (RIGHT)PLATE, WINDSHIELD, INNER (RIGHT)
-
3501135011-1916 STAY, DEFLECTOR (LEFT)STAY, DEFLECTOR (LEFT)
-
35011A35011-1917 STAY, DEFLECTOR (RIGHT)STAY, DEFLECTOR (RIGHT)
-
35011B35011-1944 STAY, WINDSHIELD (LEFT)STAY, WINDSHIELD (LEFT)
-
35011C35011-1945 STAY, WINDSHIELD (RIGHT)STAY, WINDSHIELD (RIGHT)
-
3915439154-1139 WINDSHIELD, DEFLECTORWINDSHIELD, DEFLECTOR
-
39154A39154-1141 WINDSHIELD, MAINWINDSHIELD, MAIN
-
39154B39154-1142 WINDSHIELD, SUBWINDSHIELD, SUB
-
9215192151-1750 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92151A92151-1751 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92151B92151-1752 BOLT, SOCKET, 8X16BOLT, SOCKET, 8X16
-
92151C92151-1753 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9221092210-1129 NUT, CAP, 6MMNUT, CAP, 6MM
