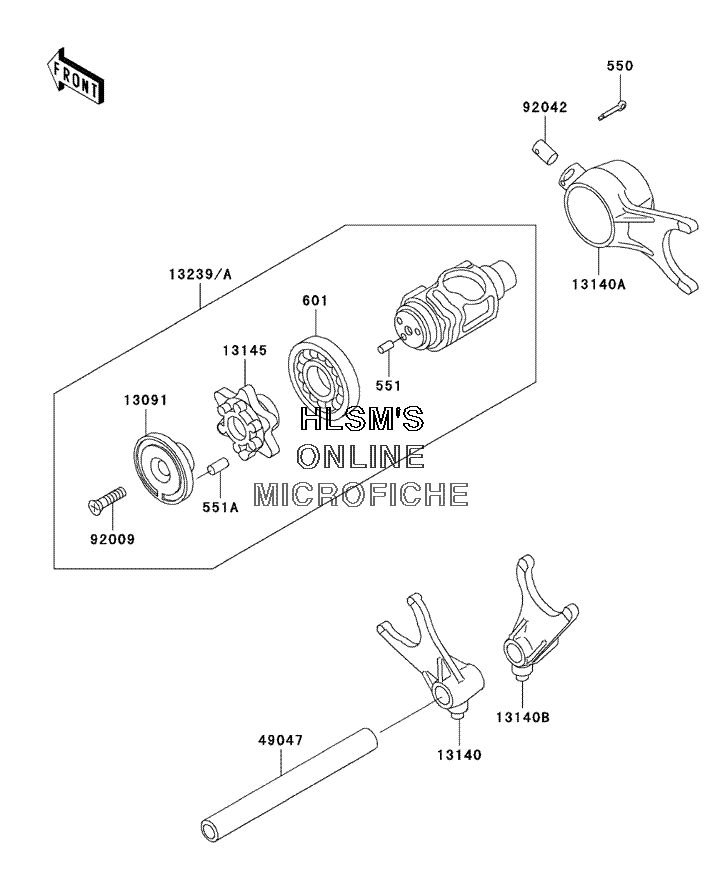

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Vulcan 1500 Nomad Fi - 2002 года выпуска
-
№АртикулНазвание
-
550550D3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
-
551551A0408 PIN, DOWEL, 4X8PIN, DOWEL, 4X8
-
551A551A0412 PIN, DOWELPIN, DOWEL
-
601601A6005 BEARING, BALLBEARING, BALL
-
1309113091-1104 HOLDER, CHANGE DRUM PINHOLDER, CHANGE DRUM PIN
-
1314013140-1270 FORK, SHIFT, OUTERPUT TOPFORK, SHIFT, OUTERPUT TOP
-
13140A13140-1292 FORK, SHIFT, INPUT 3RDFORK, SHIFT, INPUT 3RD
-
13140B13140-1293 FORK, SHIFT, OUTERPUT 4THFORK, SHIFT, OUTERPUT 4TH
-
1314513145-1089 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
13239A13239-1210 DRUM, ASSY., CHANGEDRUM, ASSY., CHANGE
-
4904749047-1095 ROD, SHIFTROD, SHIFT
-
9200992009-1599 SCREW, 6X45SCREW, 6X45
-
9204292042-021 PIN, DOWEL, 8X18PIN, DOWEL, 8X18
