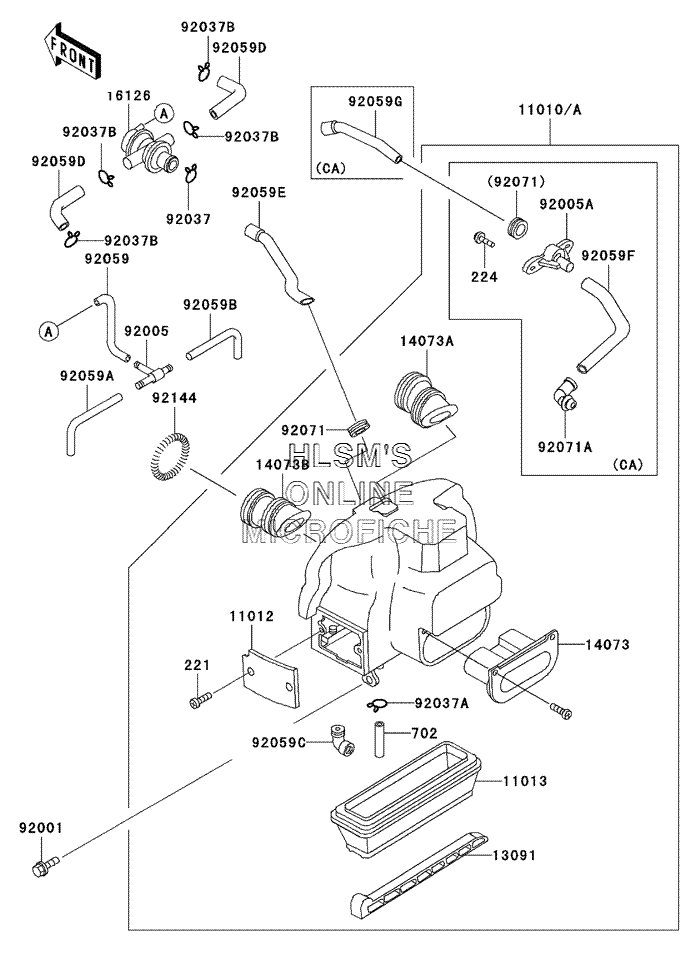

AIR CLEANER для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
1101011010-1299 FILTER, ASSY, AIR (EXCEPT CALIF.)FILTER, ASSY, AIR (EXCEPT CALIF.)
-
11010A11010-1300 FILTER, ASSY, AIR (CALIF. ONLY)FILTER, ASSY, AIR (CALIF. ONLY)
-
1101211012-1373 CAP, AIR FILTERCAP, AIR FILTER
-
1101311013-1112 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1309113091-1277 HOLDER, ELEMENTHOLDER, ELEMENT
-
1407314073-1179 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
14073A14073-1224 DUCT, #1, #3DUCT, #1, #3
-
14073B14073-1225 DUCT, #2, #4DUCT, #2, #4
-
1612616126-1144 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
9200192001-1950 BOLT, 6X16BOLT, 6X16
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
92005A92005-1139 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1076 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1972 CLAMP, TUBECLAMP, TUBE
-
92037B92037-213 CLAMP, TUBECLAMP, TUBE
-
9205992059-1032 TUBE, 4X9X190TUBE, 4X9X190
-
92059A92059-1068 TUBE, 4X9X230TUBE, 4X9X230
-
92059B92059-1365 TUBE, 4X9X80TUBE, 4X9X80
-
92059C92059-1391 TUBE, BREATHERTUBE, BREATHER
-
92059D92059-1629 TUBETUBE
-
92059E92059-1630 TUBE (EXCEPT CALIF.)TUBE (EXCEPT CALIF.)
-
92059F92059-1640 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
92059G92059-1648 TUBE (CALIF. ONLY)TUBE (CALIF. ONLY)
-
9207192071-1042 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
92071A92071-1133 GROMMET, AIR FILTER (CALIF. ONLY)GROMMET, AIR FILTER (CALIF. ONLY)
-
9214492144-1771 SPRING, AIR FILTER DUCTSPRING, AIR FILTER DUCT
-
221221C0616 SCREW, CSK, CROSSCREW, CSK, CROS
-
224224C0614 SCREW, PAN, WP, CROS (CALIF. ONLY)SCREW, PAN, WP, CROS (CALIF. ONLY)
-
702702A07480 TUBE, RUBBERTUBE, RUBBER
