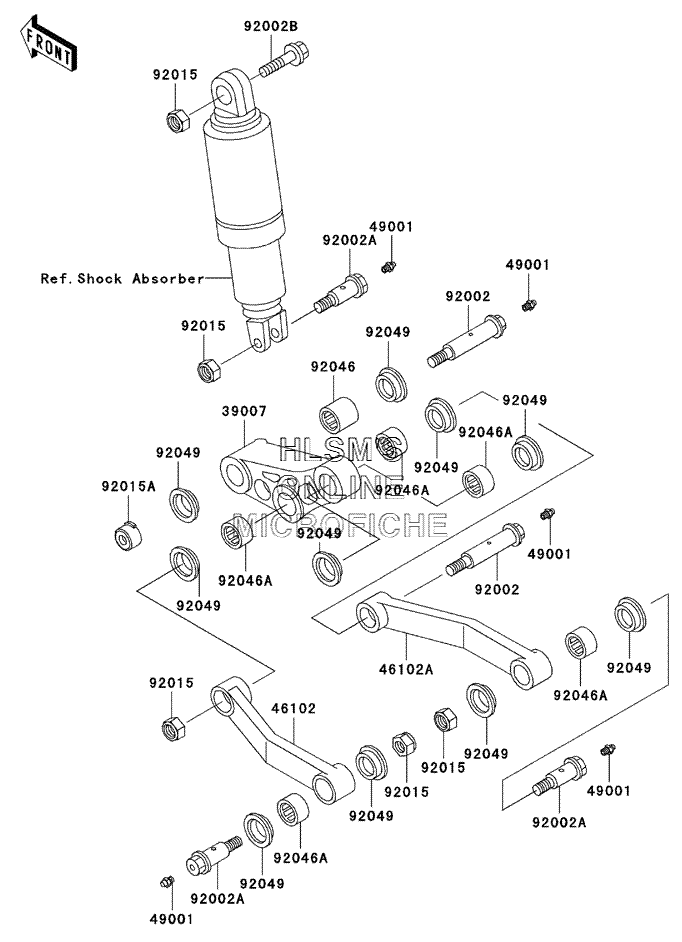

SUSPENSION - REAR для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
3900739007-1094 ARM, SUSPENSION, UNI TRAKARM, SUSPENSION, UNI TRAK
-
4610246102-1175 ROD, SUSPENSION (LEFT)ROD, SUSPENSION (LEFT)
-
46102A46102-1176 ROD, SUSPENSION (RIGHT)ROD, SUSPENSION (RIGHT)
-
4900149001-0001 NIPPLE, GREASENIPPLE, GREASE
-
9200292002-1709 BOLT, SUSPENSION ARMBOLT, SUSPENSION ARM
-
92002A92002-1710 BOLT, SUSPENSION ARMBOLT, SUSPENSION ARM
-
92002B92002-1727 BOLT, FLANGED, 12X50BOLT, FLANGED, 12X50
-
9201592015-1190 NUT, LOCK, 12MM (BLACK)NUT, LOCK, 12MM (BLACK)
-
92015A92015-1482 NUT, 12MMNUT, 12MM
-
9204692046-1110 BEARING, NEEDLE, BM202726BEARING, NEEDLE, BM202726
-
92046A92046-1112 BEARING, NEEDLE, BM202715BEARING, NEEDLE, BM202715
-
9204992049-1109 SEAL, OIL, ARM, CENTERSEAL, OIL, ARM, CENTER
