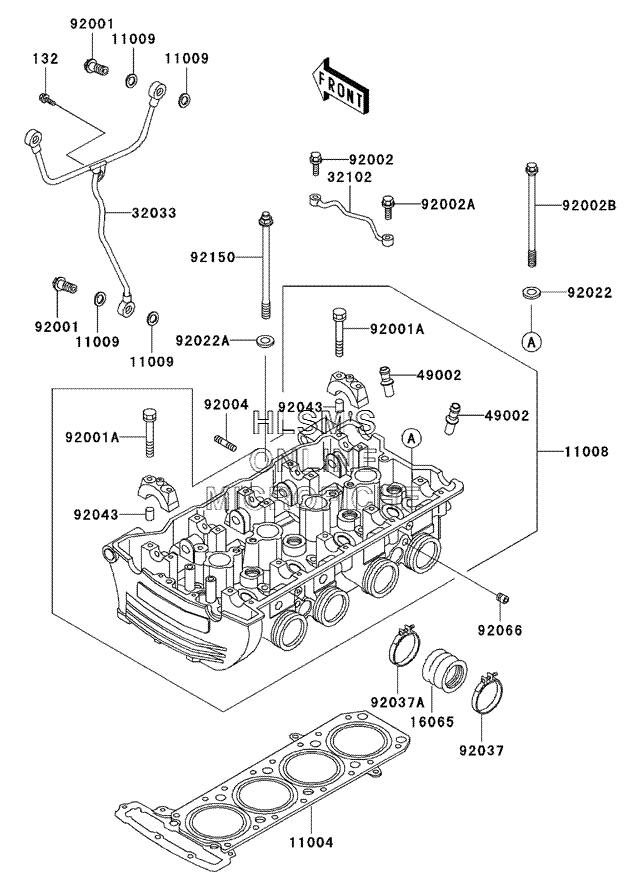

CYLINDER HEAD для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
132132J0610 BOLT, FLANGED, SMALL, 6X10BOLT, FLANGED, SMALL, 6X10
-
1100411004-1148 GASKET, HEADGASKET, HEAD
-
1100811008-1177 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1100911009-1376 GASKET, 12.5X18X1.5GASKET, 12.5X18X1.5
-
1606516065-1112 HOLDER, CARBURETORHOLDER, CARBURETOR
-
3203332033-1850 PIPE, OIL PAN, HEADPIPE, OIL PAN, HEAD
-
3210232102-1423 PIPE, CYLINDER HEADPIPE, CYLINDER HEAD
-
4900249002-1052 GUIDE, VALVEGUIDE, VALVE
-
9200192001-1871 BOLT, BANJO, 12X23BOLT, BANJO, 12X23
-
92001A92001-1872 BOLT, 6X46BOLT, 6X46
-
9200292002-1911 BOLT, 6X31.6BOLT, 6X31.6
-
92002A92002-1912 BOLT, 6X26.6BOLT, 6X26.6
-
92002B92002-1943 BOLT, 10X164BOLT, 10X164
-
9200492004-1110 STUD, 8X28STUD, 8X28
-
9202292022-1591 WASHER, 10.5X20X1.6WASHER, 10.5X20X1.6
-
92022A92022-1720 WASHER, 11.5X20.5X1.6WASHER, 11.5X20.5X1.6
-
9203792037-1304 CLAMP, ID=53 (BLACK)CLAMP, ID=53 (BLACK)
-
92037A92037-1523 CLAMPCLAMP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9206692066-1201 PLUG, PT1/8X7PLUG, PT1/8X7
-
9215092150-1075 BOLT, 11X164BOLT, 11X164
