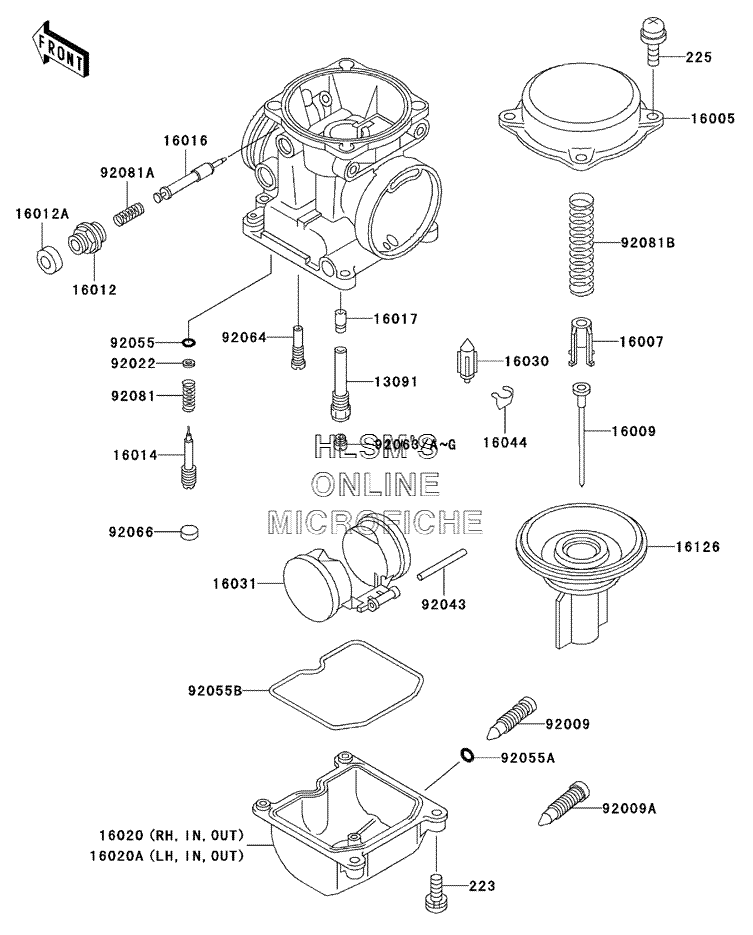

CARBURETOR PARTS для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
1309113091-1259 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1600516005-1056 TOP, CHAMBER, MIXINGTOP, CHAMBER, MIXING
-
1600716007-1120 SEAT, SPRING, THROTTLE VALVESEAT, SPRING, THROTTLE VALVE
-
1600916009-1326 NEEDLE, JET, N52MNEEDLE, JET, N52M
-
1601216012-1051 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
16012A16012-1052 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
1601416014-1054 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1061 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1316 JET, NEEDLEJET, NEEDLE
-
1602016020-1054 CHAMBER, FLOAT (RIGHT) SIDECHAMBER, FLOAT (RIGHT) SIDE
-
16020A16020-1055 CHAMBER, FLOAT (LEFT) SIDECHAMBER, FLOAT (LEFT) SIDE
-
1603016030-1007 VALVE, FLOATVALVE, FLOAT
-
1603116031-1056 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1160 VALVE, VACUUMVALVE, VACUUM
-
9200992009-1487 SCREW, DRAIN, M6X1.0SCREW, DRAIN, M6X1.0
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9202292022-1003 WASHER, PLAINWASHER, PLAIN
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1002 O-RING, PILOT ADJUSTO-RING, PILOT ADJUST
-
92055A92055-1053 O-RINGO-RING
-
92055B92055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1014 JET, MAIN, #135 (CALIF. ONLY) (RACING USE ONLY)JET, MAIN, #135 (CALIF. ONLY) (RACING USE ONLY)
-
92063A92063-1069 JET, MAIN, #125JET, MAIN, #125
-
92063B92063-1072 JET, MAIN, #120 (EXCEPT CALIF.) (RACING USE ONLY)JET, MAIN, #120 (EXCEPT CALIF.) (RACING USE ONLY)
-
92063C92063-1073 JET, MAIN, #122 (EXCEPT CALIF.) (RACING USE ONLY)JET, MAIN, #122 (EXCEPT CALIF.) (RACING USE ONLY)
-
92063D92063-1074 JET, MAIN, #128 (RACING USE ONLY)JET, MAIN, #128 (RACING USE ONLY)
-
92063E92063-1075 JET, MAIN, #130 (CALIF. ONLY)JET, MAIN, #130 (CALIF. ONLY)
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
92063F92063-1075 JET, MAIN, #130 (EXCEPT CALIF.) (RACING USE ONLY)JET, MAIN, #130 (EXCEPT CALIF.) (RACING USE ONLY)
-
92063G92063-1076 JET, MAIN, #132 (CALIF. ONLY)JET, MAIN, #132 (CALIF. ONLY)
-
9206492064-1101 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1002 SPRING, PILOT ADJUST SCREWSPRING, PILOT ADJUST SCREW
-
92081A92081-1761 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
92081B92081-1925 SPRING, VACUUM VALVESPRING, VACUUM VALVE
