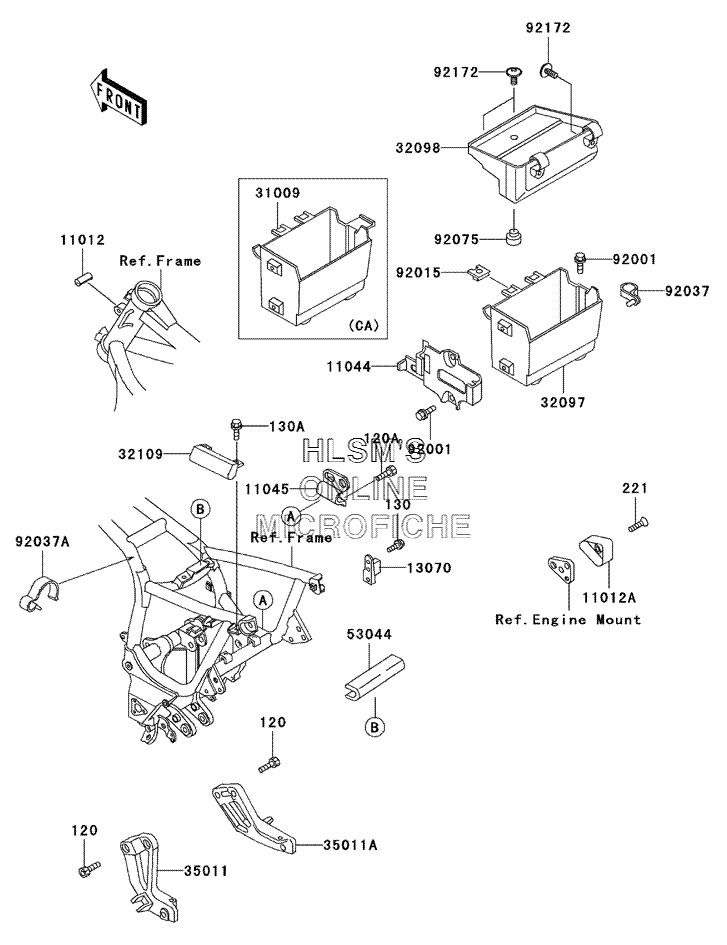

FRAME FITTINGS для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
120120P0816 BOLT, SOCKETBOLT, SOCKET
-
120A120S0614 BOLT, SOCKET, 6X14 (BLACK)BOLT, SOCKET, 6X14 (BLACK)
-
130130C0610 BOLT, FLANGED, 6X10 (BLACK) (EXCEPT CALIF.)BOLT, FLANGED, 6X10 (BLACK) (EXCEPT CALIF.)
-
130A130J0812 BOLT, FLANGEDBOLT, FLANGED
-
221221C0620 SCREW, CSK, CROSSCREW, CSK, CROS
-
1101211012-1438 CAPCAP
-
11012A11012-1531 CAP, ENGINE BRACKETCAP, ENGINE BRACKET
-
1104411044-1642 BRACKET, MAGNETIC SWITCHBRACKET, MAGNETIC SWITCH
-
1104511045-1118 BRACKET, REARSHOCK ADJUST KNOBBRACKET, REARSHOCK ADJUST KNOB
-
1307013070-1160 GUIDE, HOSE (EXCEPT CALIF.)GUIDE, HOSE (EXCEPT CALIF.)
-
3100931009-1052 CASE, COMP, BATTERY (CALIF. ONLY)CASE, COMP, BATTERY (CALIF. ONLY)
-
3209732097-1124 CASE, BATTERY (EXCEPT CALIF.)CASE, BATTERY (EXCEPT CALIF.)
-
3209832098-1068 CASE, TOOLCASE, TOOL
-
3210932109-1136 GRIP, FRAME (LEFT)GRIP, FRAME (LEFT)
-
3501135011-1293 STAY, MUFFLER AND REAR STEP (LEFT)STAY, MUFFLER AND REAR STEP (LEFT)
-
35011A35011-1294 STAY, MUFFLER AND REAR STEP (RIGHT)STAY, MUFFLER AND REAR STEP (RIGHT)
-
5304453044-1174 TRIMTRIM
-
9200192001-1771 BOLT, 6X12BOLT, 6X12
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
92037A92037-1552 CLAMP, HOSE (EXCEPT CALIF.)CLAMP, HOSE (EXCEPT CALIF.)
-
9207592075-1045 DAMPERDAMPER
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
