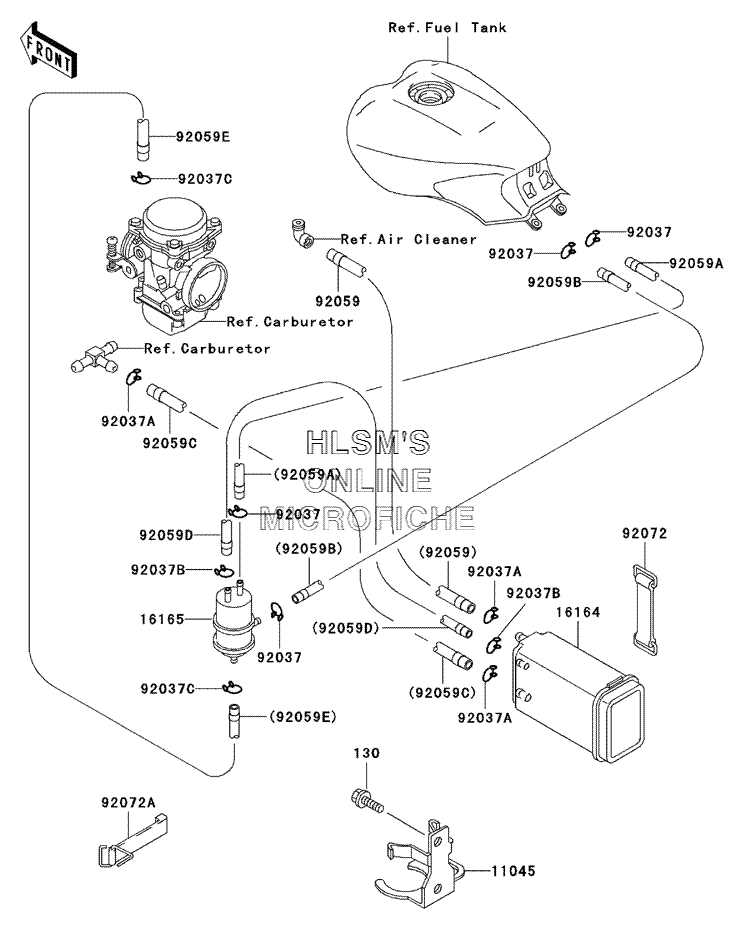

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
1104511045-1163 BRACKET, SEPARATORBRACKET, SEPARATOR
-
1616416164-1064 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-147 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1712 CLAMPCLAMP
-
9205992059-1406 TUBE, 7X12X390 (GREEN)TUBE, 7X12X390 (GREEN)
-
92059A92059-1407 TUBE, 5X8X470 (BLUE)TUBE, 5X8X470 (BLUE)
-
92059B92059-1419 TUBE, 5X8X550 (RED)TUBE, 5X8X550 (RED)
-
92059C92059-1440 TUBE, 7X12X440 (YELLOW)TUBE, 7X12X440 (YELLOW)
-
92059D92059-1498 TUBE, 5X10X230 (BLUE)TUBE, 5X10X230 (BLUE)
-
92059E92059-1690 TUBE, 4X9X705 (WHITE)TUBE, 4X9X705 (WHITE)
-
9207292072-071 BAND, L=100BAND, L=100
-
92072A92072-1214 BANDBAND
-
130130C0610 BOLT, FLANGED, 6X10 (BLACK)BOLT, FLANGED, 6X10 (BLACK)
