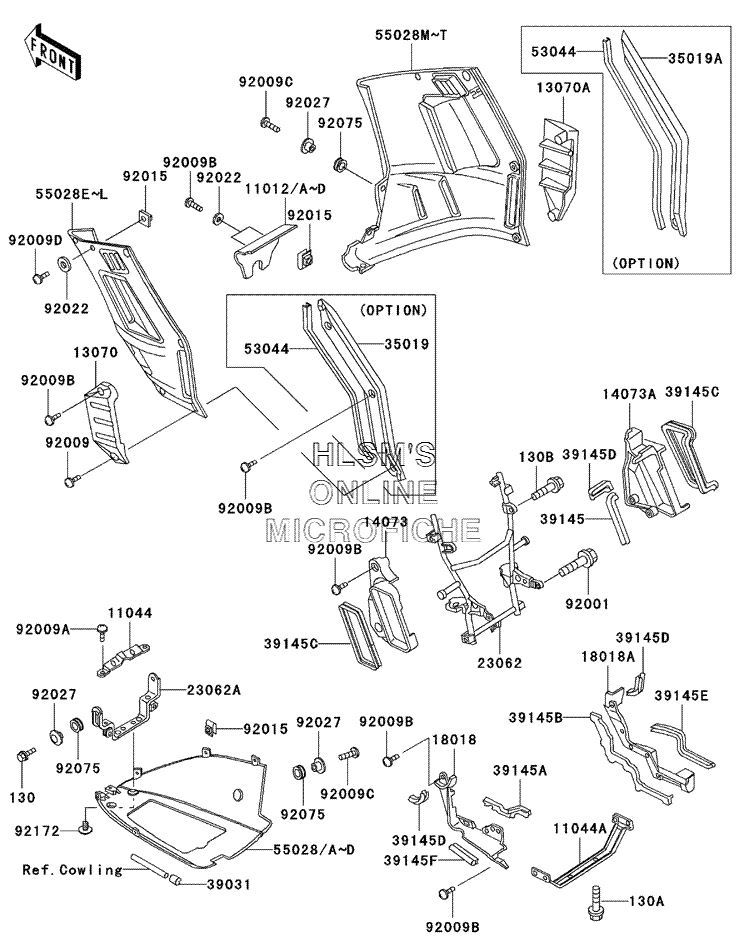

COWLING - LOWERS для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
11012B11012-1534-VK CAP, RESERVOIR INSPECTION, GRAYCAP, RESERVOIR INSPECTION, GRAY
-
1104411044-1919 BRACKET, RESERVOIR TANK, UPPERBRACKET, RESERVOIR TANK, UPPER
-
11044A11044-1920 BRACKET, LOWER COWLING, REARBRACKET, LOWER COWLING, REAR
-
1307013070-1171 GUIDE, SIDE COWLING (LEFT)GUIDE, SIDE COWLING (LEFT)
-
13070A13070-1172 GUIDE, SIDE COWLING (RIGHT)GUIDE, SIDE COWLING (RIGHT)
-
1407314073-1276 DUCT, RADIATOR, REAR (LEFT)DUCT, RADIATOR, REAR (LEFT)
-
14073A14073-1284 DUCT, RADIATOR, REAR (RIGHT)DUCT, RADIATOR, REAR (RIGHT)
-
1801818018-1068 PLATE, HEAT GUARD, SIDE (LEFT)PLATE, HEAT GUARD, SIDE (LEFT)
-
18018A18018-1069 PLATE, HEAT GUARD, SIDE (RIGHT)PLATE, HEAT GUARD, SIDE (RIGHT)
-
2306223062-1064 BRACKET, COMP, RADIATORBRACKET, COMP, RADIATOR
-
23062A23062-1065 BRACKET, COMP, LOWER COWLING, FRONTBRACKET, COMP, LOWER COWLING, FRONT
-
3501935019-1193 FLAP, SIDE COWLING (LEFT) (OPT)FLAP, SIDE COWLING (LEFT) (OPT)
-
35019A35019-1194 FLAP, SIDE COWLING (RIGHT) (OPT)FLAP, SIDE COWLING (RIGHT) (OPT)
-
3903139031-1055 CAP, END, TRIMCAP, END, TRIM
-
3914539145-1056 TRIM, SEAL, SIDE COWLINGTRIM, SEAL, SIDE COWLING
-
39145A39145-1076 TRIM, SEAL, HEAT GUARD PLATE (LEFT)TRIM, SEAL, HEAT GUARD PLATE (LEFT)
-
39145B39145-1077 TRIM, SEAL, HEAT GUARD PLATE (RIGHT)TRIM, SEAL, HEAT GUARD PLATE (RIGHT)
-
39145C39145-1078 TRIM, SEAL, DUCTTRIM, SEAL, DUCT
-
39145D39145-1079 TRIM, SEAL, HEAT GUARDTRIM, SEAL, HEAT GUARD
-
39145E39145-1080 TRIM, SEAL, HEAT GUARD (RIGHT)TRIM, SEAL, HEAT GUARD (RIGHT)
-
39145F39145-1084 TRIM, SEAL, HEAT GUARD (LEFT)TRIM, SEAL, HEAT GUARD (LEFT)
-
5304453044-1184 TRIM, INNER COWLING (OPT)TRIM, INNER COWLING (OPT)
-
55028B55028-1124-VK COWLING, LOWER (P.C.GRAY)COWLING, LOWER (P.C.GRAY)
-
55028L55028-1154-375 COWLING, SIDE (LEFT) (BLACK/GRAY)COWLING, SIDE (LEFT) (BLACK/GRAY)
-
55028T55028-1155-375 COWLING, SIDE (RIGHT) (BLACK/GRAY)COWLING, SIDE (RIGHT) (BLACK/GRAY)
-
9200192001-1844 BOLT, FLANGED, 10X41 (BLACK)BOLT, FLANGED, 10X41 (BLACK)
-
9200992009-1400 SCREW, 6X28 (BLACK)SCREW, 6X28 (BLACK)
-
92009A92009-1651 SCREW, 5X10SCREW, 5X10
-
92009B92009-1662 SCREW, 6X14SCREW, 6X14
-
92009C92009-1663 SCREW, 6X18SCREW, 6X18
-
92009D92009-1664 SCREW, 6X22SCREW, 6X22
-
9201592015-1602 NUT, 6MMNUT, 6MM
-
9202292022-1818 WASHER, 6X16X1WASHER, 6X16X1
-
9202792027-1935 COLLAR, L=9.1 (BLACK)COLLAR, L=9.1 (BLACK)
-
9207592075-1634 DAMPERDAMPER
-
130130C0618 BOLT, FLANGEDBOLT, FLANGED
-
130A130G0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
130B130J0812 BOLT, FLANGEDBOLT, FLANGED
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
