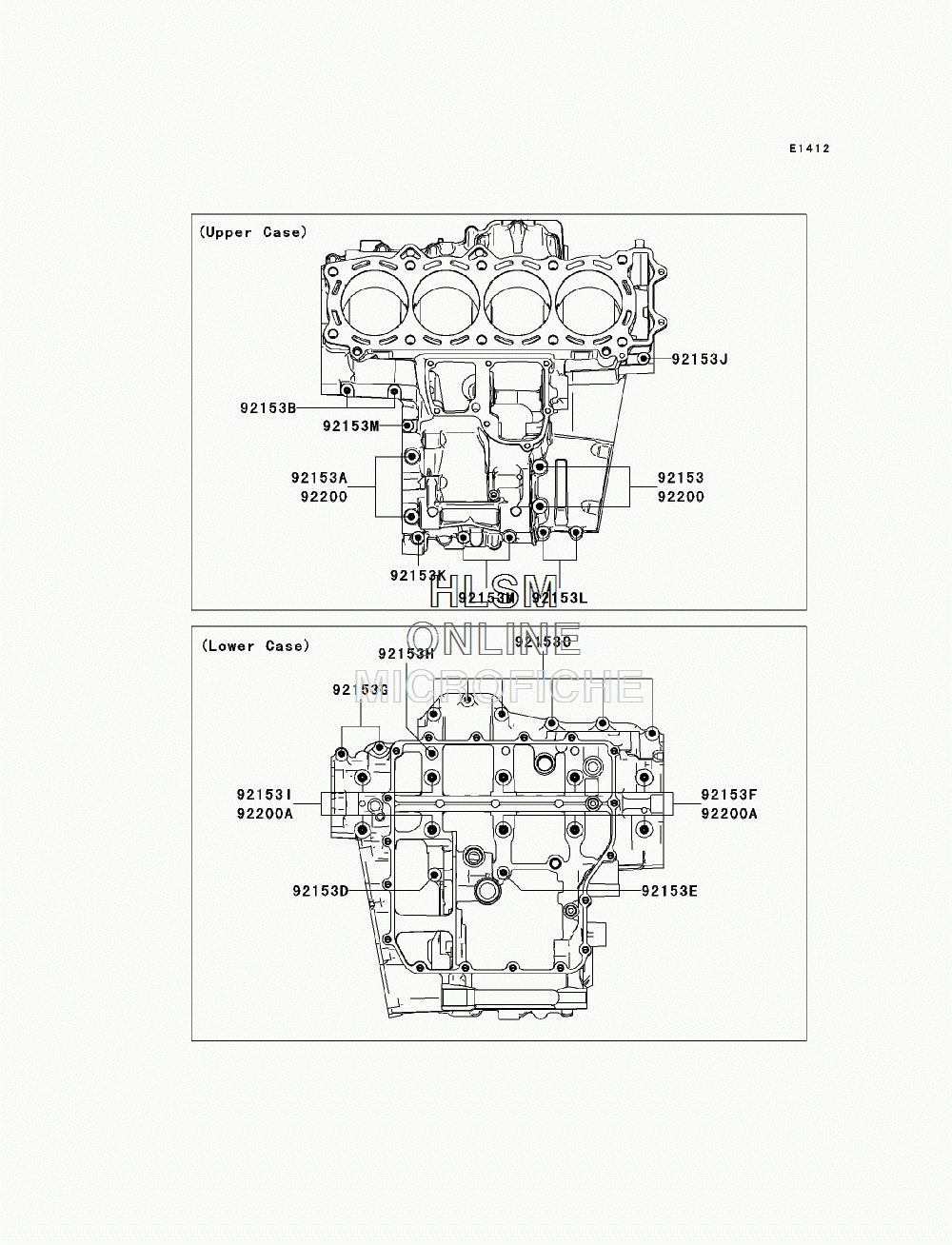

CRANKCASE BOLT PATTERN для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
9215392153-1035 BOLT,FLANGED,8X80BOLT,FLANGED,8X80
-
92153A92153-1036 BOLT,FLANGED,8X70BOLT,FLANGED,8X70
-
92153B92153-1040 BOLT,FLANGED,7X65BOLT,FLANGED,7X65
-
92153C92153-1041 BOLT,FLANGED,7X45BOLT,FLANGED,7X45
-
92153D92153-1042 BOLT,FLANGED,7X50BOLT,FLANGED,7X50
-
92153E92153-1043 BOLT,FLANGED,7X85BOLT,FLANGED,7X85
-
92153F92153-1044 BOLT,FLANGED,10X90BOLT,FLANGED,10X90
-
92153G92153-1045 BOLT,FLANGED,7X60BOLT,FLANGED,7X60
-
92153H92153-1046 BOLT,FLANGED,7X110BOLT,FLANGED,7X110
-
92153I92153-1047 BOLT,FLANGED,10X120BOLT,FLANGED,10X120
-
92153J92153-1567 BOLT-FLANGED,6X65BOLT-FLANGED,6X65
-
92153K92153-1568 BOLT-FLANGED,6X50BOLT-FLANGED,6X50
-
92153L92153-1569 BOLT-FLANGED,6X25BOLT-FLANGED,6X25
-
92153M92153-1570 BOLT-FLANGED,6X40BOLT-FLANGED,6X40
-
9220092200-0047 WASHER,8.2X16X1.6WASHER,8.2X16X1.6
-
92200A92200-0257 WASHER,10.5X19X2.3WASHER,10.5X19X2.3
