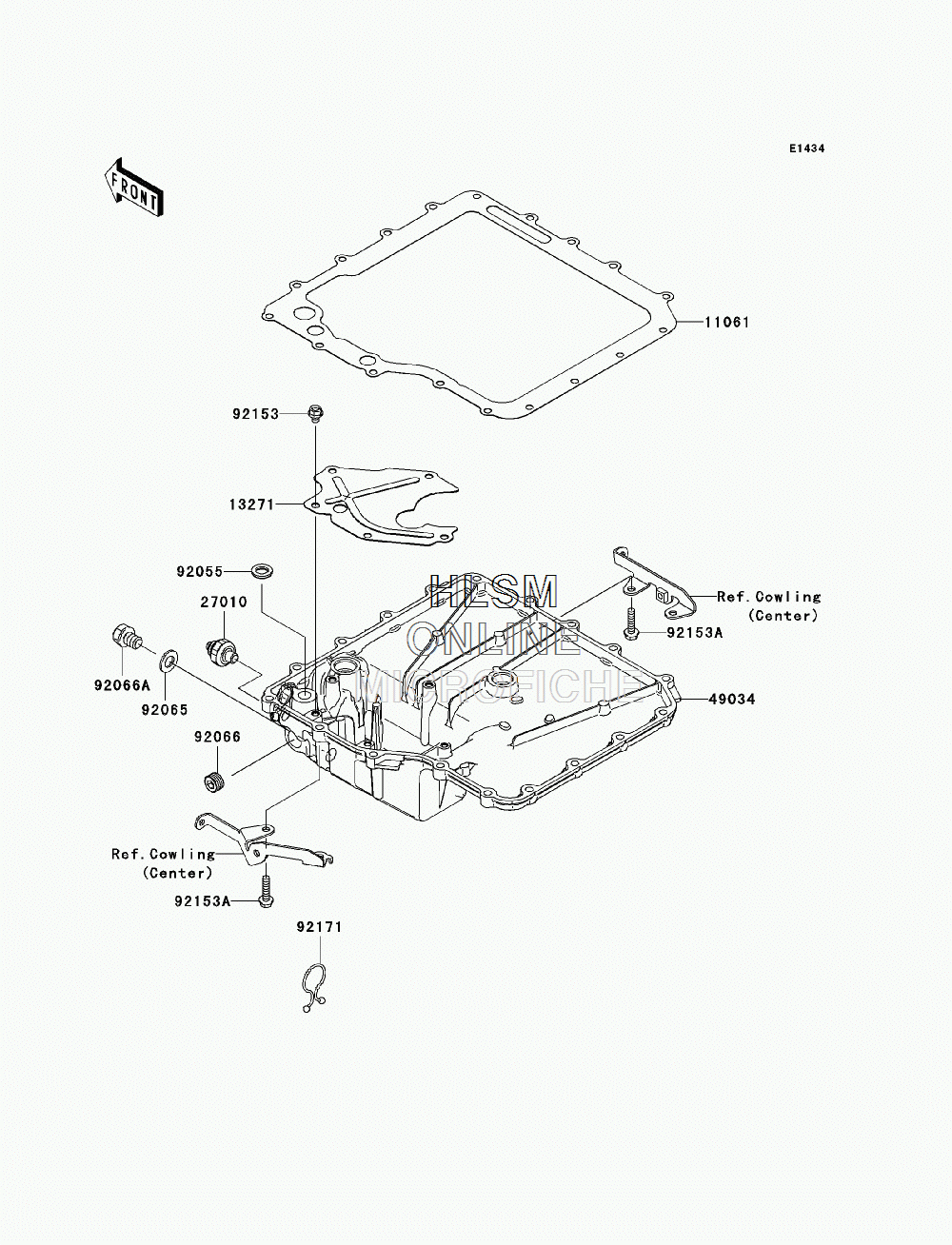

OIL PAN для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
1106111061-0199 GASKET,OIL PANGASKET,OIL PAN
-
1327113271-0868 PLATEPLATE
-
2701027010-1313 SWITCH,OIL PRESSURESWITCH,OIL PRESSURE
-
4903449034-0035 PAN-OILPAN-OIL
-
9205592055-077 RING-O,19.5MMRING-O,19.5MM
-
9206592065-097 GASKET,12X22X2GASKET,12X22X2
-
9206692066-0064 PLUGPLUG
-
92066A92066-0079 PLUG,12X15PLUG,12X15
-
9215392153-1530 BOLT,FLANGED,6X8BOLT,FLANGED,6X8
-
92153A92153-1569 BOLT-FLANGED,6X25BOLT-FLANGED,6X25
-
9217192171-1185 CLAMPCLAMP
