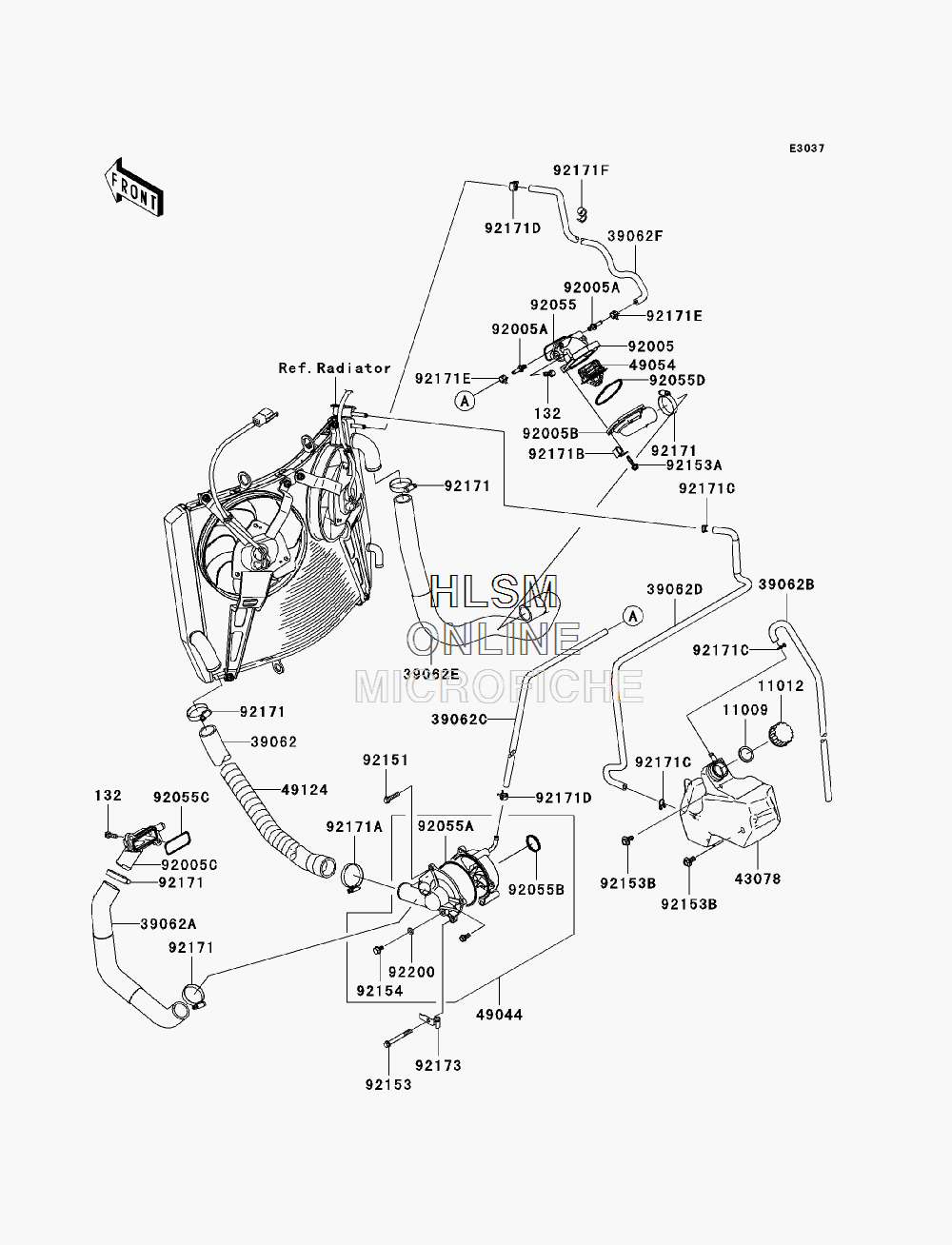

WATER PIPE для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
132132BC0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
3906239062-0113 HOSE-COOLING,RAD-W/PHOSE-COOLING,RAD-W/P
-
39062A39062-0114 HOSE-COOLING,W/P-CYL.HEADHOSE-COOLING,W/P-CYL.HEAD
-
39062B39062-0151 HOSE-COOLING,L=597HOSE-COOLING,L=597
-
39062C39062-0170 HOSE-COOLING,4X10X490HOSE-COOLING,4X10X490
-
39062D39062-0218 HOSE-COOLING,L=797HOSE-COOLING,L=797
-
39062E39062-0306 HOSE-COOLING,CYL.HEAD-RAD.HOSE-COOLING,CYL.HEAD-RAD.
-
39062F39062-0325 HOSE-COOLING,AIR VENTHOSE-COOLING,AIR VENT
-
4307843078-0063 RESERVOIRRESERVOIR
-
4904449044-0006 PUMP-WATERPUMP-WATER
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4912449124-0003 SPRING-TUBE GUARDSPRING-TUBE GUARD
-
9200592005-0047 FITTING,THERMO CASEFITTING,THERMO CASE
-
92005A92005-0056 FITTINGFITTING
-
92005B92005-0076 FITTING,THERMO CAPFITTING,THERMO CAP
-
92005C92005-0104 FITTING,CYLINDERFITTING,CYLINDER
-
9205592055-0021 RING-O,YP 27.6 57.6 1.9RING-O,YP 27.6 57.6 1.9
-
92055A92055-0157 RING-ORING-O
-
92055B92055-0158 RING-ORING-O
-
92055C92055-1402 RING-ORING-O
-
92055D92055-1699 RING-O,THERMOSTAT CAPRING-O,THERMOSTAT CAP
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215392153-1586 BOLT,FLANGED-SMALL,6X55BOLT,FLANGED-SMALL,6X55
-
92153A92153-1588 BOLT,FLANGED,5X18BOLT,FLANGED,5X18
-
92153B92153-1939 BOLT,UPSET-WP,6X16BOLT,UPSET-WP,6X16
-
9215492154-0184 BOLT,DRAINBOLT,DRAIN
-
9217192171-0179 CLAMPCLAMP
-
92171A92171-0180 CLAMPCLAMP
-
92171B92171-0534 CLAMPCLAMP
-
92171C92171-0718 CLAMPCLAMP
-
92171D92171-0719 CLAMPCLAMP
-
92171E92171-0720 CLAMPCLAMP
-
92171F92171-1184 CLAMPCLAMP
-
9217392173-0114 CLAMPCLAMP
-
9220092200-0498 WASHER,DRAINWASHER,DRAIN
