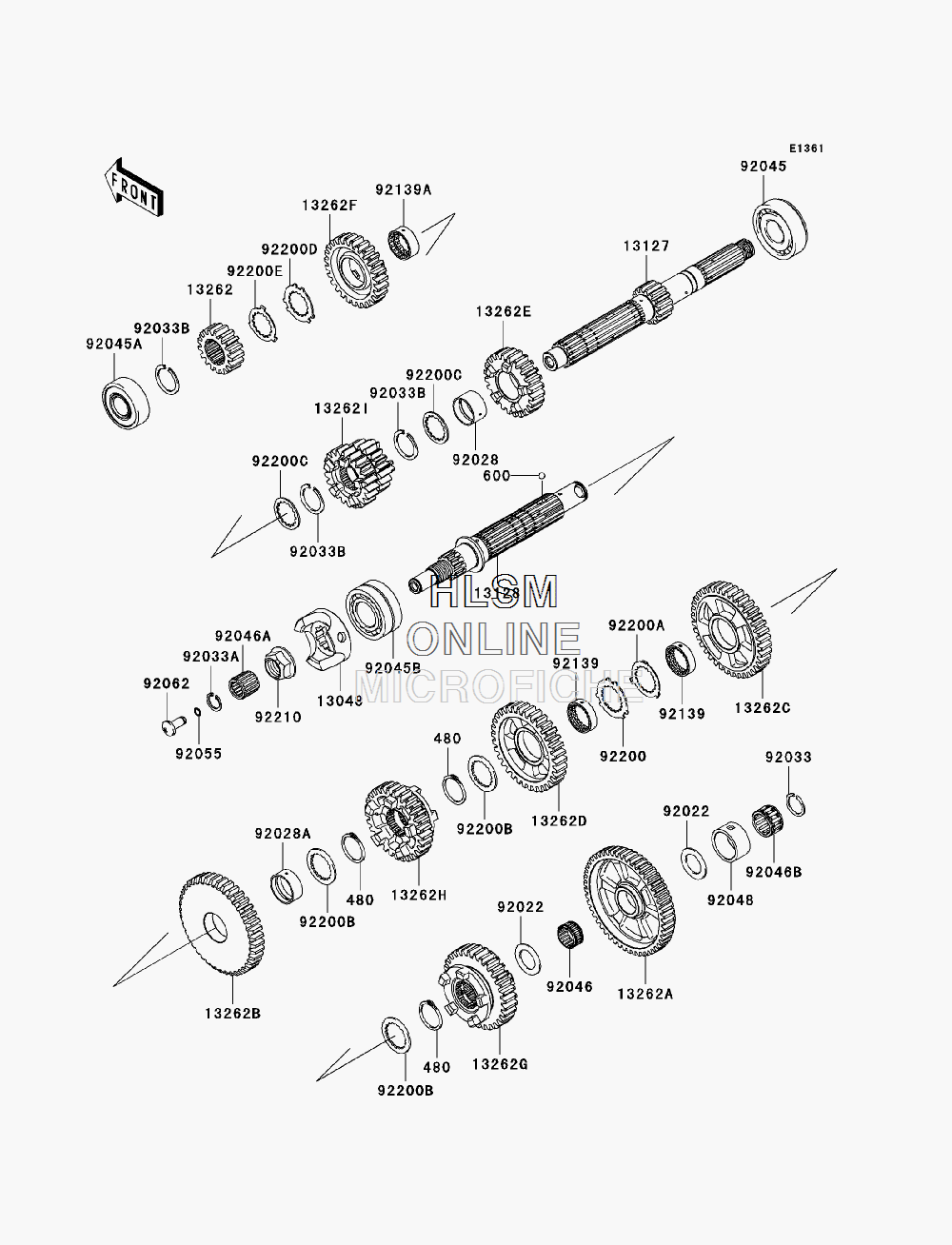

TRANSMISSION для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL,5/32"BALL-STEEL,5/32"
-
1304813048-0014 CAM-DAMPERCAM-DAMPER
-
1312713127-0072 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0034 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1326213262-0399 GEAR,INPUT 2ND,17TGEAR,INPUT 2ND,17T
-
13262A13262-0403 GEAR,OUTPUT LOW,50TGEAR,OUTPUT LOW,50T
-
13262B13262-0404 GEAR,OUTPUT 2ND,41TGEAR,OUTPUT 2ND,41T
-
13262C13262-0725 GEAR,OUTPUT 3RD,38TGEAR,OUTPUT 3RD,38T
-
13262D13262-0726 GEAR,OUTPUT 4TH,34TGEAR,OUTPUT 4TH,34T
-
13262E13262-0747 GEAR,INPUT 5TH,24TGEAR,INPUT 5TH,24T
-
13262F13262-0748 GEAR,INPUT 6TH,27TGEAR,INPUT 6TH,27T
-
13262G13262-0751 GEAR,OUTPUT 5TH,31TGEAR,OUTPUT 5TH,31T
-
13262H13262-0752 GEAR,OUTPUT 6TH,29TGEAR,OUTPUT 6TH,29T
-
13262I13262-0793 GEAR,INPUT 3RD & 4TH,20T & 22TGEAR,INPUT 3RD & 4TH,20T & 22T
-
9202292022-212 WASHER,22.3X35X1.6WASHER,22.3X35X1.6
-
9202892028-1935 BUSHINGBUSHING
-
92028A92028-1937 BUSHINGBUSHING
-
9203392033-025 RING-SNAP,20X25.5X1.2RING-SNAP,20X25.5X1.2
-
92033A92033-032 RING-SNAPRING-SNAP
-
92033B92033-1249 RING-SNAP,T=1.5RING-SNAP,T=1.5
-
9204592045-0047 BEARING-BALL,830045-5SH2BEARING-BALL,830045-5SH2
-
92045A92045-0048 BEARING-BALL,DG2152RDDSH2BEARING-BALL,DG2152RDDSH2
-
92045B92045-0116 BEARING-BALLBEARING-BALL
-
9204692046-0018 BEARING-NEEDLE,K22X26X13BEARING-NEEDLE,K22X26X13
-
92046A92046-1260 BEARING-NEEDLE,FWF-162222BEARING-NEEDLE,FWF-162222
-
92046B92046-1268 BEARING-NEEDLE,K22X30X16.8X2BEARING-NEEDLE,K22X30X16.8X2
-
9204892048-0004 RACERACE
-
9205592055-0171 RING-O,6.5X1.0RING-O,6.5X1.0
-
9206292062-0018 NOZZLENOZZLE
-
9213992139-0255 BUSHINGBUSHING
-
92139A92139-0256 BUSHING,INPUT 6TH,GEARBUSHING,INPUT 6TH,GEAR
-
9220092200-0255 WASHER,27.5X43X1.5WASHER,27.5X43X1.5
-
92200A92200-0256 WASHER,27.5X39.7X1.0WASHER,27.5X39.7X1.0
-
92200B92200-1277 WASHER,TOOTHED,28X40X2WASHER,TOOTHED,28X40X2
-
92200C92200-1340 WASHER,25.5X35.5X1.5WASHER,25.5X35.5X1.5
-
92200D92200-1522 WASHER,25.8X40.5X1.5WASHER,25.8X40.5X1.5
-
92200E92200-1523 WASHER,25.2X37.0X1.0WASHER,25.2X37.0X1.0
-
9221092210-0365 NUT,20MMNUT,20MM
