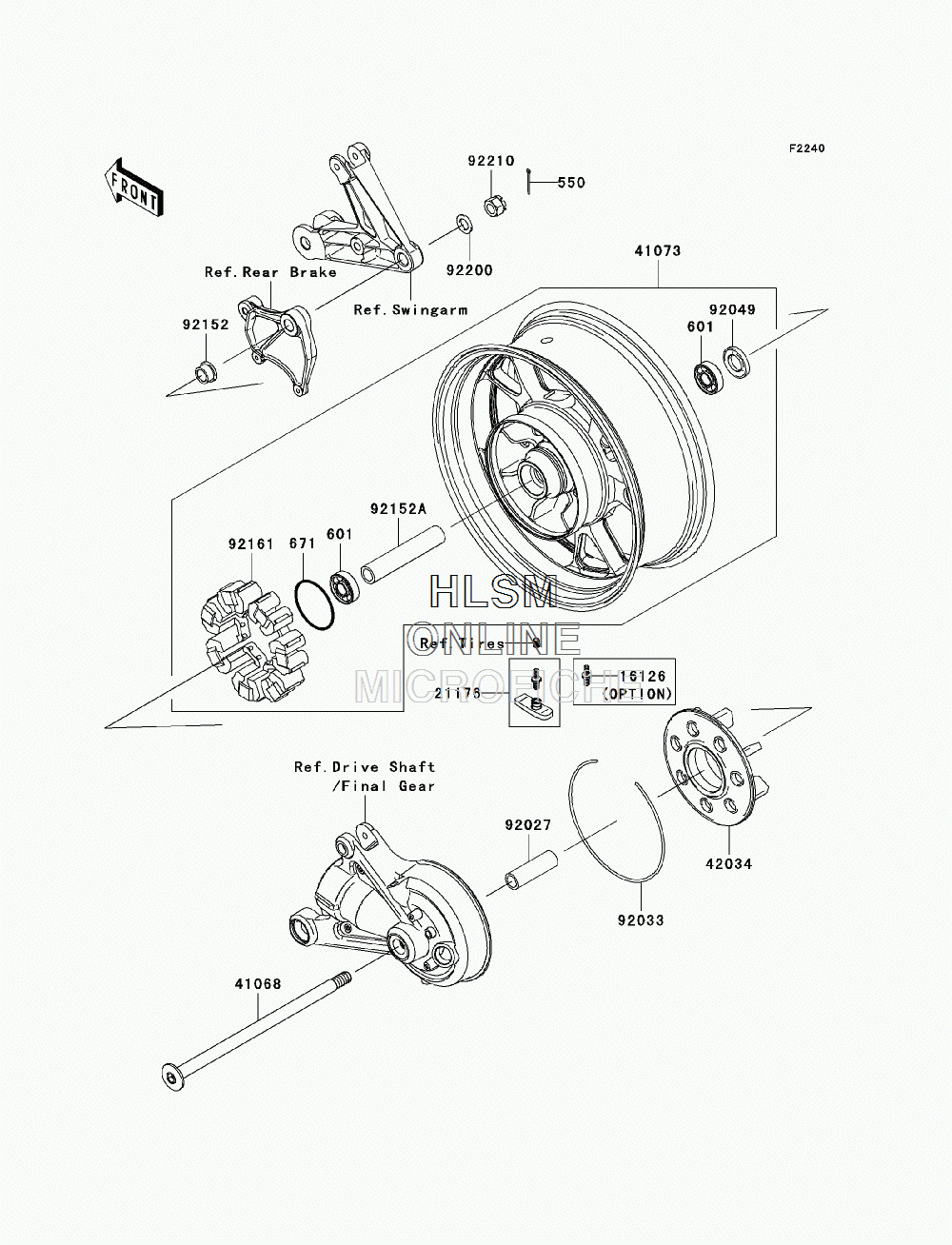

WHEEL - REAR W/ CHAIN для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
550550AA4035 PIN-COTTER,4.0X35PIN-COTTER,4.0X35
-
601601B6304UU BEARING-BALL,#6304UUC3BEARING-BALL,#6304UUC3
-
671671B2580 O RING,80MMO RING,80MM
-
1612616126-0040 VALVE,TIRE PRESSURE SENSOR (OPTION)VALVE,TIRE PRESSURE SENSOR (OPTION)
-
2117621176-0125 SENSOR,TPMS 315MHZSENSOR,TPMS 315MHZ
-
4106841068-0060 AXLE, REARAXLE, REAR
-
4107341073-0160-795 WHEEL-ASSY, REAR,M.F.P.SILVER (FOR 27Z)WHEEL-ASSY, REAR,M.F.P.SILVER (FOR 27Z)
-
4203442034-0002 COUPLING, REAR HUBCOUPLING, REAR HUB
-
9202792027-1553 COLLAR,20.2X28X89COLLAR,20.2X28X89
-
9203392033-0012 RING-SNAP,220MMRING-SNAP,220MM
-
9204992049-1061 SEAL-OIL,28X52X5SEAL-OIL,28X52X5
-
9215292152-0105 COLLAR, REAR AXLE, RIGHT HAND,L=17COLLAR, REAR AXLE, RIGHT HAND,L=17
-
92152A92152-0494 COLLAR, REAR HUB,L=151COLLAR, REAR HUB,L=151
-
9216192161-0409 DAMPER,SHOCK, REAR HUBDAMPER,SHOCK, REAR HUB
-
9220092200-1489 WASHER,19X32X2.6WASHER,19X32X2.6
-
9221092210-1134 NUT,CASTLE,18MMNUT,CASTLE,18MM
