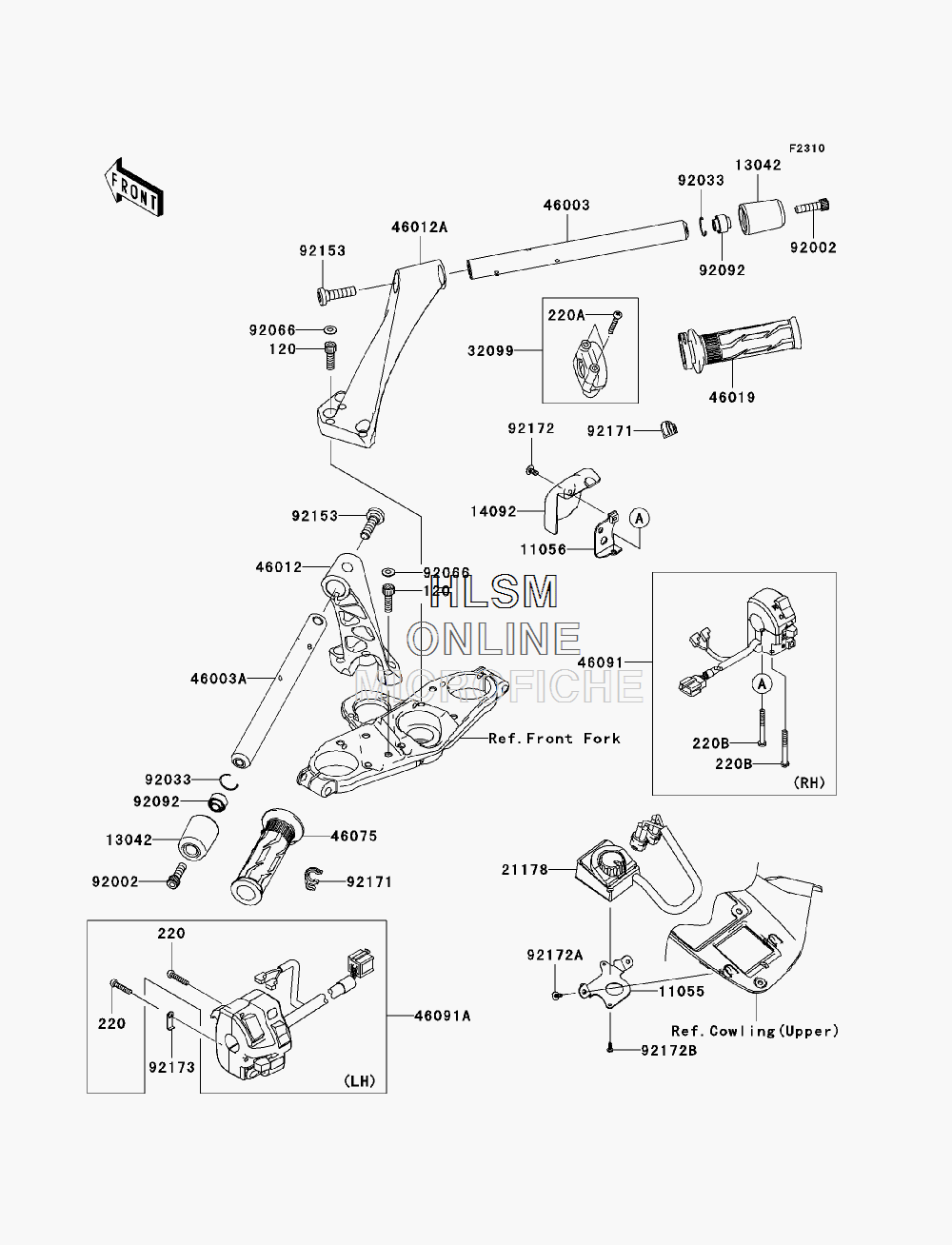

HANDLEBAR для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
120120CA0825 BOLT-SOCKET,8X25BOLT-SOCKET,8X25
-
220220AB0525 SCREW-PAN-CROS,5X25SCREW-PAN-CROS,5X25
-
220A220AB0535 SCREW-PAN-CROSS,5X35SCREW-PAN-CROSS,5X35
-
220B220AB0545 SCREW-PAN-CROSS,5X45SCREW-PAN-CROSS,5X45
-
1105511055-1753 BRACKET,CONTROL SWITCHBRACKET,CONTROL SWITCH
-
1105611056-0154 BRACKETBRACKET
-
1304213042-1006 WEIGHT,HANDLEWEIGHT,HANDLE
-
1409214092-0126 COVERCOVER
-
2117821178-0002 CONTROL-SWITCH,GRIP HEATERSCONTROL-SWITCH,GRIP HEATERS
-
3209932099-0027 CASE,THROTTLECASE,THROTTLE
-
4600346003-0177 HANDLE, RIGHT HANDHANDLE, RIGHT HAND
-
46003A46003-0191 HANDLE, LEFT HANDHANDLE, LEFT HAND
-
4601246012-0086-458 HOLDER-HANDLE, LEFT HAND,P.SILVER (FOR 27Z)HOLDER-HANDLE, LEFT HAND,P.SILVER (FOR 27Z)
-
46012A46012-0087-458 HOLDER-HANDLE, RIGHT HAND,P.SILVER (FOR 27Z)HOLDER-HANDLE, RIGHT HAND,P.SILVER (FOR 27Z)
-
4601946019-0029 GRIP-ASSY,THROTTLE,HEATERGRIP-ASSY,THROTTLE,HEATER
-
4607546075-0093 GRIP, LEFT HAND,HEATERGRIP, LEFT HAND,HEATER
-
4609146091-0189 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
46091A46091-0203 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
9200292002-1844 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
9203392033-1102 RING-SNAP,OD=22.2RING-SNAP,OD=22.2
-
9206692066-1216 PLUGPLUG
-
9209292092-1018 BUSHING-RUBBER,HANDLEBUSHING-RUBBER,HANDLE
-
9215392153-1440 BOLT,SOCKET,10X37BOLT,SOCKET,10X37
-
9217192171-1819 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9217292172-0007 SCREW,5X10SCREW,5X10
-
92172A92172-0172 SCREW,TAPPING,4X10SCREW,TAPPING,4X10
-
92172B92172-0351 SCREW,TAPPING,3X10SCREW,TAPPING,3X10
-
9217392173-0177 CLAMPCLAMP
