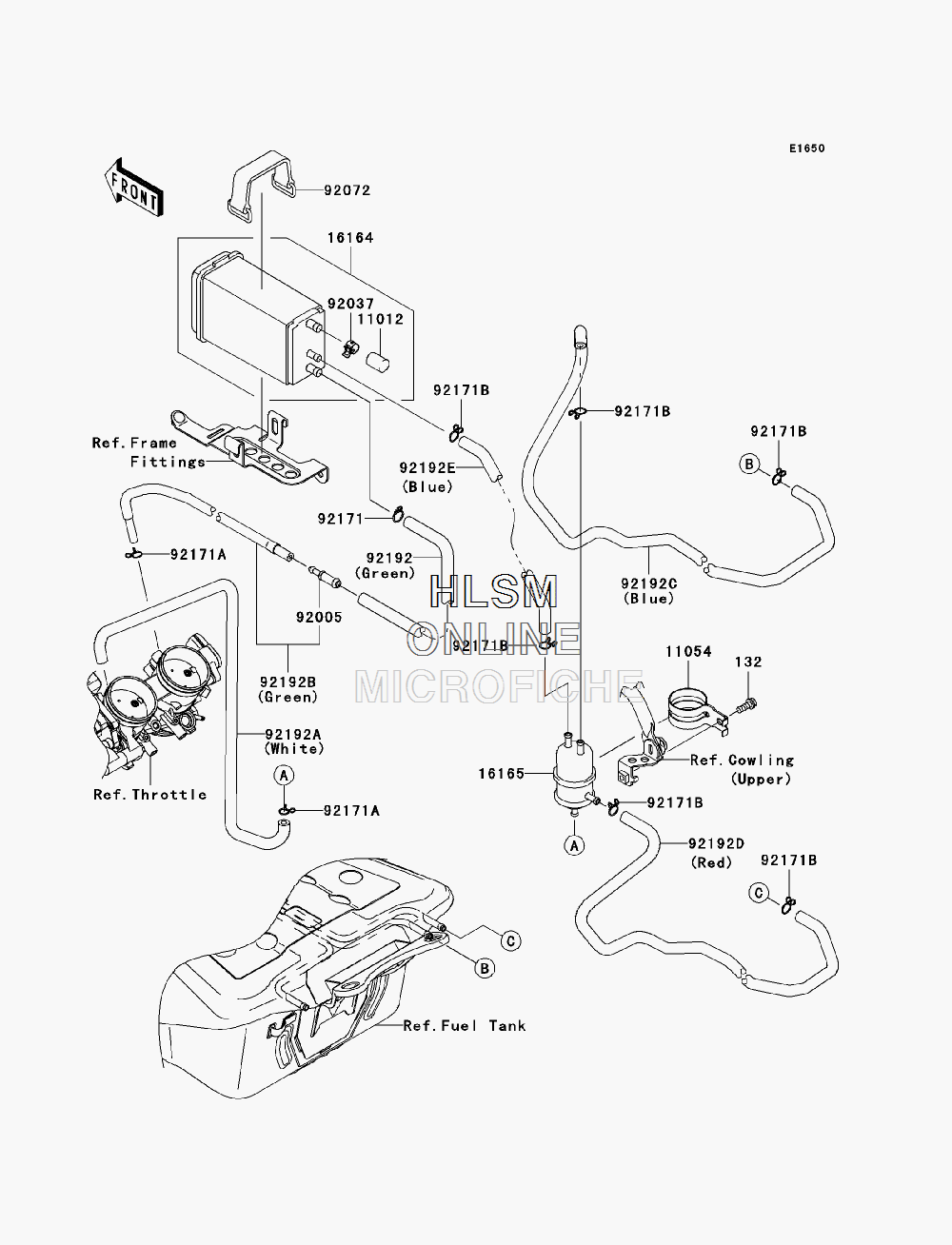

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki CONCOURS 14 (ZG1400DAF) - 2010 года выпуска
-
№АртикулНазвание
-
132132BA0616 BOLT-FLANGED-SMALL,6X16 (CALIF. ONLY)BOLT-FLANGED-SMALL,6X16 (CALIF. ONLY)
-
1101211012-1388 CAP,CANISTER (CALIF. ONLY)CAP,CANISTER (CALIF. ONLY)
-
1105411054-1193 BRACKET,SEPARATOR (CALIF. ONLY)BRACKET,SEPARATOR (CALIF. ONLY)
-
1616416164-1054 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
9200592005-0032 FITTING (CALIF. ONLY)FITTING (CALIF. ONLY)
-
9203792037-1512 CLAMP,CANISTER (CALIF. ONLY)CLAMP,CANISTER (CALIF. ONLY)
-
9207292072-0050 BAND (CALIF. ONLY)BAND (CALIF. ONLY)
-
9217192171-0574 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-0576 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171B92171-0718 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9219292192-0417 TUBE,CANISTER-FITTING,GREEN (CALIF. ONLY)TUBE,CANISTER-FITTING,GREEN (CALIF. ONLY)
-
92192A92192-0418 TUBE,SEPARATOR-THROBO #3,WHITE (CALIF. ONLY)TUBE,SEPARATOR-THROBO #3,WHITE (CALIF. ONLY)
-
92192B92192-0420 TUBE,THROBO #4-GRN TUBE (CALIF. ONLY)TUBE,THROBO #4-GRN TUBE (CALIF. ONLY)
-
92192C92192-0865 TUBE,SEPARATOR-TANK,BLUE (CALIF. ONLY)TUBE,SEPARATOR-TANK,BLUE (CALIF. ONLY)
-
92192D92192-0866 TUBE,TANK-SEPARATOR SIDE, RED (CALIF. ONLY)TUBE,TANK-SEPARATOR SIDE, RED (CALIF. ONLY)
-
92192E92192-0878 TUBE,CANISTER-SEPARATOR,BLUE (CALIF. ONLY)TUBE,CANISTER-SEPARATOR,BLUE (CALIF. ONLY)
