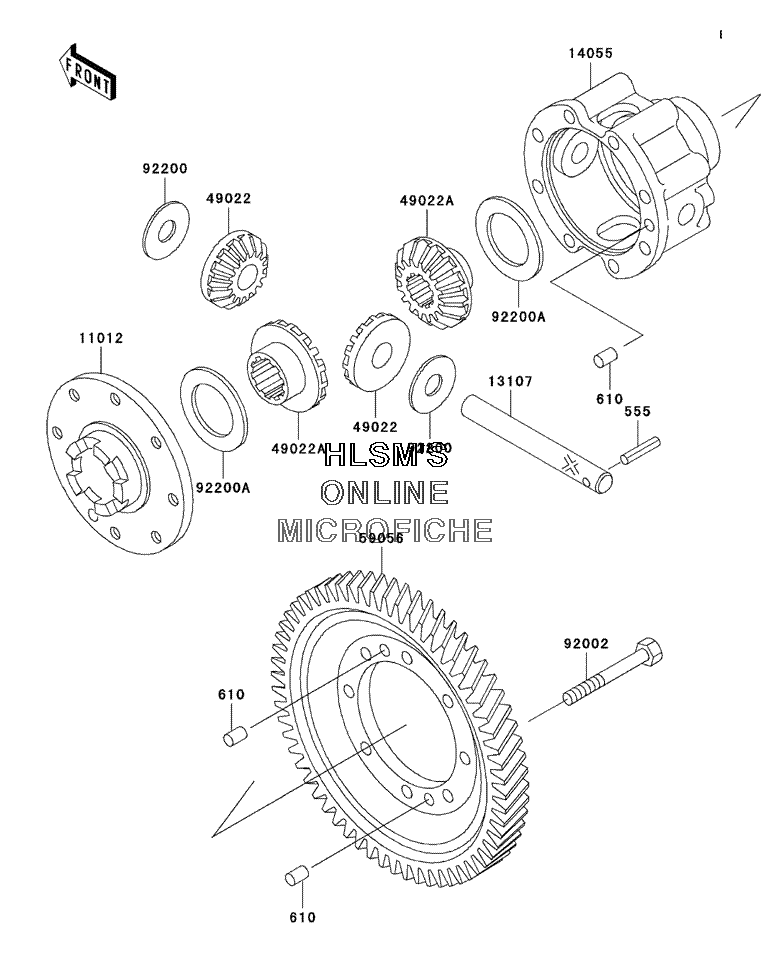

DIFFERENTIAL для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
555555A0528 PIN-SPRINGPIN-SPRING
-
610610A0812 ROLLER, 8X12ROLLER, 8X12
-
1101211012-1613 CAP, GEAR CASECAP, GEAR CASE
-
1310713107-1219 SHAFTSHAFT
-
1405514055-1113 CASE-GEAR, DIFFERENTIALCASE-GEAR, DIFFERENTIAL
-
4902249022-1105 GEAR-BEVEL (10 TEETH)GEAR-BEVEL (10 TEETH)
-
49022A49022-1117 GEAR-BEVEL (16 TEETH)GEAR-BEVEL (16 TEETH)
-
5905659056-1056 GEAR-HELICAL, DIFFERENTIAL (81 TEETH)GEAR-HELICAL, DIFFERENTIAL (81 TEETH)
-
9200292002-1553 BOLT, 8X68BOLT, 8X68
-
9220092200-1044 WASHER, 14.5X38X1.0WASHER, 14.5X38X1.0
-
92200A92200-1045 WASHER, 35.5X54X1.0WASHER, 35.5X54X1.0
Все узлы модели:
- 4WD/2WD CONTROL
- AIR CLEANER
- AIR CLEANER W/ BELT CONVERTER
- BEVEL GEAR CASE
- BRAKE - FRONT W/ HUB
- BRAKE - MASTER CYLINDER
- BRAKE - REAR W/ HUBS
- BRAKE PEDAL W/ THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CONVERTER COVER W/DRIVE BELT
- CRANKCASE
- CRANKSHAFT W/ PISTON(S)
- CYLINDER HEAD
- DECALS
- • DIFFERENTIAL
- DRIVE CONVERTER
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- DRIVEN CONVERTER
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRAME FITTINGS (COVER)
- FRAME FITTINGS (LEVER(S))
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR BOX
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S) / CAB FRAME
- HEADLIGHT(S) W/ IGNITION SWITCH
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- REFLECTORS (CANADA ONLY)
- SEAT
- STARTER MOTOR
- STEERING WHEEL
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S) W/ CAMSHAFT(S)
- WATER PUMP
- WHEELS - TIRES
