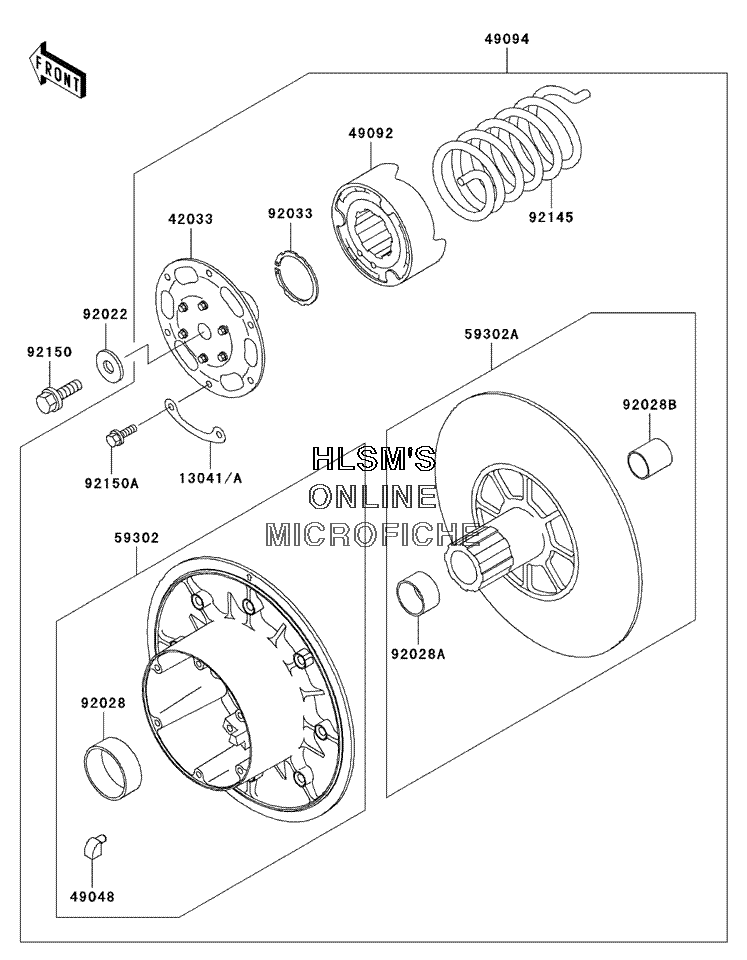

DRIVEN CONVERTER для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
1304113041-1084 BALANCER, T=0.8BALANCER, T=0.8
-
13041A13041-1085 BALANCER, T=1.0BALANCER, T=1.0
-
4203342033-1124 COUPLING-ASSYCOUPLING-ASSY
-
4904849048-1057 SHOESHOE
-
4909249092-1064 RAMPRAMP
-
4909449094-1075 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5930259302-1086 SHEAVE-COMPSHEAVE-COMP
-
59302A59302-1087 SHEAVE-COMP, MOVABLESHEAVE-COMP, MOVABLE
-
9202292022-1982 WASHER, 12.5X32X3.2WASHER, 12.5X32X3.2
-
9202892028-1512 BUSHING, 50X55X20BUSHING, 50X55X20
-
92028A92028-1513 BUSHING, 32X36X20BUSHING, 32X36X20
-
92028B92028-1514 BUSHING, 25X28X30BUSHING, 25X28X30
-
9203392033-1241 RING-SNAPRING-SNAP
-
9214592145-1350 SPRING, DRIVEN CONVERTERSPRING, DRIVEN CONVERTER
-
9215092150-1009 BOLT, 12X35BOLT, 12X35
-
92150A92150-1014 BOLT, 6X20BOLT, 6X20
