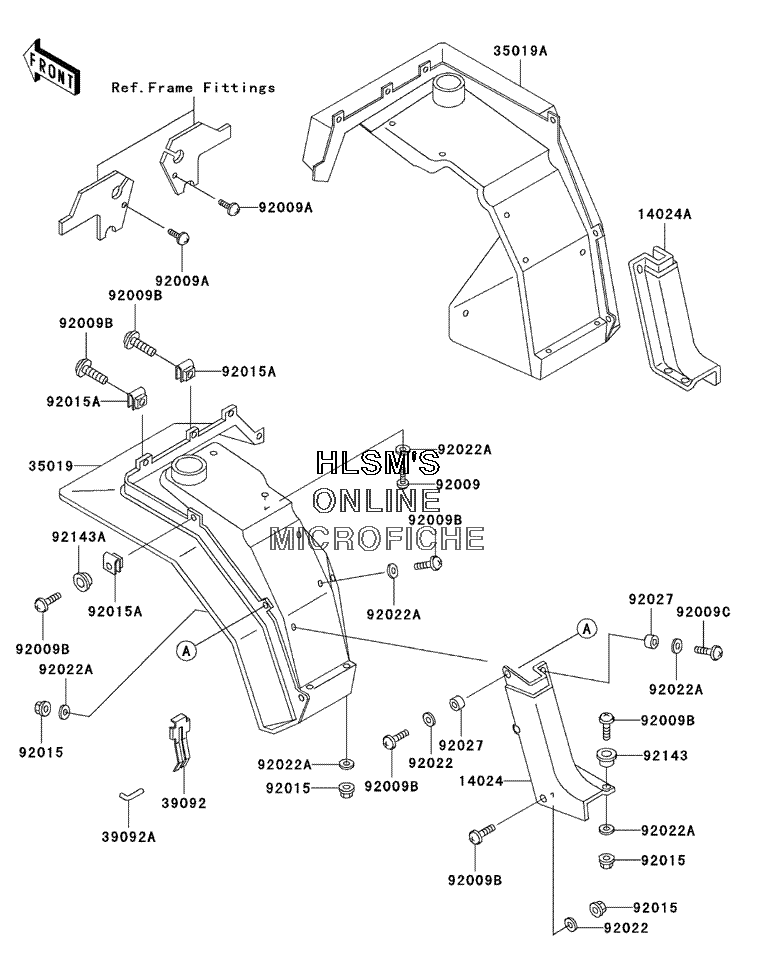

FENDER - FRONT для Kawasaki MULE 2510 Diesel (KAF950-A2) - 2001 года выпуска
-
№АртикулНазвание
-
1402414024-1793 COVER (LEFT)COVER (LEFT)
-
14024A14024-1794 COVER (RIGHT)COVER (RIGHT)
-
3501935019-1246 FLAP, FRONT (LEFT)FLAP, FRONT (LEFT)
-
35019A35019-1247 FLAP, FRONT (RIGHT)FLAP, FRONT (RIGHT)
-
3909239092-1055 PIN-HAIRPIN-HAIR
-
39092A39092-1056 PIN-HAIRPIN-HAIR
-
9200992009-1166 SCREWSCREW
-
92009A92009-1181 SCREW, 6X18 (BLACK)SCREW, 6X18 (BLACK)
-
92009B92009-1256 SCREW, 6X22 (BLACK)SCREW, 6X22 (BLACK)
-
92009C92009-1465 SCREW, 6X25SCREW, 6X25
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1344 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
92022A92022-1346 WASHER, 6.5X20X1.6 (BLACK)WASHER, 6.5X20X1.6 (BLACK)
-
9202792027-165 COLLAR, 6.5X8.5X7.5COLLAR, 6.5X8.5X7.5
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
